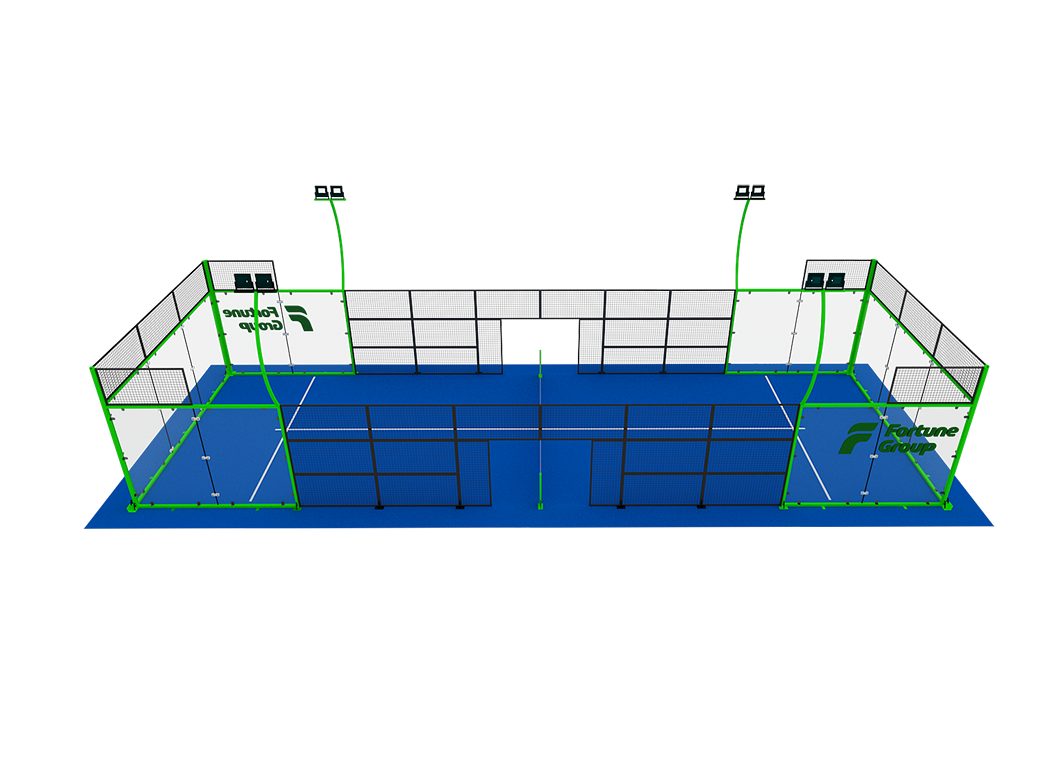

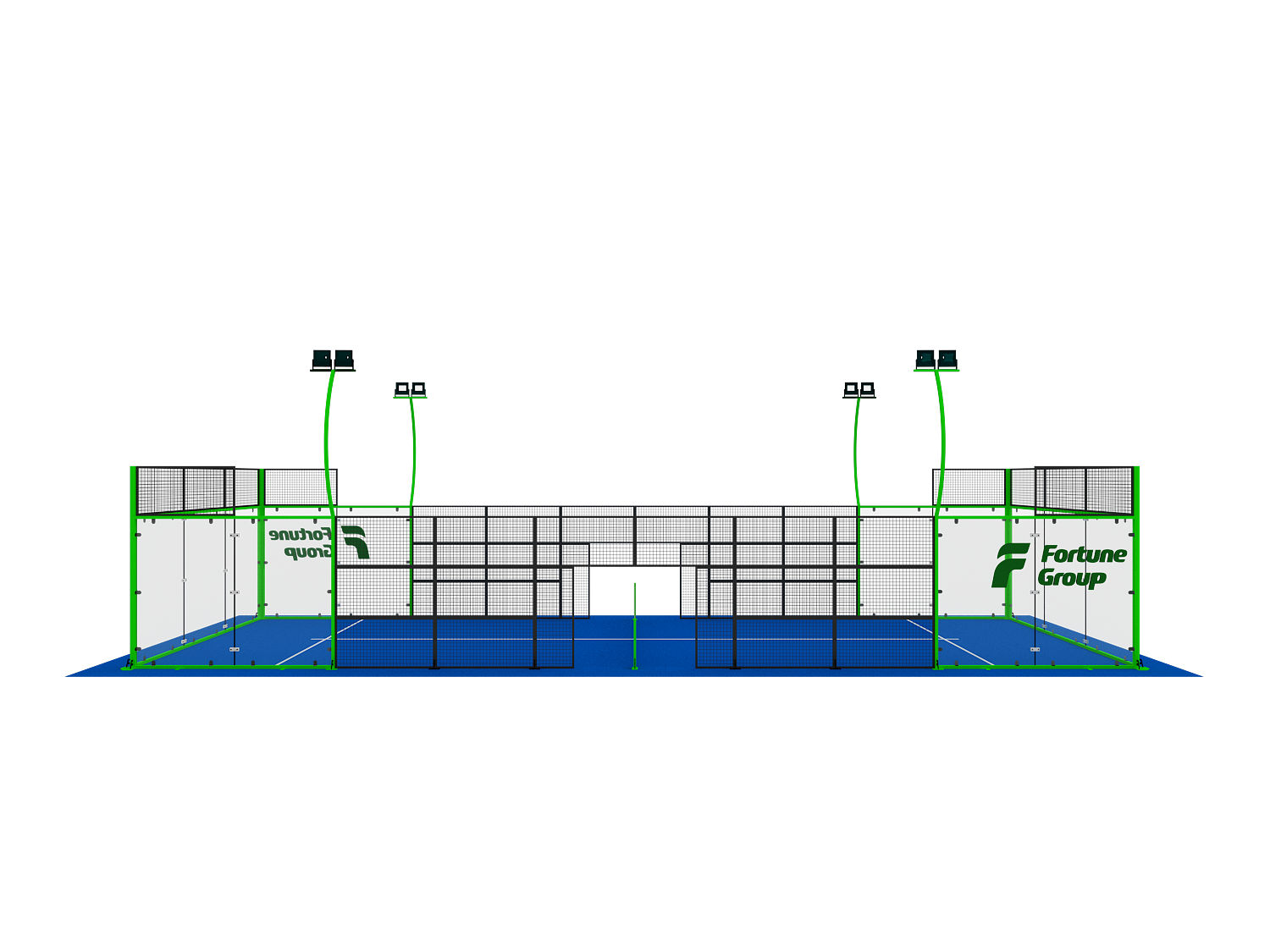

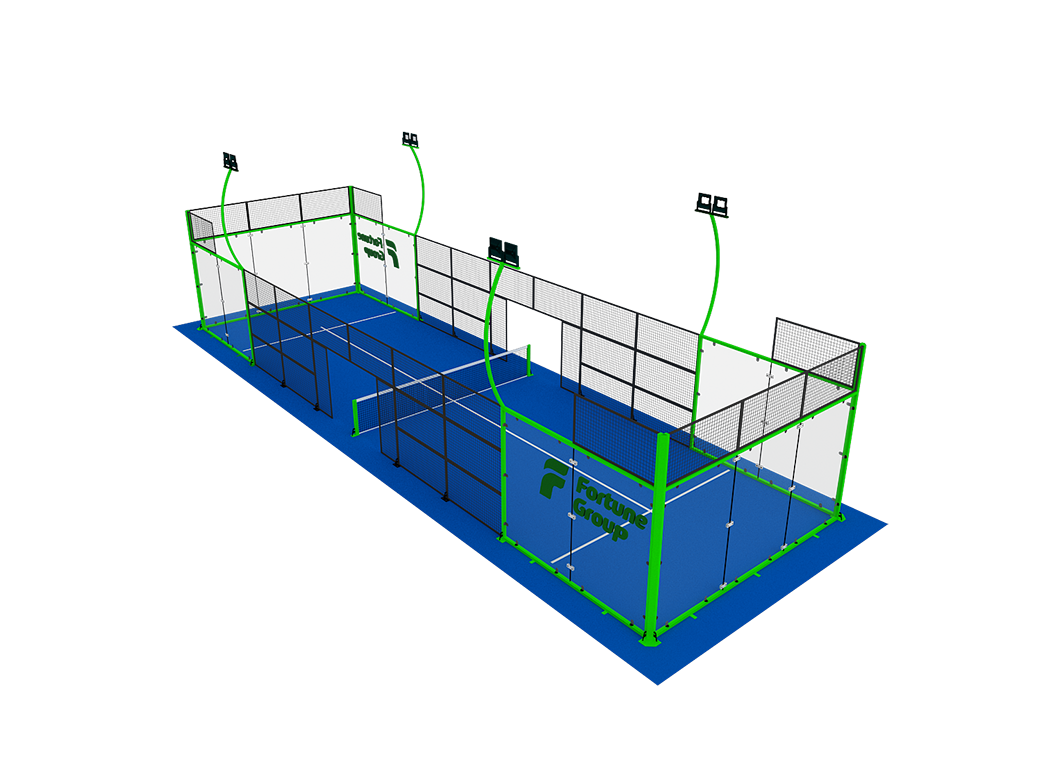

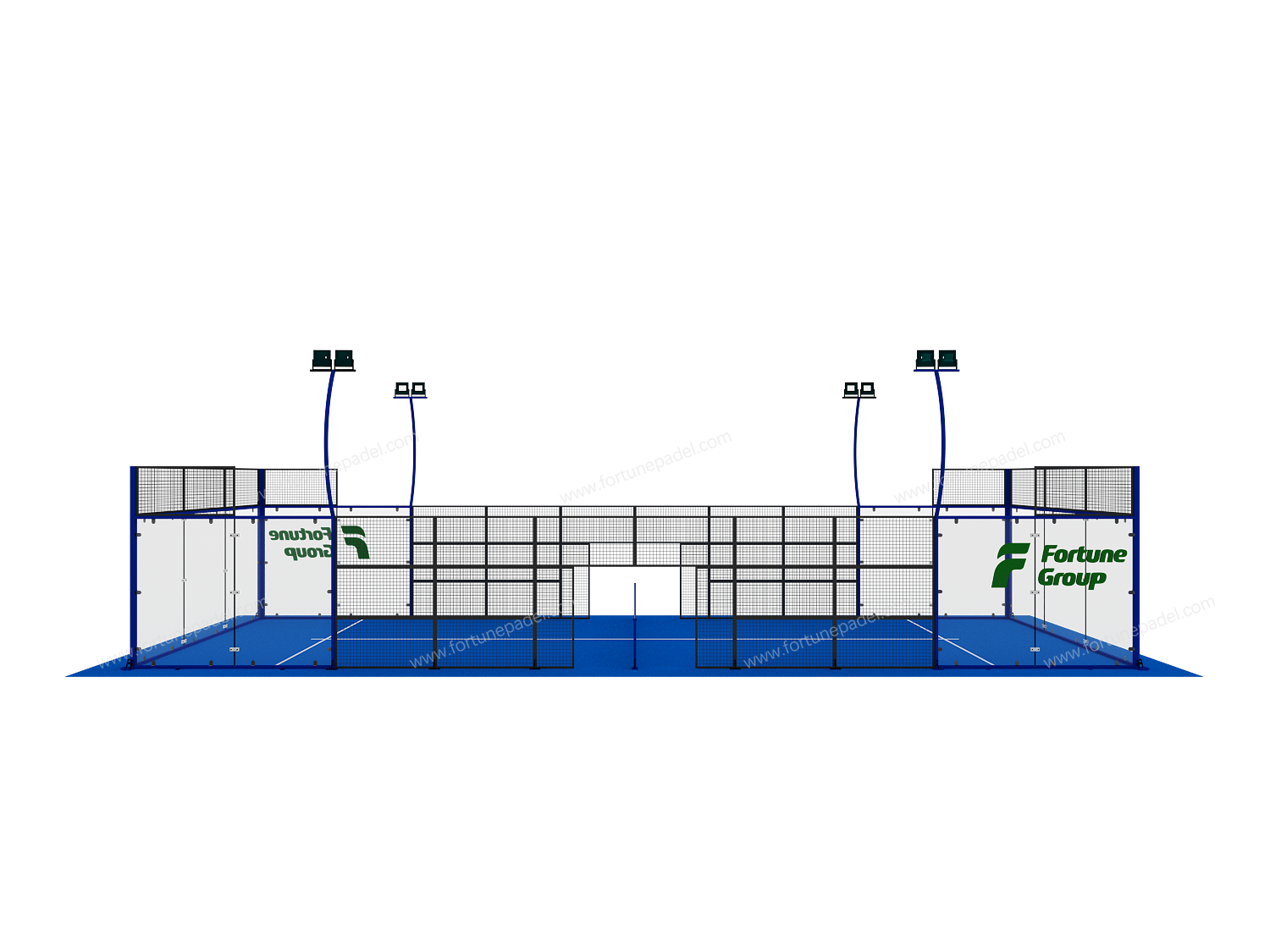

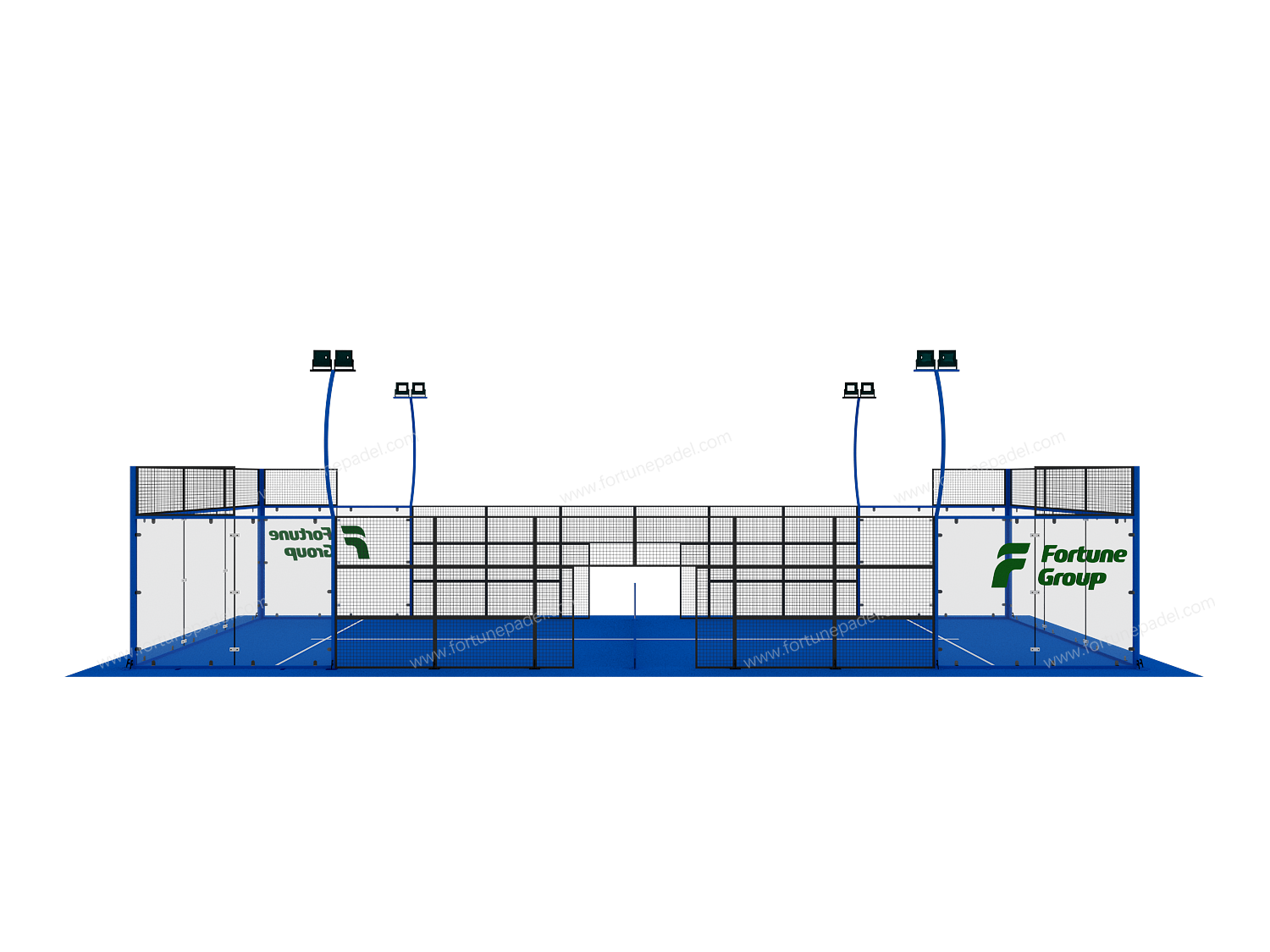

The FX-P04S is a compact, economical panoramic padel court designed for small spaces. Ideal for training, rooftops, or private use — affordable yet professional.
Customizable Lighting Poles: Featuring stylish and functional C-shaped poles with a base height of 6m, these are adaptable to meet specific competition lighting standards.
Energy-Efficient LED Lighting: Designed with an IP65 protection rating, eight 200W LED lights deliver energy savings and maintain a brightness of 300 Lux for enhanced night game visibility.
Q235 Steel Poles and Grids: A balanced mix of 4 double-pillars and 12 single-pillars in Q235 steel offers cost-effectiveness and structural stability.
EN-Certified Tempered Glass: Conforming to EN12150-2:2004 standards, the 12mm thick glass provides impact resistance and clear viewing.
EN-Certified High-Performance Artificial Turf: Made according to EN14041:2008 standards, with a density of 52,500 stitches/m², the KDK monofilament curled grass, combined with optimal quartz sand infill, enhances fiber protection and play elasticity.
Precision-Size Netting: Crafted to be 10m long, 0.88m high at the center, and 0.92m at the ends, with a tolerance of 0.005m, ensuring fair play during competitions.

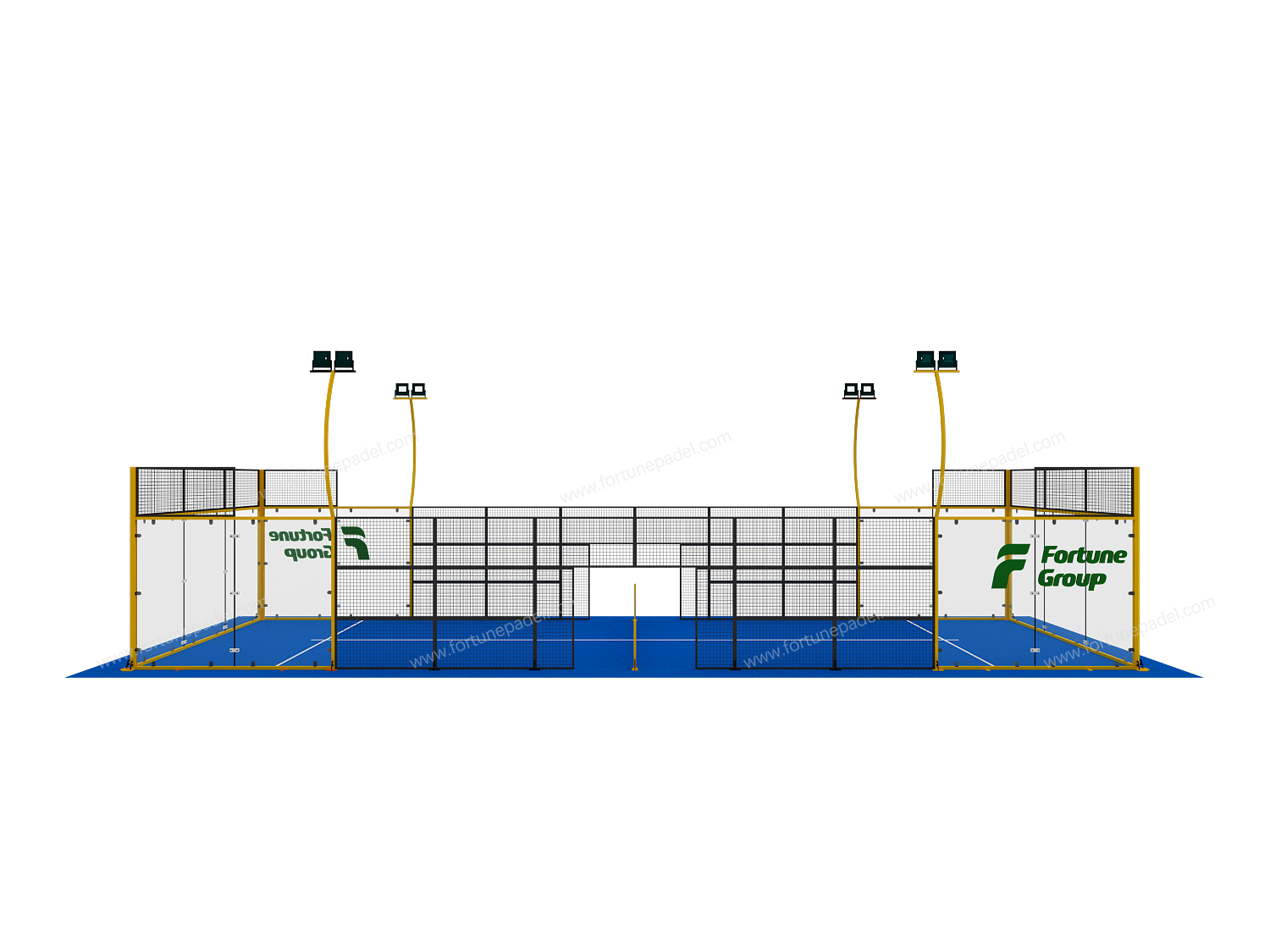

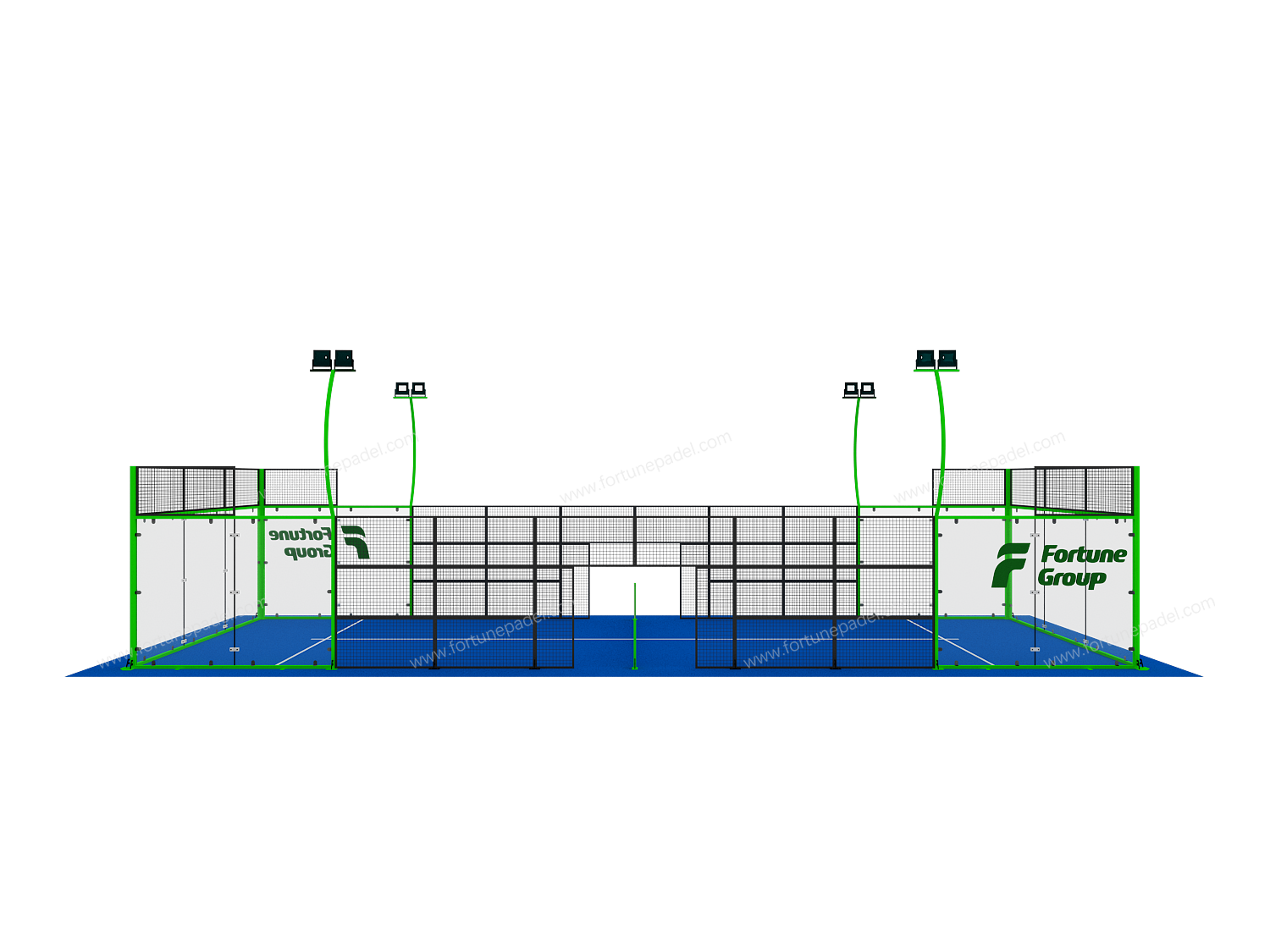

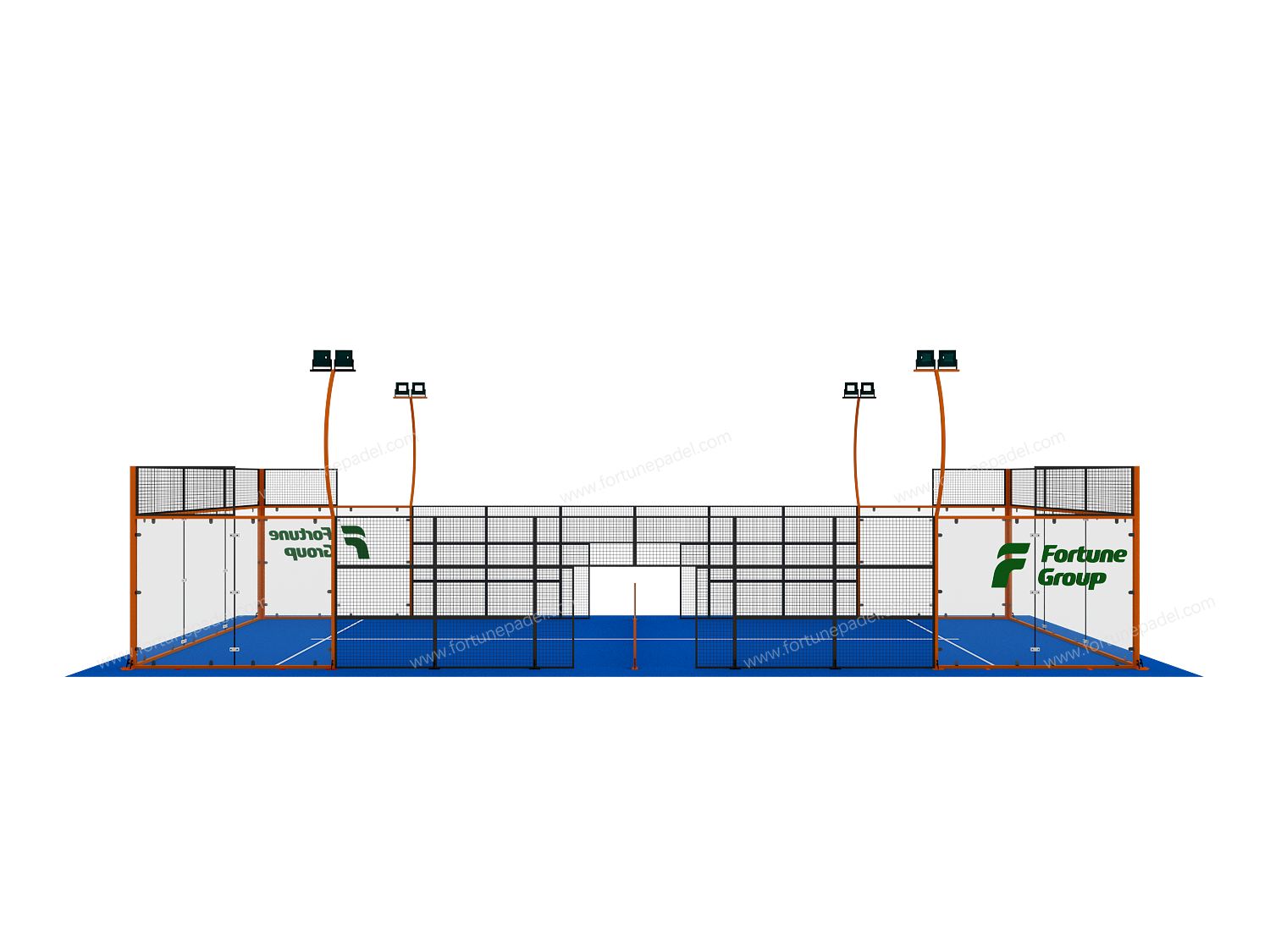

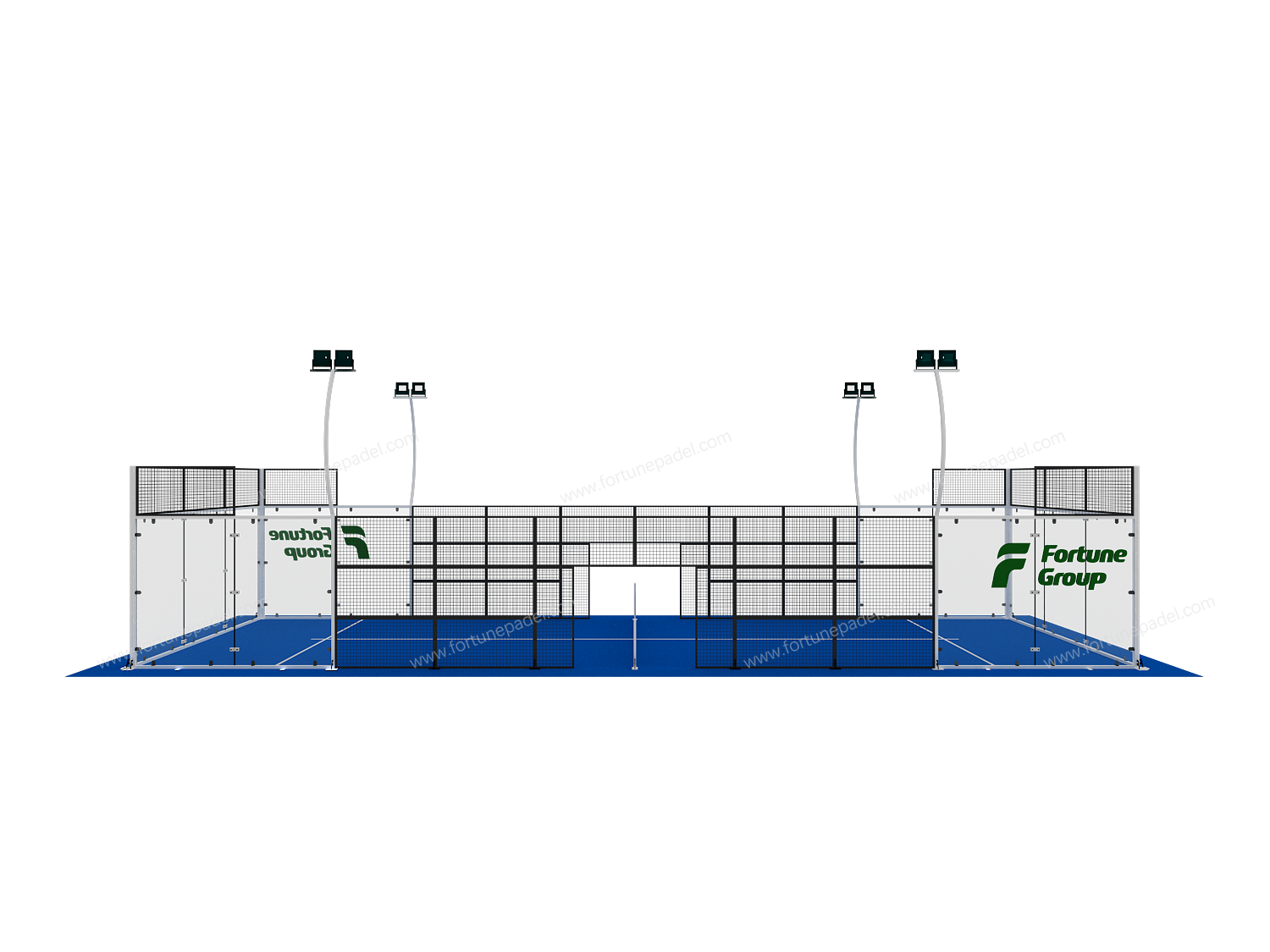

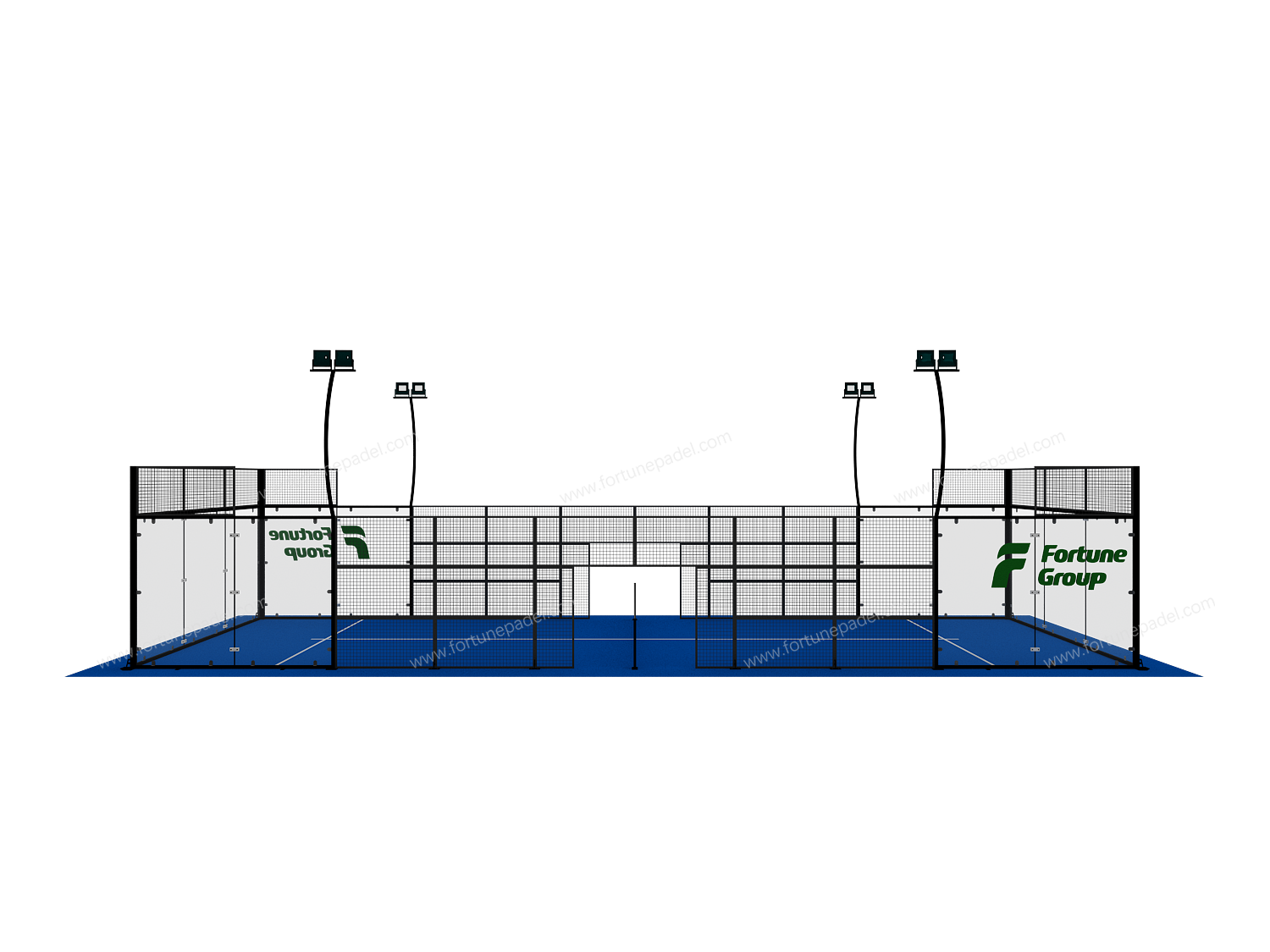

High-Quality Surface Treatment: Utilizing a zinc coating and electrostatic powder coating method, this treatment boosts corrosion resistance and offers a range of color options to suit individual tastes.
The FX-P04S Economy Panoramic Single Padel Court offers a cost-effective and space-efficient solution for individuals, training centers, and boutique sports venues.Its economical structure, 10mm tempered glass, and anti-rust steel framing deliver long-lasting performance at a budget-friendly price. Perfect for rooftops, residential areas, and indoor installations.
| LIGHT POST | 4 tubes with 3 meters high, fitting with trim and tube up to 6 meters, Z style and C style for option |
| LED LIGHT | 4 lighting towers with 8pcs LED light 200W/300Lux/IP65 |
| COMPONENTS | Stainless Steel 304 Rubber pad, Bolt Glass fitting, etc |
| PILLAR & MESH | PILLAR: Q235 steel square tube 4 double pillars 80x60mm making 140*140mm with 4m height and other 12pcs pillars with 60*80mm with 3m height FRAME: Q235 steel square tube 20*40*3mm MESH: mesh diameter 4mm, mesh distance 50*50mm |
| TEMPERED GLASS | Tempered glass with 12mm thickness with standard EN12150-2:2004 18pcs of 1996*3000mm |
| ARTIFICIAL GRASS | BACKING: PP+Net COATING: Latex STANDARD: En14041:2008 FILLER: Quartz sand ∅1.6mm-1.25mm, 10kgs/m², visible fiber 2mm-3mm KDK Monofilament curly grass. HEIGHT: 12mm DENSITY: 52500 stitches/m² GAUGE: 3/16” DTEX: 9000D |
| NET WITH POLE | NET MATERIAL: Synthetic fiber SIZE: 10 meters long and 0.88m high at the center, rising to 0.92 meters at the ends, with a maximum tolerance of 0.005 meters. |
How long does it take to build a Padel court?
Once the foundation work is completed, it usually takes 1 to 2 weeks to install a Padel court, depending on the court type, site readiness, and project complexity.
What are the basic foundation requirements for a Padel court?
The court foundation is crucial. It must be solid, level, and have good drainage. A typical outdoor court requires a concrete base of at least 20–25 cm thick, with a smooth and even surface. Proper groundwork is especially important for outdoor courts to prevent sinking or water accumulation.
Do you provide installation services?
Yes, we offer professional installation guidance. To ensure high-quality construction, we can send experienced engineers to your site to provide: Technical guidance Supervision of the installation process Support for key installation steps and final inspection Please note: Clients are responsible for the engineer’s travel, accommodation, meals, and visa costs. Alternatively, we can recommend a local installation team to assist you. Our goal is to ensure every court project is delivered smoothly and to the highest standard.
How much does it cost to build a Padel court?
The cost of a Padel court varies depending on several factors, including the court type (standard or panoramic), materials, customization needs, site preparation, and location. We recommend contacting us for a personalized quote.
How is a Padel court maintained?
Maintenance is relatively straightforward. Regular tasks include cleaning the artificial turf, removing debris and infill, checking the glass and metal structures, tightening screws, and ensuring proper drainage. We provide a detailed maintenance guide and optional maintenance services.
