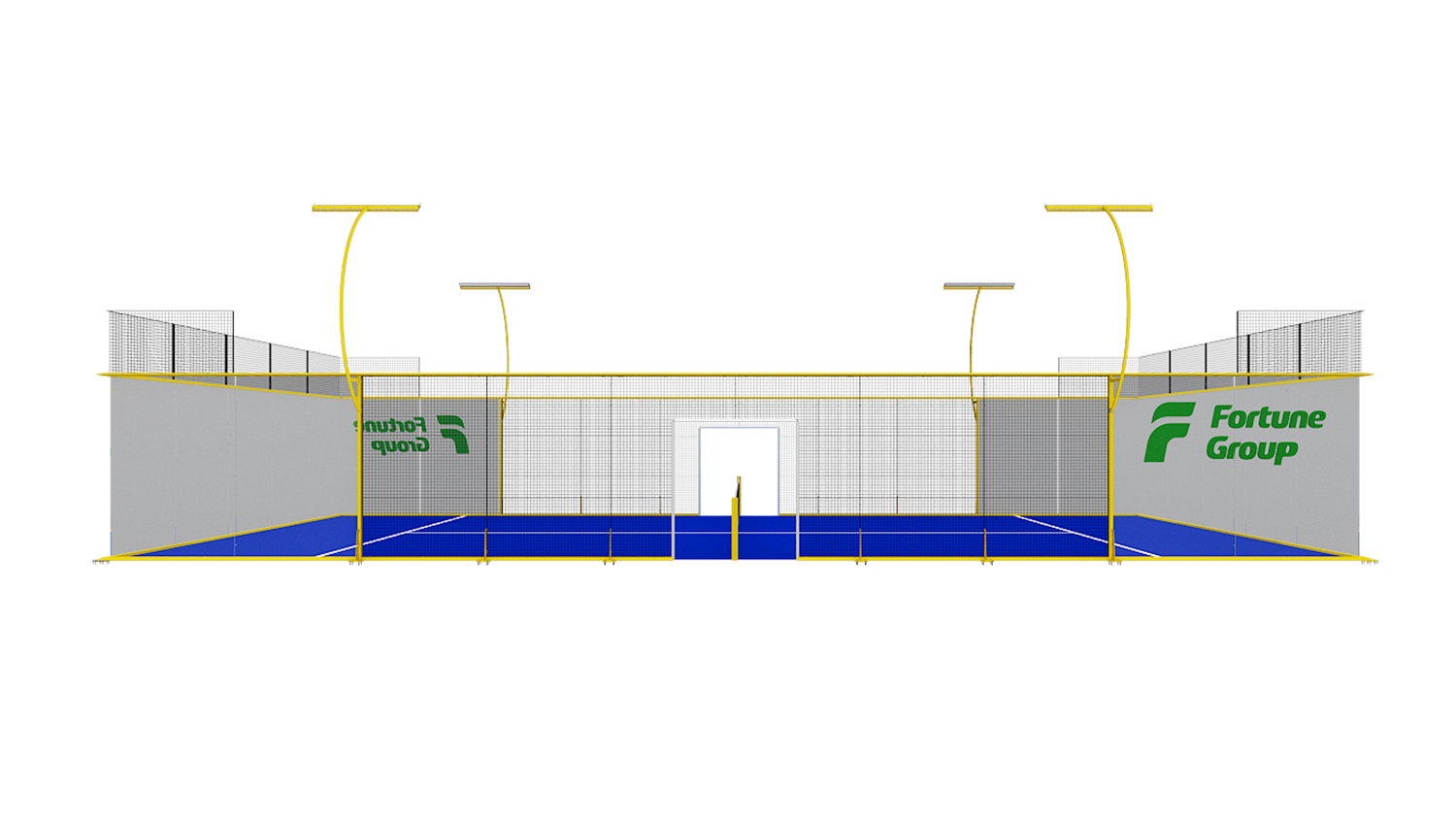

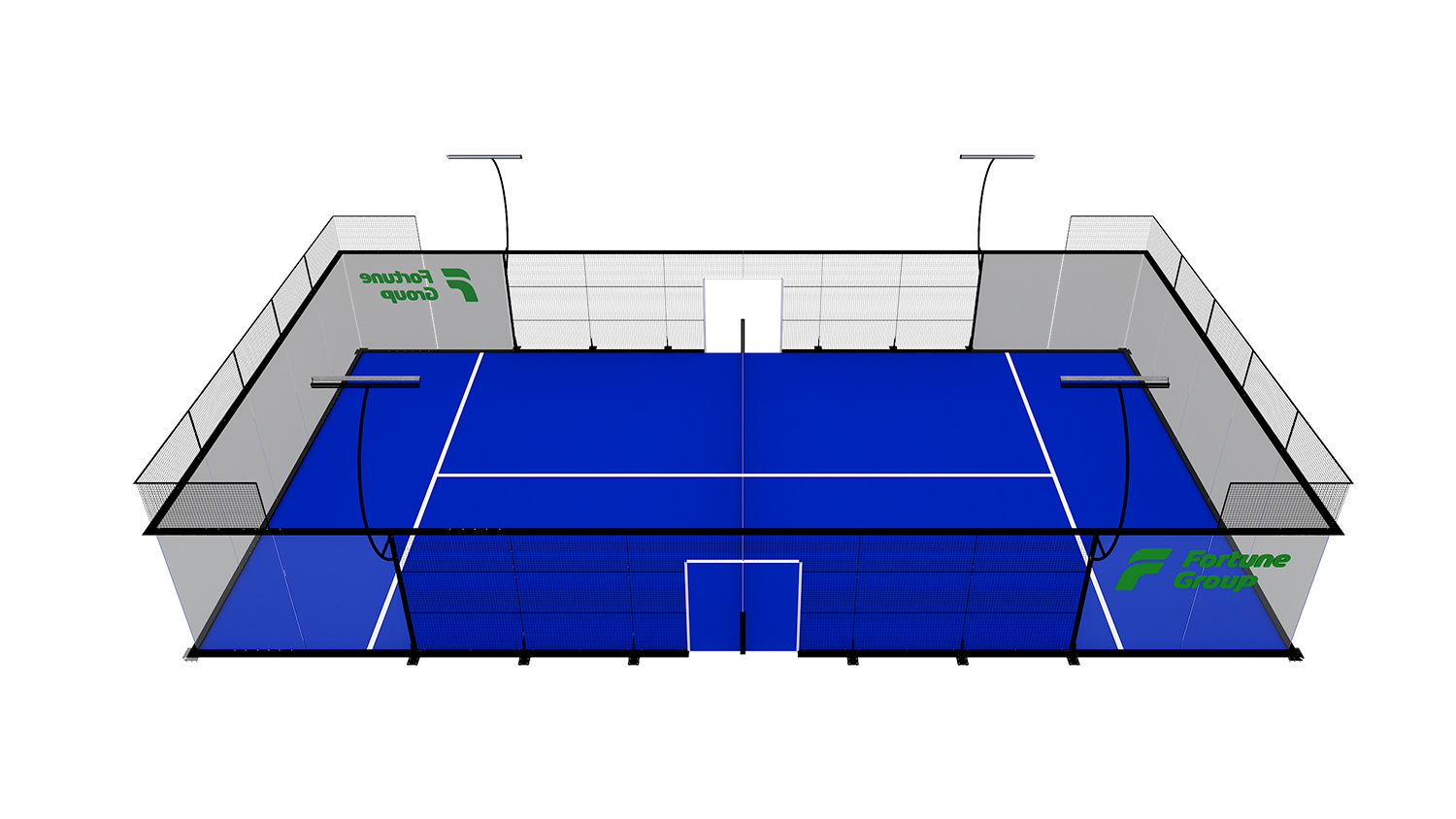

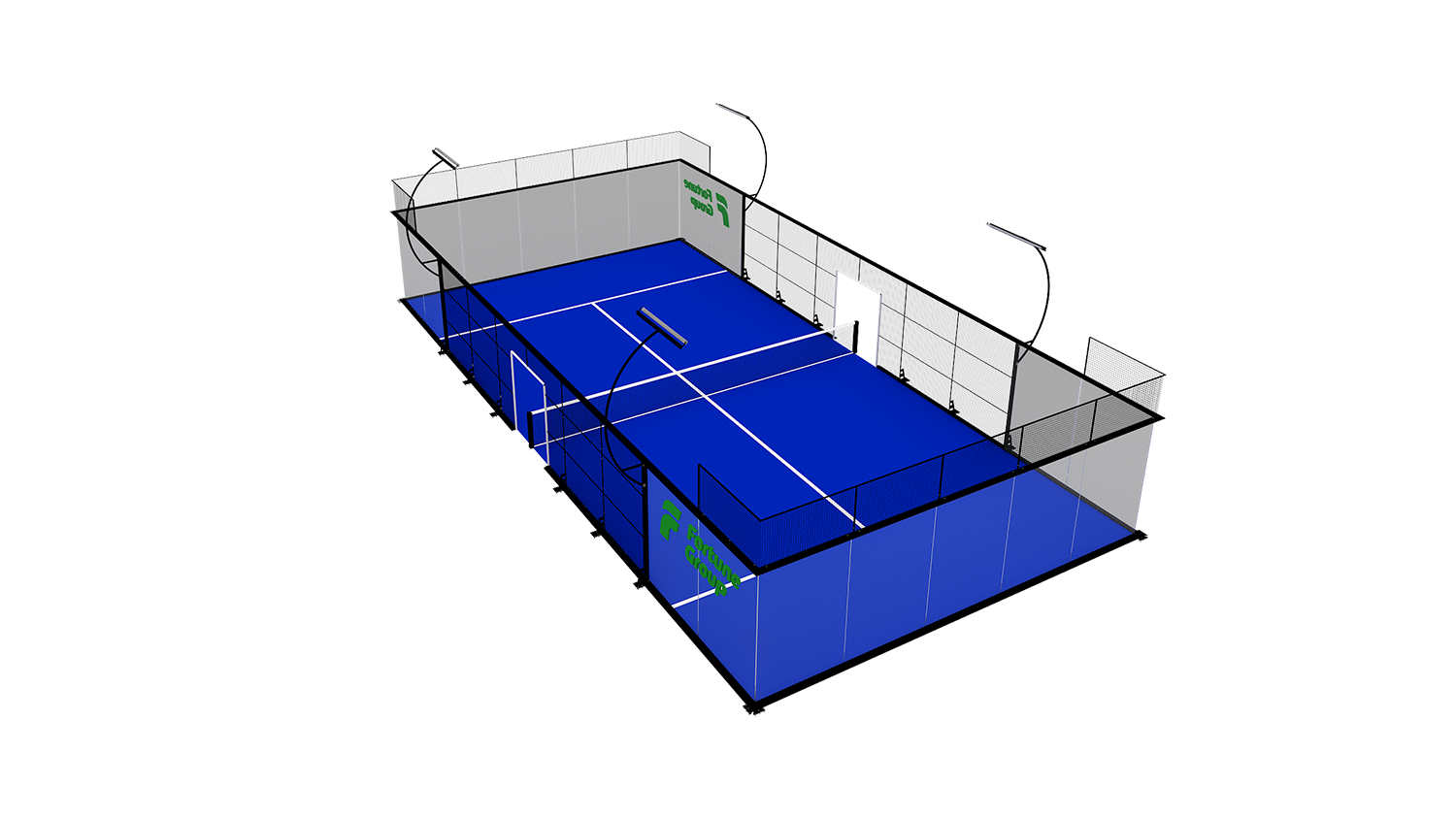

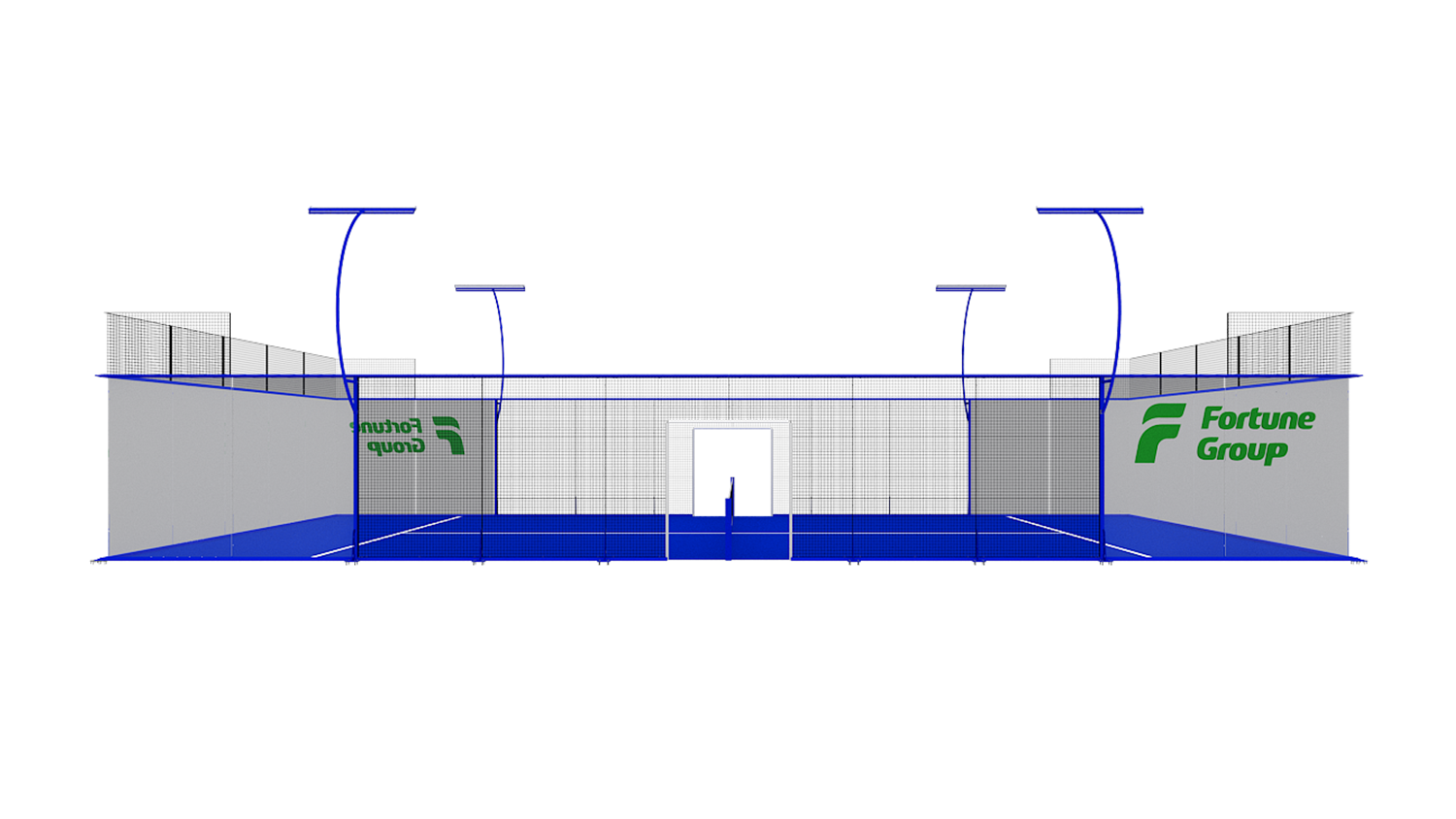

P03P Ultra Panoramic Padel Court offers a 360° unobstructed view, WPT-compliant height, 5mm Q235 steel frame, dual-mesh design, sleek aluminum beams, invisible glass connectors, and LED lighting for pro-level performance and premium aesthetics.
Versatile Lighting Poles: 4 tubes with 3 meters high, Fitting with trim and tube up to 6 meters,C style for option.
Optimized Structural Design: The open, cornerless layout significantly enhances the visible area, providing a clear and unobstructed view for spectators.
Energy-Saving LED Lighting: Led light:4 lighting towers with 5pcs each! Led light:250W/250Lux/IP65
Q235 Steel Structure Material: Frame:Q235 steel plate with size 2000*3000mm and thick-ness of 5mm.
EN-Certified Tempered Glass: Tempered glass with 12mm thickness with standardEN12150-2:2004 18pcs of 1996*3000mm
EN-Certified High-Performance Artificial Turf: PE KDK Monofilament Curly yarn Height:10mm Density:46200 stitches/m2 Gauge: 3/16'' Dtex:13500D Backing: PP+PP Coating: Pu Standard:En 14041:2018 Filler:Quartz sand ∅0.5mm-0.8mm,10kgs/m2 visible fiber 2mm-3mm
Precision-Size Netting: Measuring 10m in length, 0.88m high at the center, and 0.92m at the ends, with a maximum tolerance of 0.005m, ensuring perfect fairness during competition.

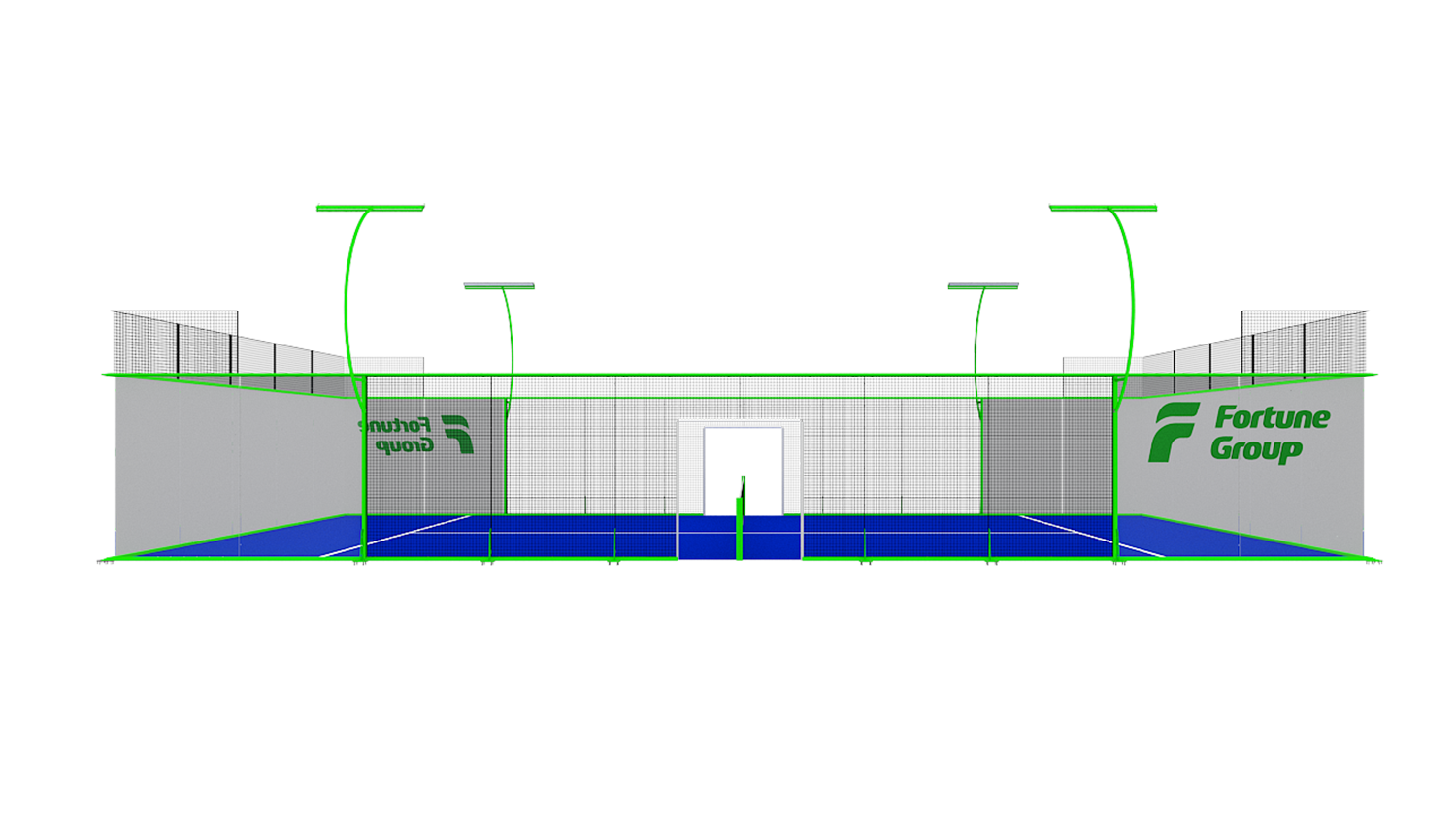

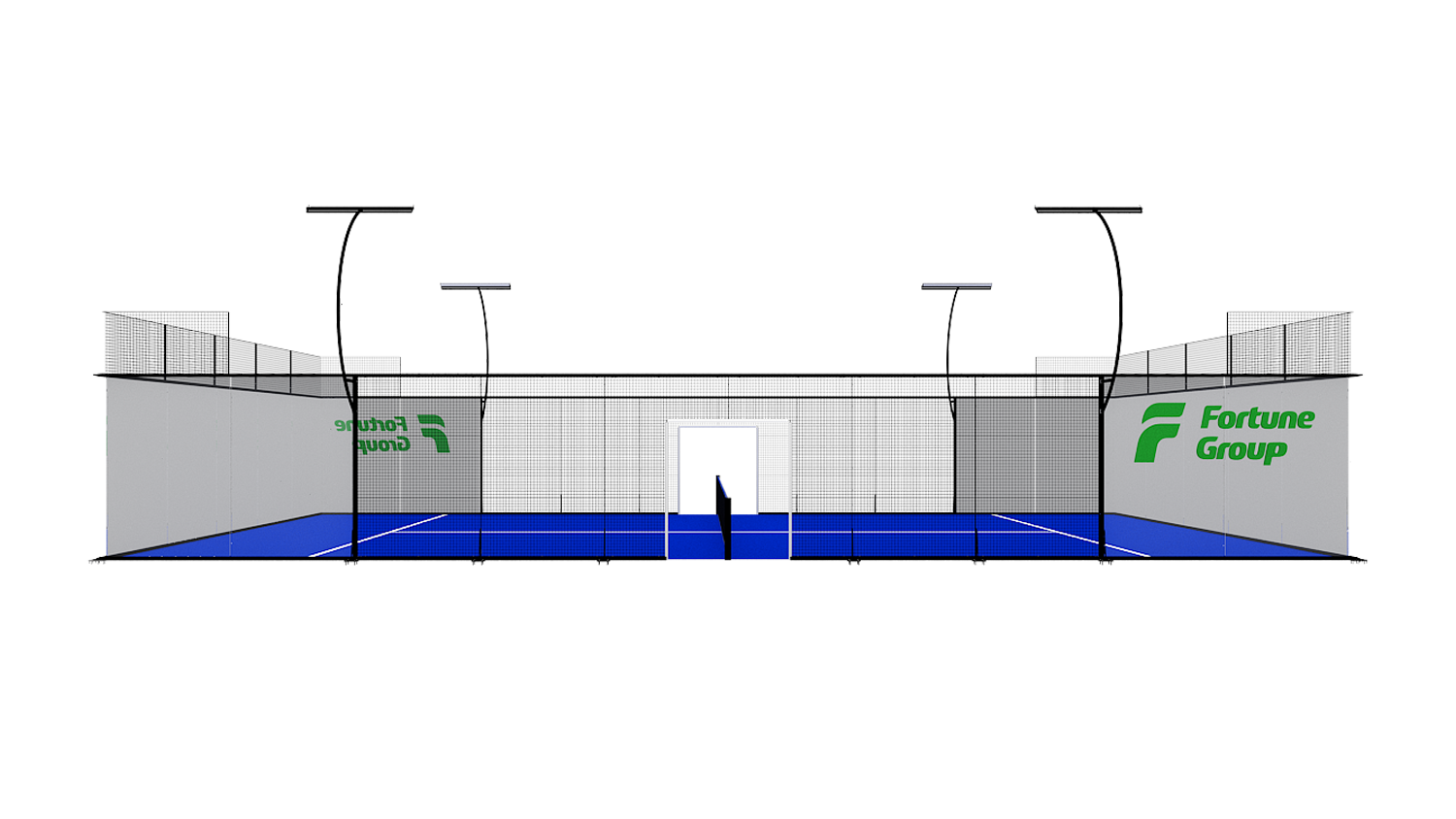

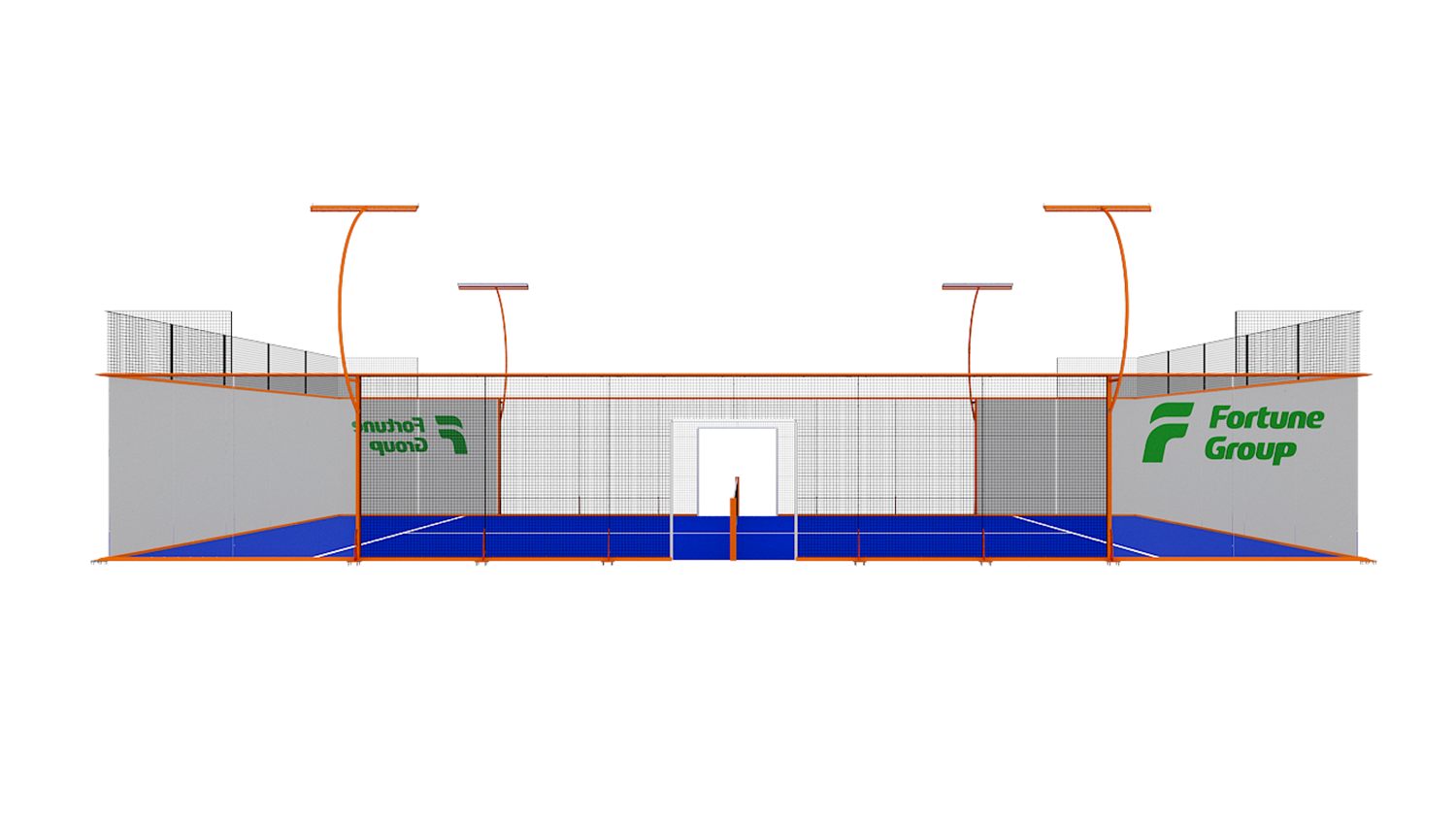

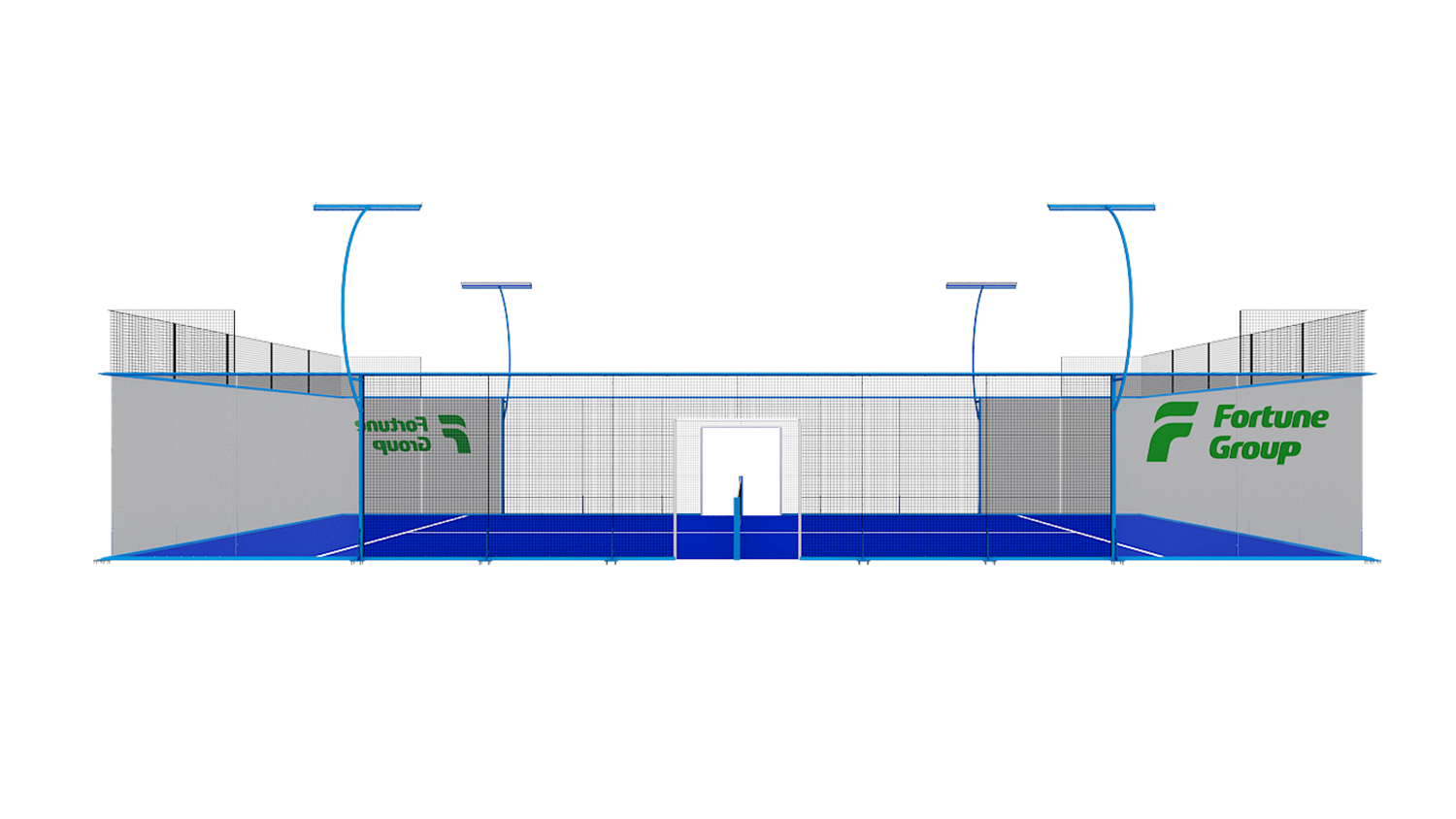

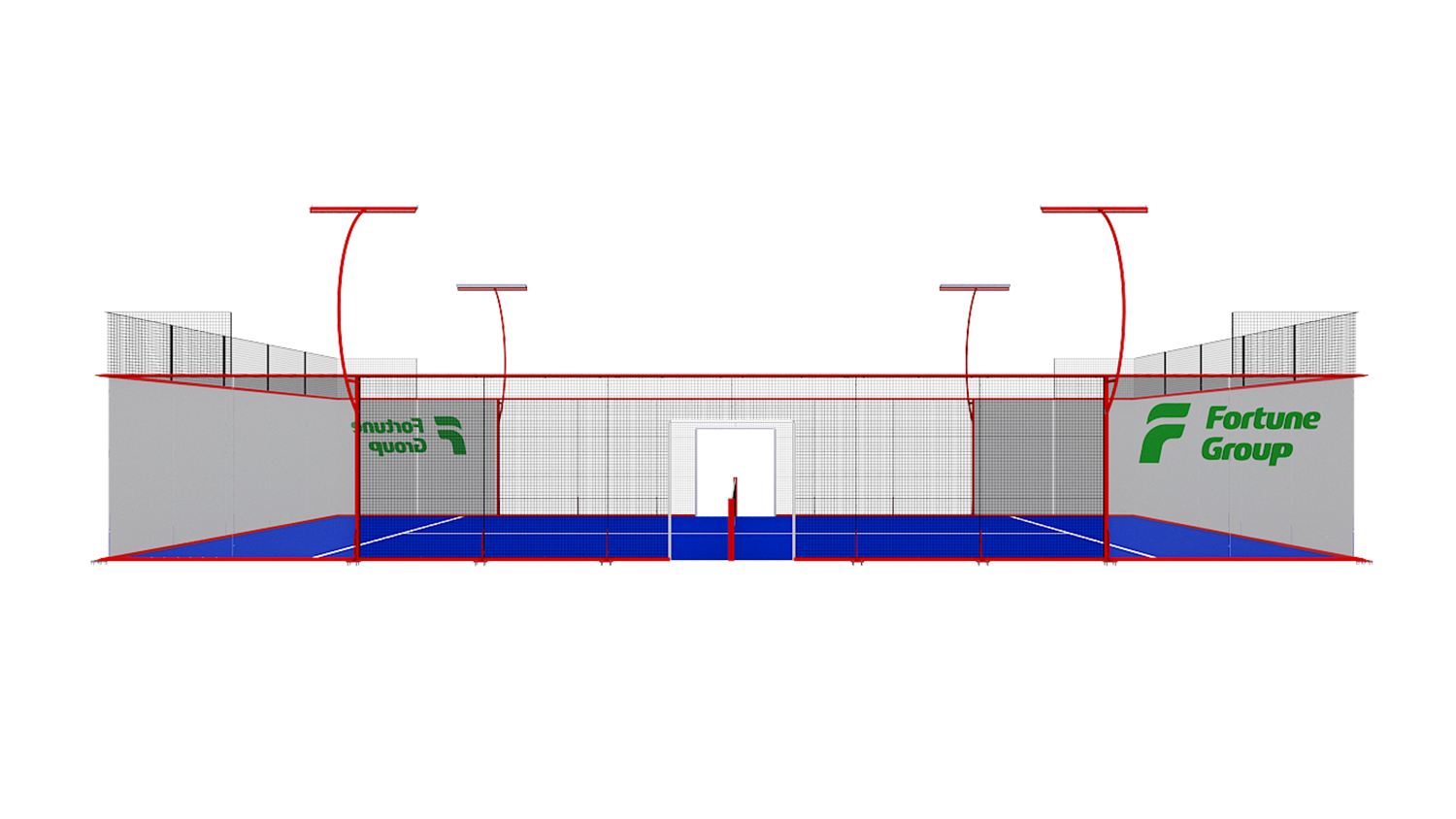

High-Quality Surface Treatment: Employing a zinc coating and electrostatic powder coating process, this treatment enhances corrosion resistance and offers a variety of custom color options to suit individual preferences.
The FX-P03P Ultra Panoramic Padel Court's revolutionary design concept, with its cornerless wide view, not only optimizes the spectator experience but also guarantees the durability and stability of the court through high-standard building materials. Its high-end positioning and outstanding performance are sure to satisfy the most discerning customers.
● Unmatched Visibility: Enjoy Ultra panoramic views with full-glass walls, perfect for spectators.
● Enhanced Gameplay: Smooth glass surfaces provide consistent ball rebound and minimal interference.
● Premium Aesthetics: A sleek, modern design elevates any sports facility.
● Durability & Strength – Built with high-quality tempered glass, ensuring long-term performance.
● Versatile Installation – Ideal for both indoor and outdoor padel courts.
| LIGHT POST | 4 tubes with 3 meters high, fitting with trim and tube up to 6 meters |
| LED LIGHT | 4 lighting towers with 5pcs LED light 250W/20Lux/IP65 |
| COMPONENTS | Stainless Steel 304 Rubber pad, Bolt Glass fitting, etc |
| PILLAR & MESH | PILLAR: Q235 steel square tube , 4pcs light pillars with 100*50*3mm ,no corner pillar and fence frame pillar.FRAME: Q235 steel plate with size 2000*3000mm and thickness of 5mm.MESH: mesh diameter 4mm(double mesh),mesh distance 50*50mm. |
| TEMPERED GLASS | Tempered glass with 12mm thickness with standard EN12150-2:2004 18pcs of 1996*3000mm |
| ARTIFICIAL GRASS | BACKING: PP+PP COATING: PU STANDARD: En14041:2008 FILLER: Quartz sand ∅0.5mm-0.8mm, 10kgs/m², visible fiber 2mm-3mm PE KDK Monofilament Curly yarn. HEIGHT: 10mm DENSITY: 46200 stitches/m² GAUGE: 3/16” DTEX: 13500D |
| NET WITH POLE | NET MATERIAL: Nylon Post:Q235 steel tube 100*50mm |
Fortune provides customized padle tennis court solutions to clients around the world. We offer a wide range of padel court models that can be customized to suit the specific needs of our clients. Explore our case studies to learn how we help a variety of clients achieve their goals.
Discover the success stories and enthusiastic endorsements from our esteemed partners. They share their firsthand experiences of how our innovative Padel Tennis solutions have not only reshaped the way they do business but also significantly boosted their market presence and customer satisfaction.
How long does it take to build a Padel court?
Once the foundation work is completed, it usually takes 1 to 2 weeks to install a Padel court, depending on the court type, site readiness, and project complexity.
What are the basic foundation requirements for a Padel court?
The court foundation is crucial. It must be solid, level, and have good drainage. A typical outdoor court requires a concrete base of at least 20–25 cm thick, with a smooth and even surface. Proper groundwork is especially important for outdoor courts to prevent sinking or water accumulation.
Do you provide installation services?
Yes, we offer professional installation guidance. To ensure high-quality construction, we can send experienced engineers to your site to provide: Technical guidance Supervision of the installation process Support for key installation steps and final inspection Please note: Clients are responsible for the engineer’s travel, accommodation, meals, and visa costs. Alternatively, we can recommend a local installation team to assist you. Our goal is to ensure every court project is delivered smoothly and to the highest standard.
How much does it cost to build a Padel court?
The cost of a Padel court varies depending on several factors, including the court type (standard or panoramic), materials, customization needs, site preparation, and location. We recommend contacting us for a personalized quote.
How is a Padel court maintained?
Maintenance is relatively straightforward. Regular tasks include cleaning the artificial turf, removing debris and infill, checking the glass and metal structures, tightening screws, and ensuring proper drainage. We provide a detailed maintenance guide and optional maintenance services.
Feature: Standard durable design
Ideal for: Schools, community centers
Highlights: Sturdy, long-lasting, and cost-effective
Feature: Classic panoramic design with corner posts
Ideal for: Popular in high-end competitions and clubs
Highlights: Top-selling model, perfect blend of solid structure and clear visibility
Feature: Innovative cornerless panoramic design; Compared to traditional padel courts, our panoramic padel court provides better visibility and is ideal for indoor and outdoor installations.
Ideal for: Professional events and training seeking ultimate experiences
Highlights: Unobstructed full view, comprehensive spectator experience while ensuring structural stability
Feature: Innovative cornerless panoramic design
Ideal for: Professional events and training seeking ultimate experiences
Highlights: Unobstructed full view, comprehensive spectator experience while ensuring structural stability
Feature: Fixed roof model adaptable to changing weather
Ideal for: Top-tier sports arenas and upscale sports clubs
Highlights: Technologically advanced, extremely flexible
Feature: Motorized retractable roof adaptable to changing weather
Ideal for: Top-tier sports arenas and upscale sports clubs
Highlights: Technologically advanced, extremely flexible
Feature: Specially designed for the sport of Padbol
Ideal for: Sports innovation projects, community activity centers
Highlights: Emerging sport, attracts users of all ages
Feature: Adapts to extreme weather and high-frequency use
Ideal for: Professional sports venues, training centers
Highlights: Enhanced stability, withstands strong winds and heavy snow
Feature: 10.8-meter high ceiling design
Ideal for: Multi-purpose sports and entertainment facilities
Highlights: Expansive view, versatile use
Feature: Innovative cornerless panoramic design
Ideal for: Installation in small spaces such as rooftops, courtyards, and unused commercial corners.
Highlights: Compact and cost-effective, the single-player Padel court is the perfect solution for training, limited spaces, and private use.
Feature: Immersive Match Experience: the Ultra panoramic court design offers an unobstructed view, creating a professional, tournament-level atmosphere. built to meet WPT height standards.
Ideal for: Professional events and premium clubs.
Highlights: The frame is made of 5mm thick Q235 steel plates combined with a double-mesh structure, offering strength far beyond standard models. It is capable of withstanding high-density, high-intensity professional competitions, ensuring maximum stability of the court.
