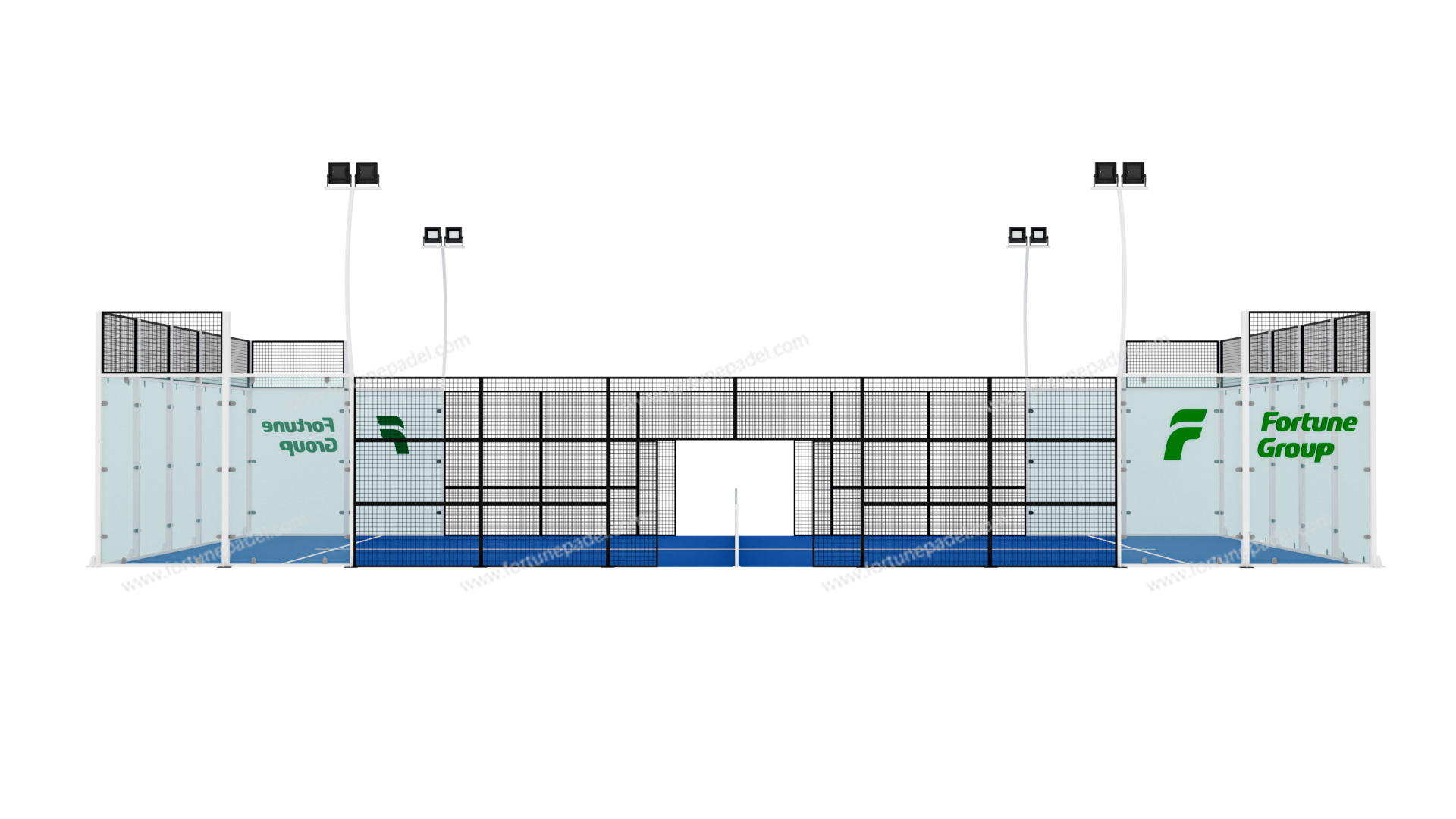

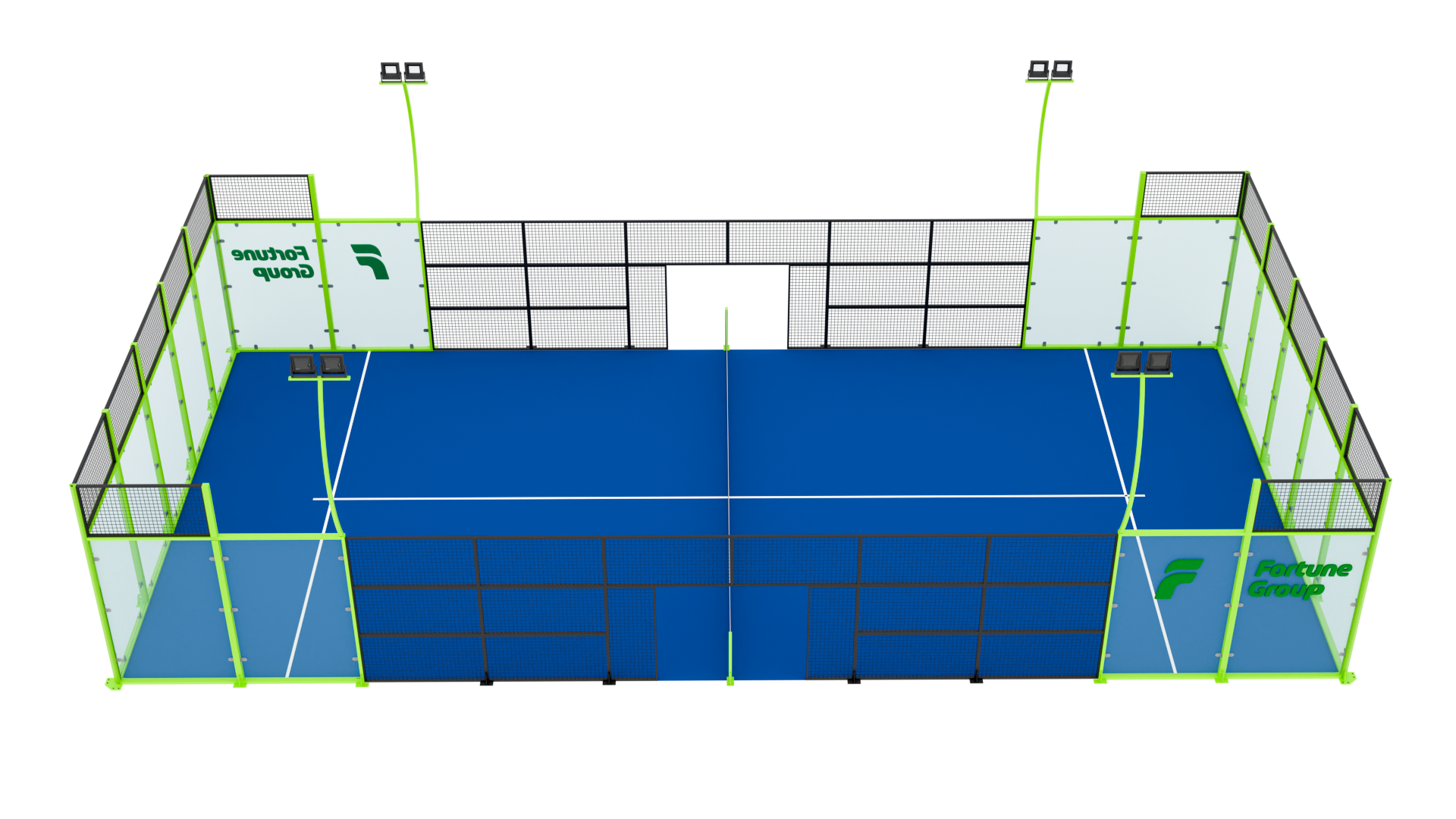

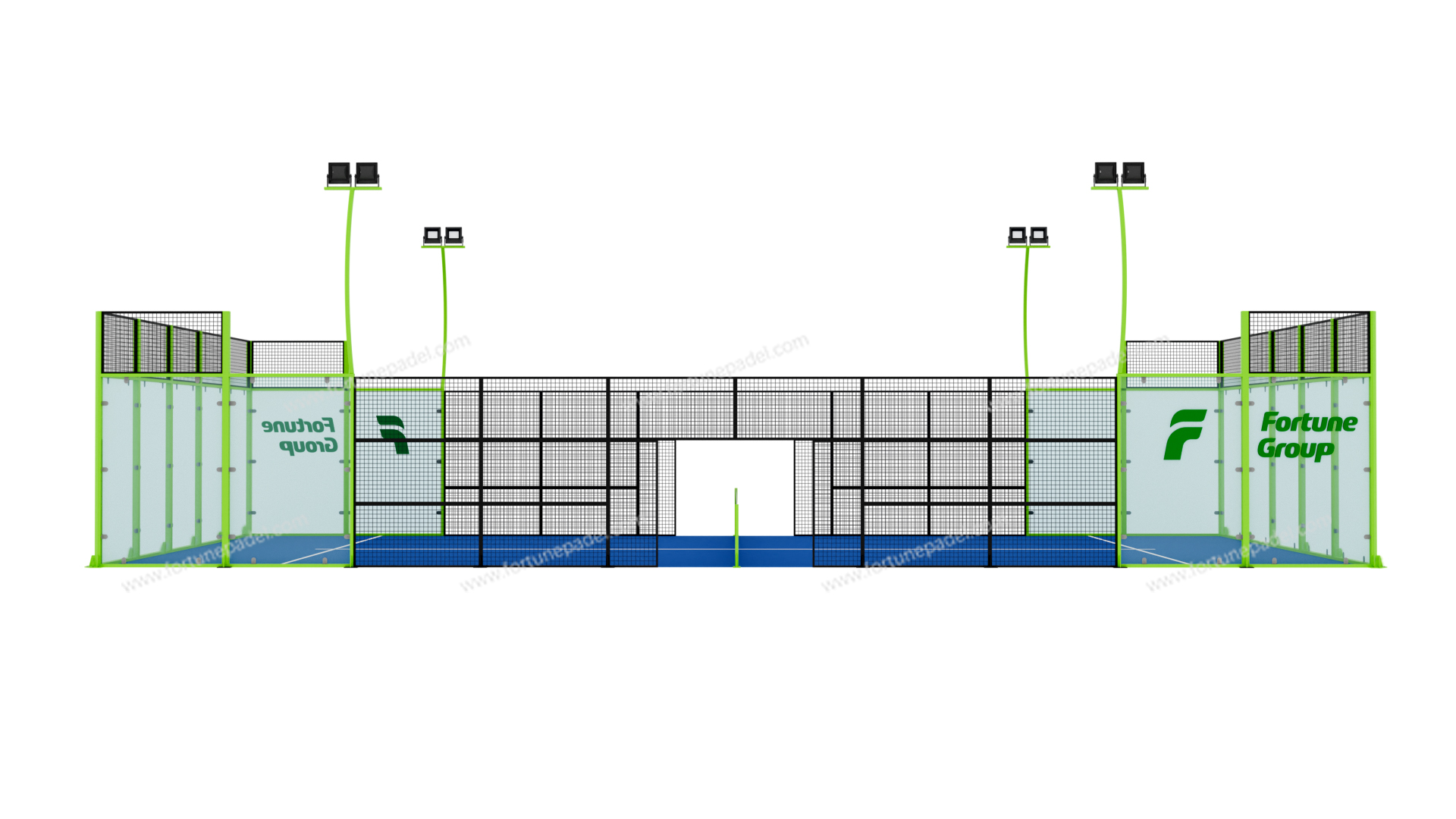

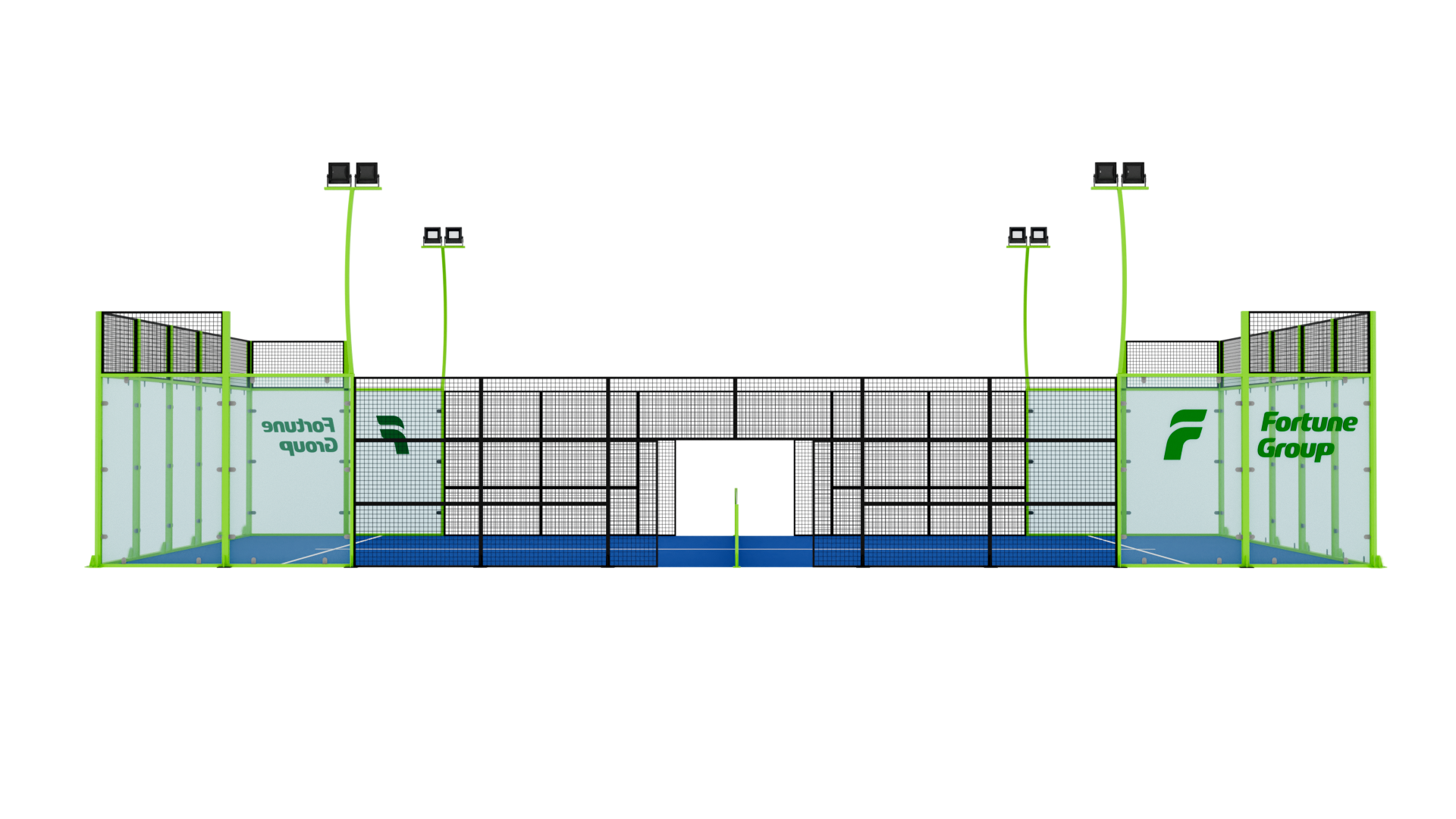

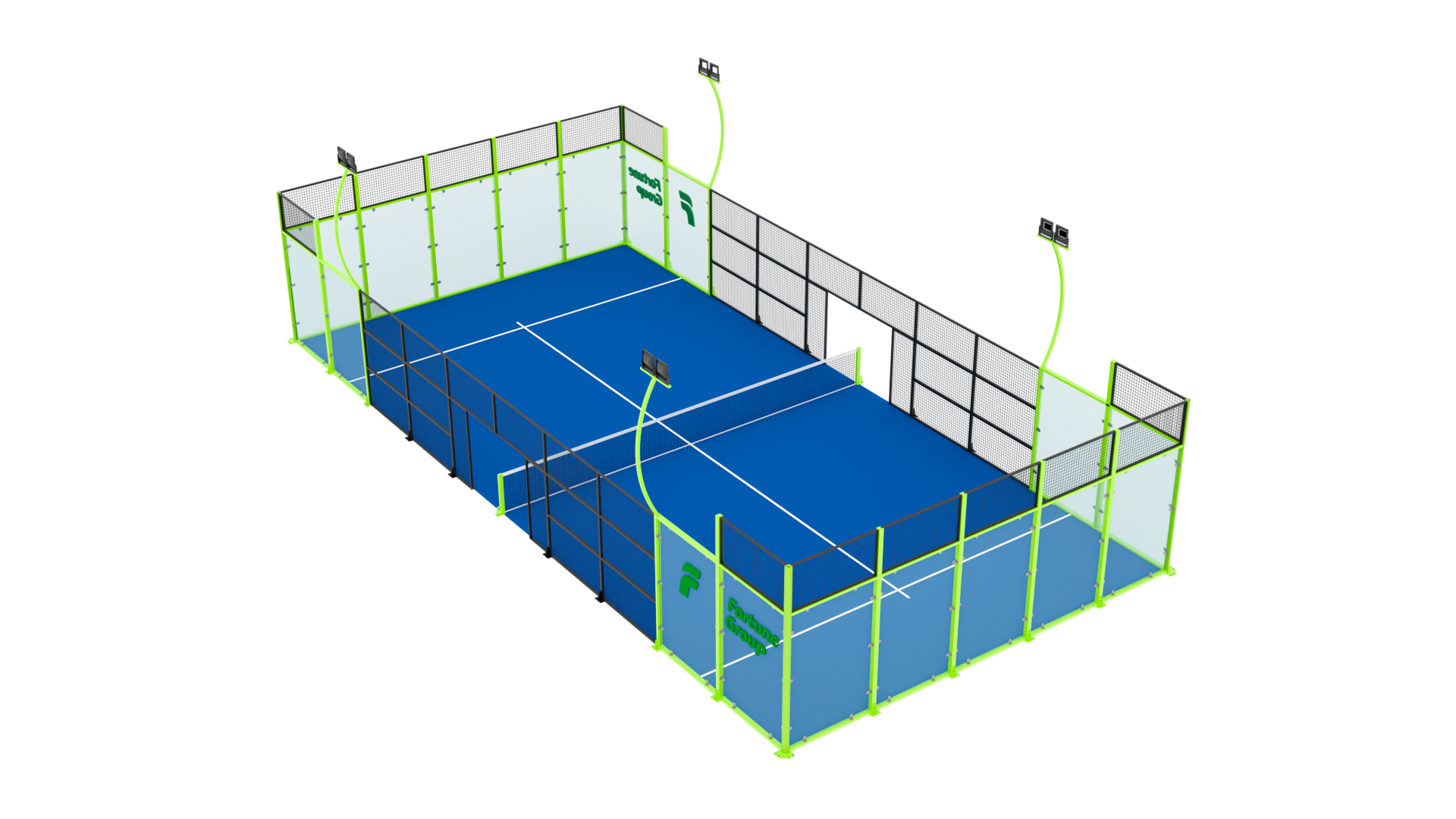

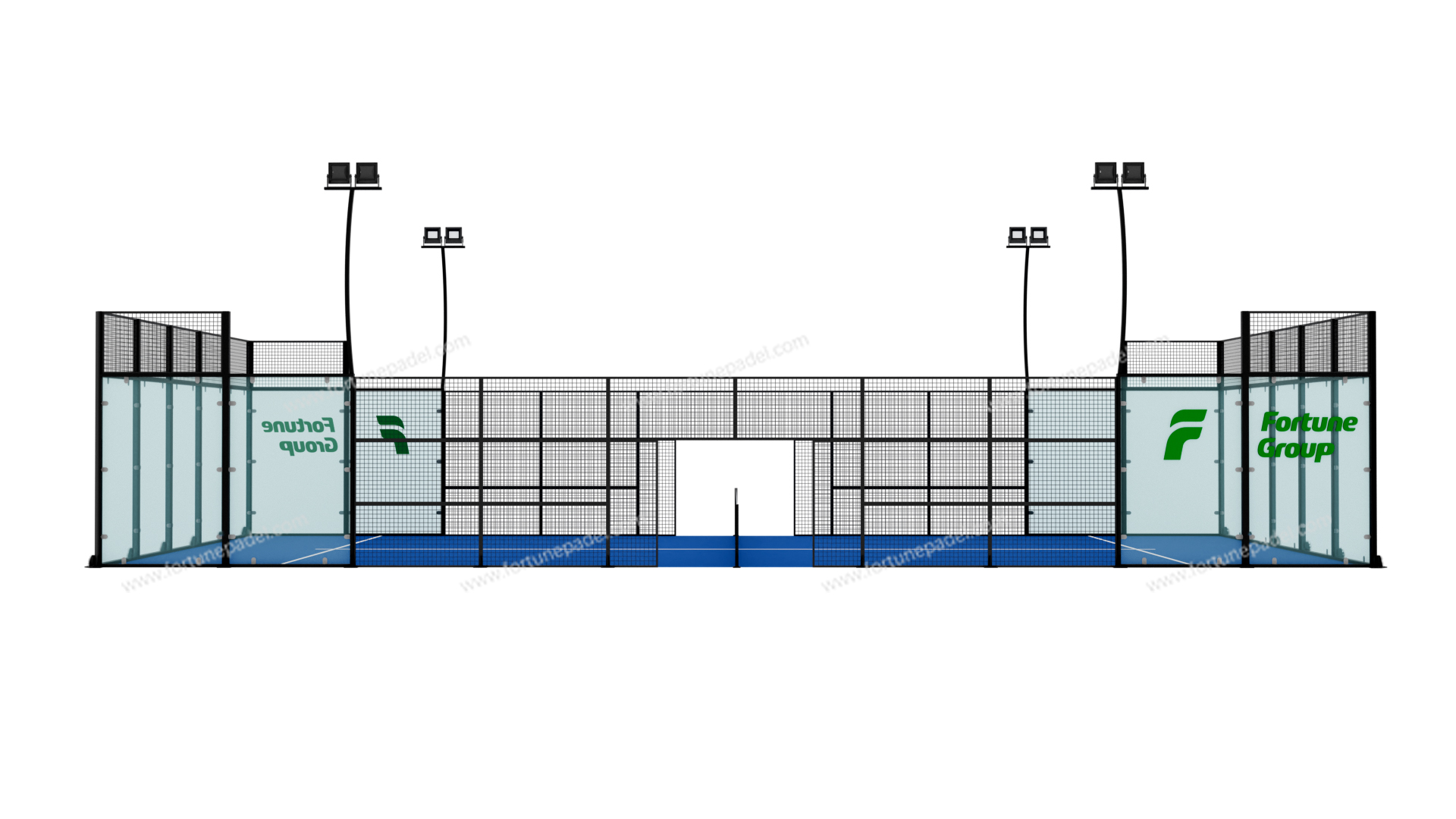

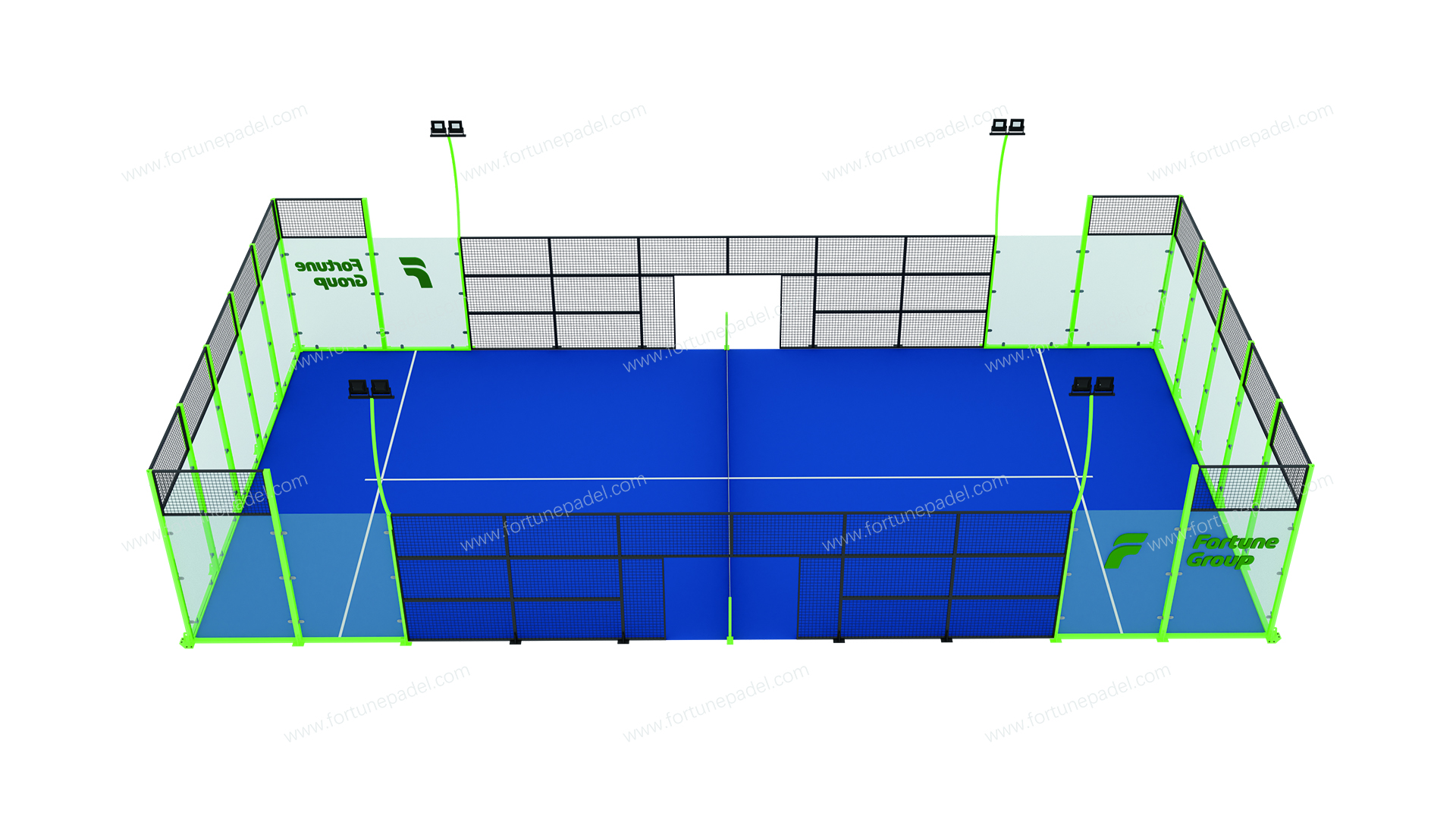

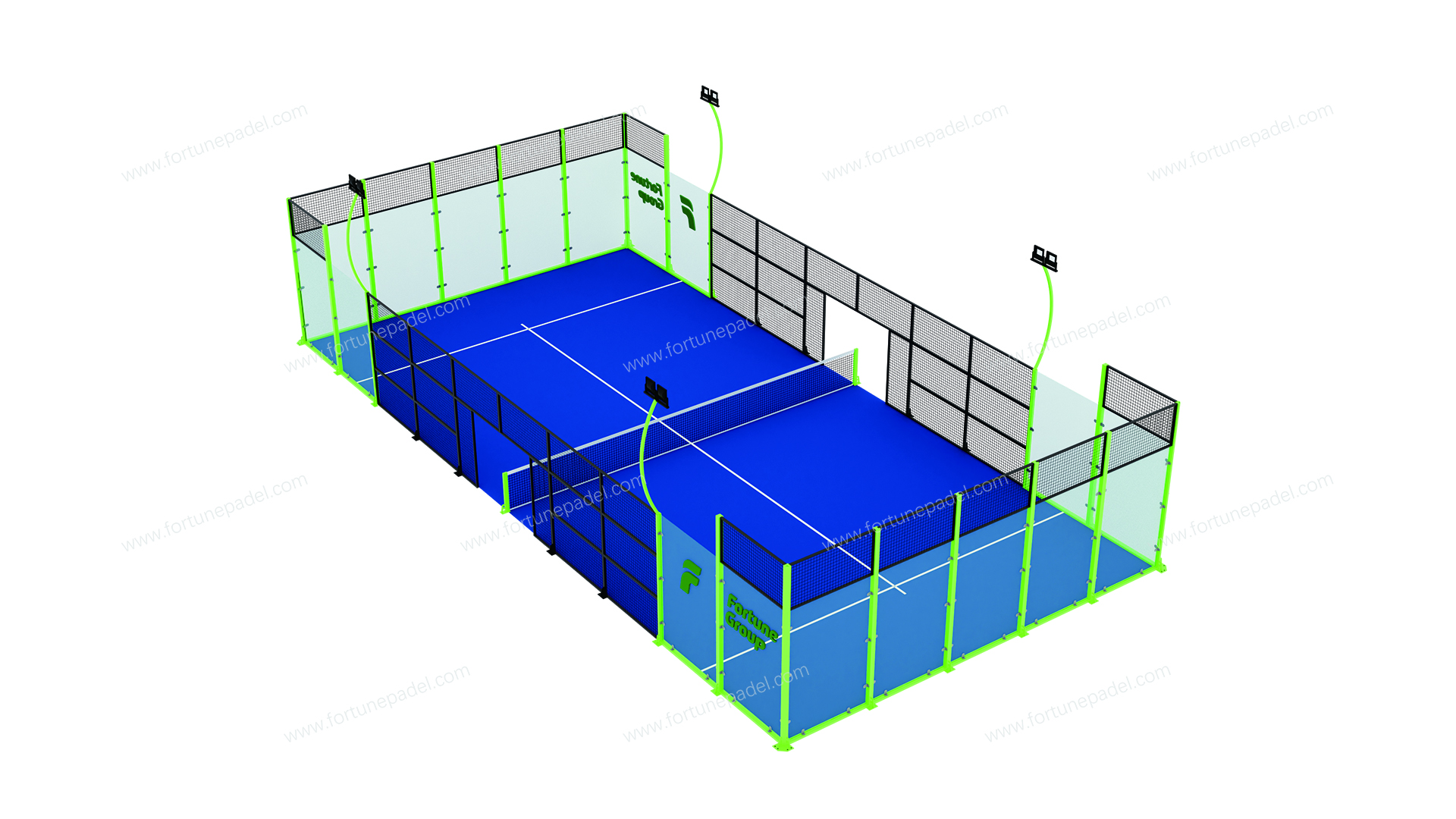

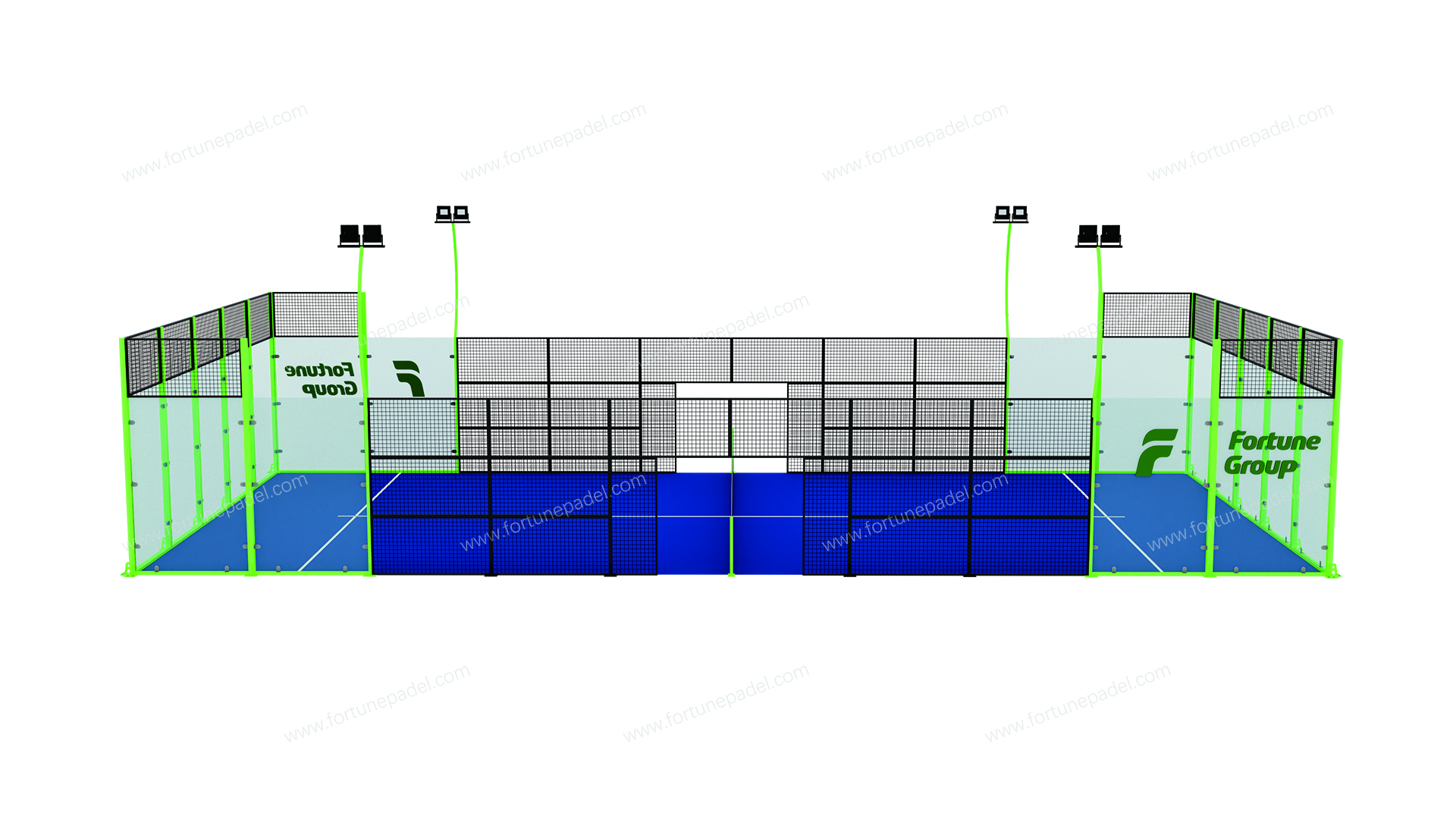

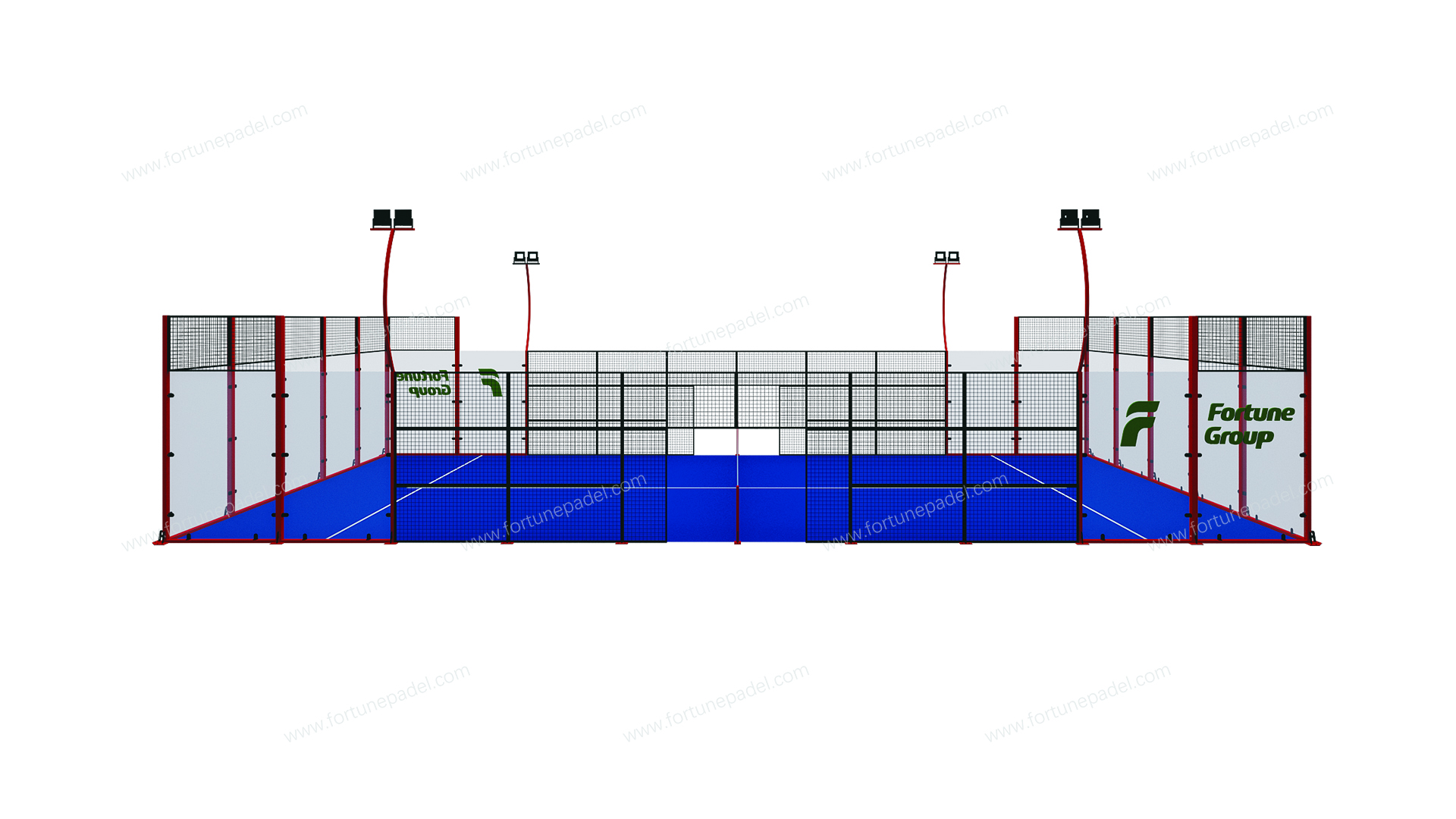

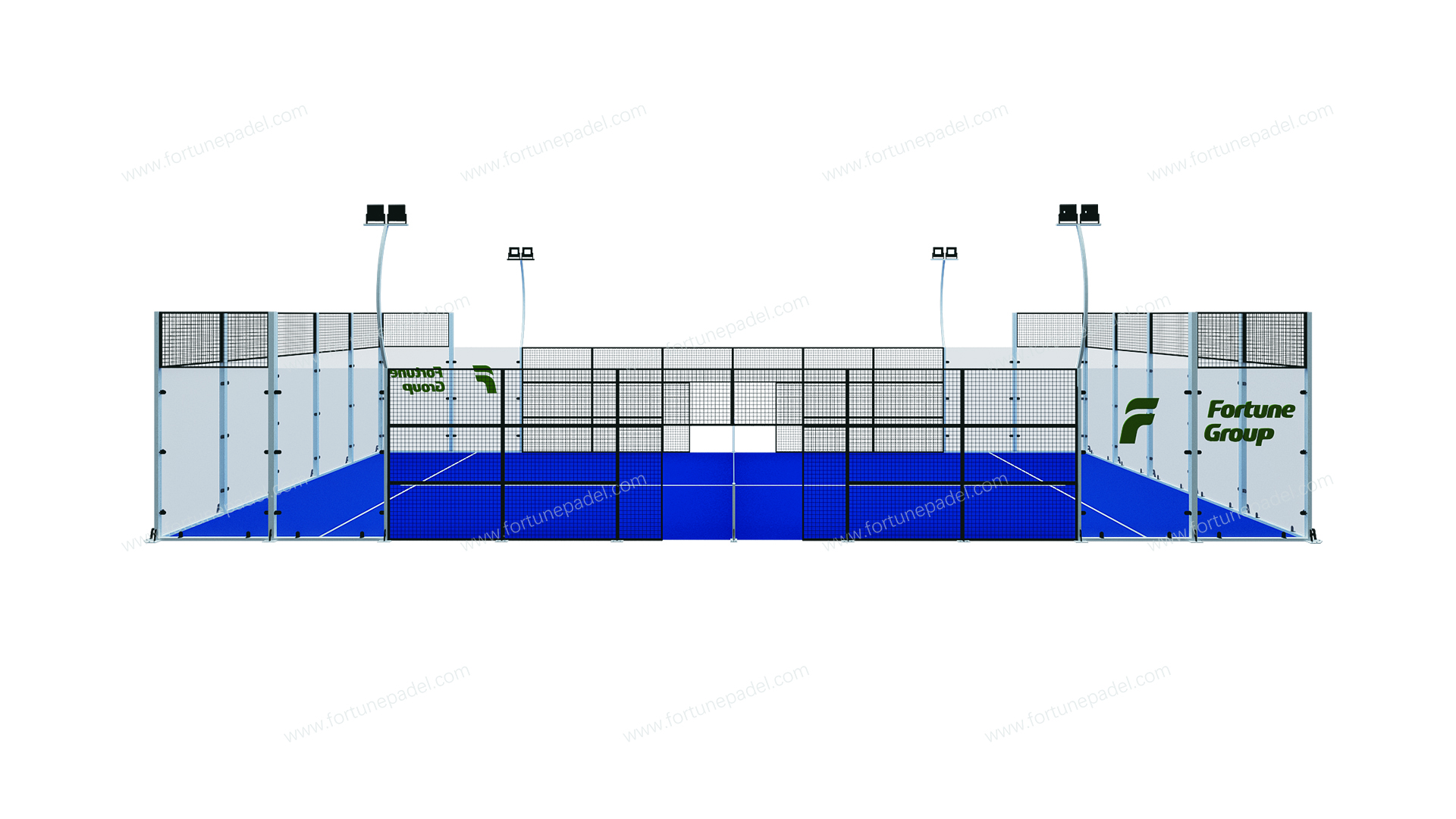

The FX-P01 Classic Padel Court embodies innovative design and precise craftsmanship, offering athletes a professional venue that does not compromise on functionality or durability. Specialized lighting poles, energy-efficient illumination, robust structural integrity, and high-quality surface treatments ensure prime condition in all weather conditions.
Versatile Lighting Poles: Combining both aesthetically pleasing and functional I-shaped and C-shaped poles, with a minimum height of 6m, customizable to meet professional game lighting standards.
Energy-Saving LED Lighting: Equipped with an IP65 protection level, featuring eight 200W LED lights, it not only saves energy but also ensures a luminosity of 300 Lux to optimize night match visibility.
Q235 Steel Structure: The reinforced structure with 4-meter-tall columns provides exceptional stability against wind and extended longevity.
EN-Certified Tempered Glass: Manufactured to EN12150-2:2004 standards, the 12mm thick glass is impact-resistant while providing clarity of vision.
EN-Certified High-Performance Artificial Turf: Manufactured to EN14041:2008 standards, with a density of 52,500 stitches/m², the KDK monofilament curled grass, combined with the right amount of quartz sand infill, protects fibers and adds elasticity for an excellent play sensation.
Precision-Size Netting: 10m long and 0.88m high at the center, rising to 0.92m at the ends, with a maximum tolerance of 0.005m, ensuring absolute fairness during competition.
High-Quality Surface Treatment: Employing a zinc coating/electrostatic powder coating process enhances corrosion resistance and allows for a variety of custom color options to cater to personalized preferences.
FX-P01 Classic Padel Court meets professional technical and performance standards while enhancing aesthetics and durability through its meticulous surface treatment. The attention to detail in its design reflects a deep understanding of the athlete experience, ensuring the court remains the highlight of any competitive venue.
| LIGHT POST | 4 tubes with 3 meters high, fitting with trim and tube up to 6 meters, Z style and C style for option |
| LED LIGHT | 4 lighting towers with 8pcs LED light 200W/300Lux/IP65 |
| COMPONENTS | Stainless Steel 304 Rubber pad, Bolt Glass fitting, etc |
| PILLAR & MESH | PILLAR: Q235 steel square tube 4 double pillars 80x60mm making 160*60mm with 4m height and other pillars with 60*80mm with 4m height FRAME: Q235 steel square tube 20*40mm MESH: mesh diameter 4mm, mesh distance 50*50mm and framed with curved rod. |
| TEMPERED GLASS | Tempered glass with 12mm thickness with standard EN12150-2:2004 18pcs of 1996*3000mm |
| ARTIFICIAL GRASS | KDK Monofilament curly grass. HEIGHT: 12mm DENSITY: 52500stitches/m² GAUGE: 3/16” DTEX: 9000D BACKING: PP+Net COATING: Latex STANDARD: En14041:2008 FILLER: Quartz sand ∅1.6mm-1.25mm, 10kgs/m², visible fiber 2mm-3mm |
| NET WITH POLE | NET MATERIAL: Synthetic fiber SIZE: 10 meters long and 0.88m high at the center, rising to 0.92 meters at the ends, with a maximumtolerance of 0.005 meters. |

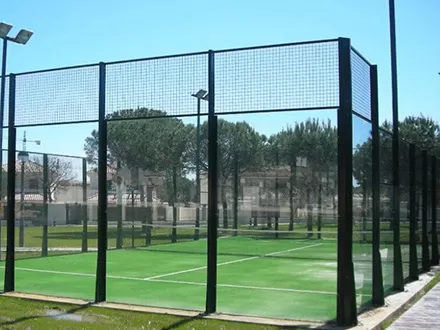

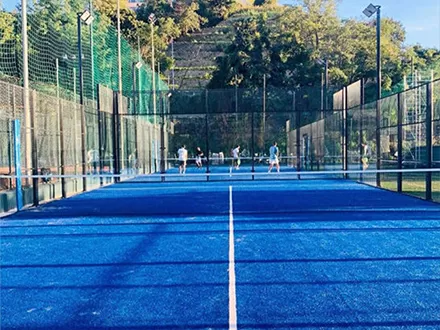

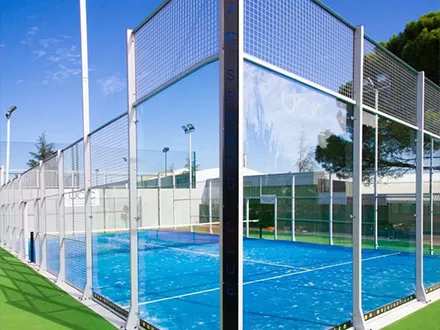

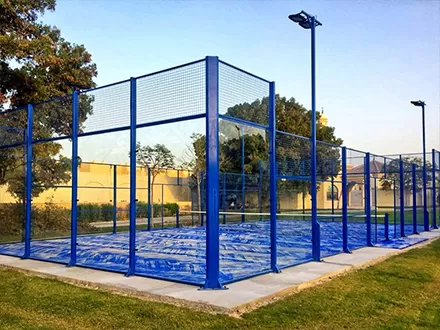

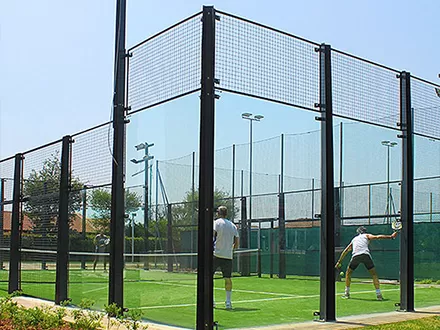

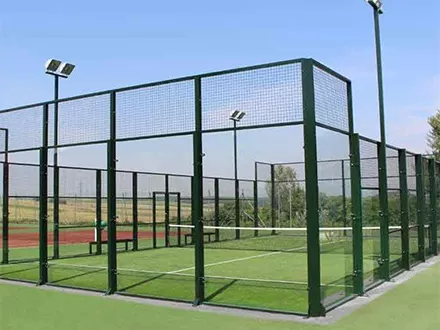

Fortune provides customized padle tennis court solutions to clients around the world. We offer a wide range of padel court models that can be customized to suit the specific needs of our clients. Explore our case studies to learn how we help a variety of clients achieve their goals.
Discover the success stories and enthusiastic endorsements from our esteemed partners. They share their firsthand experiences of how our innovative Padel Tennis solutions have not only reshaped the way they do business but also significantly boosted their market presence and customer satisfaction.
How long does it take to build a Padel court?
Once the foundation work is completed, it usually takes 1 to 2 weeks to install a Padel court, depending on the court type, site readiness, and project complexity.
What are the basic foundation requirements for a Padel court?
The court foundation is crucial. It must be solid, level, and have good drainage. A typical outdoor court requires a concrete base of at least 20–25 cm thick, with a smooth and even surface. Proper groundwork is especially important for outdoor courts to prevent sinking or water accumulation.
Do you provide installation services?
Yes, we offer professional installation guidance. To ensure high-quality construction, we can send experienced engineers to your site to provide: Technical guidance Supervision of the installation process Support for key installation steps and final inspection Please note: Clients are responsible for the engineer’s travel, accommodation, meals, and visa costs. Alternatively, we can recommend a local installation team to assist you. Our goal is to ensure every court project is delivered smoothly and to the highest standard.
How much does it cost to build a Padel court?
The cost of a Padel court varies depending on several factors, including the court type (standard or panoramic), materials, customization needs, site preparation, and location. We recommend contacting us for a personalized quote.
How is a Padel court maintained?
Maintenance is relatively straightforward. Regular tasks include cleaning the artificial turf, removing debris and infill, checking the glass and metal structures, tightening screws, and ensuring proper drainage. We provide a detailed maintenance guide and optional maintenance services.

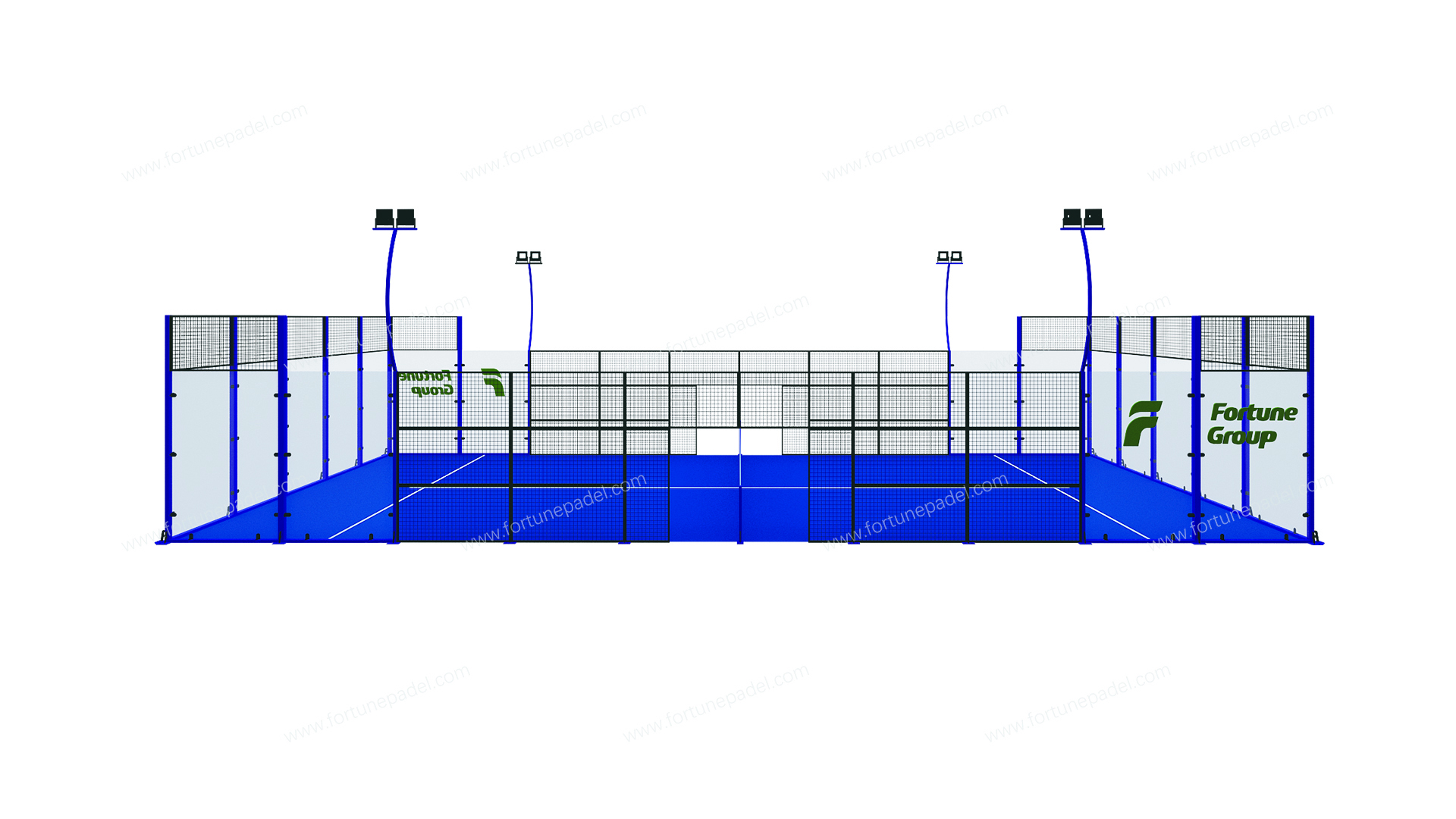

Feature: Standard durable design
Ideal for: Schools, community centers
Highlights: Sturdy, long-lasting, and cost-effective

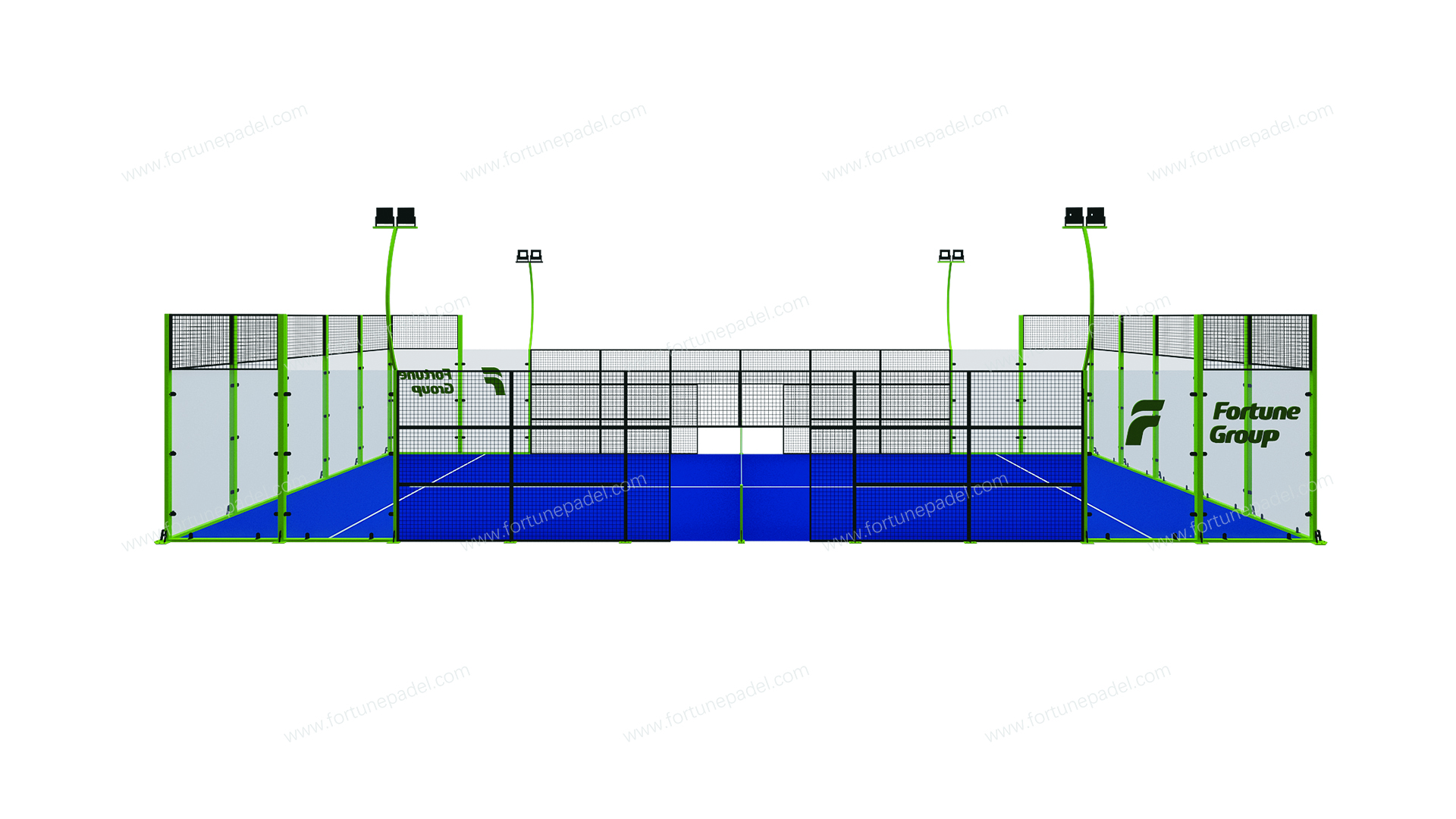

Feature: Classic panoramic design with corner posts
Ideal for: Popular in high-end competitions and clubs
Highlights: Top-selling model, perfect blend of solid structure and clear visibility

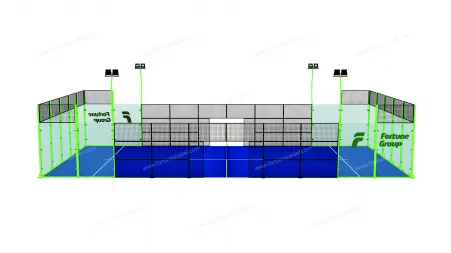

Feature: Innovative cornerless panoramic design; Compared to traditional padel courts, our panoramic padel court provides better visibility and is ideal for indoor and outdoor installations.
Ideal for: Professional events and training seeking ultimate experiences
Highlights: Unobstructed full view, comprehensive spectator experience while ensuring structural stability
Feature: Innovative cornerless panoramic design
Ideal for: Professional events and training seeking ultimate experiences
Highlights: Unobstructed full view, comprehensive spectator experience while ensuring structural stability

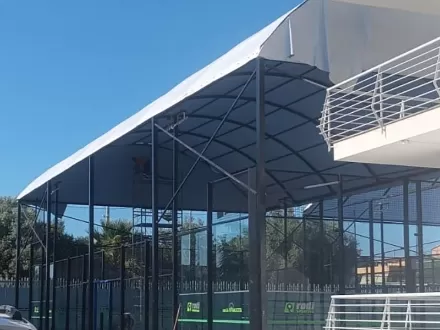

Feature: Motorized retractable roof adaptable to changing weather
