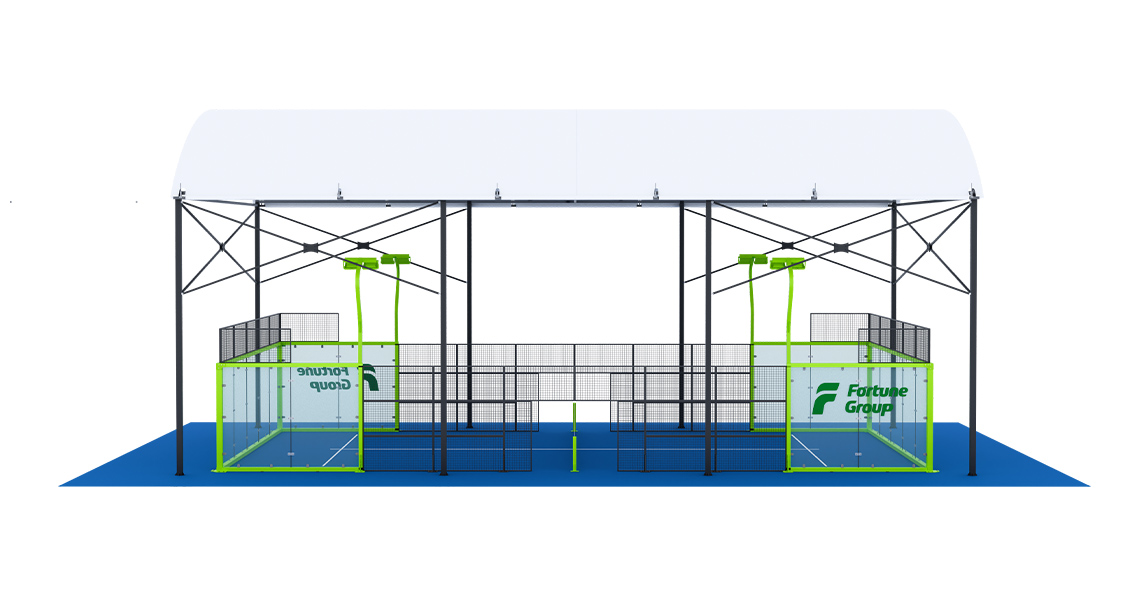

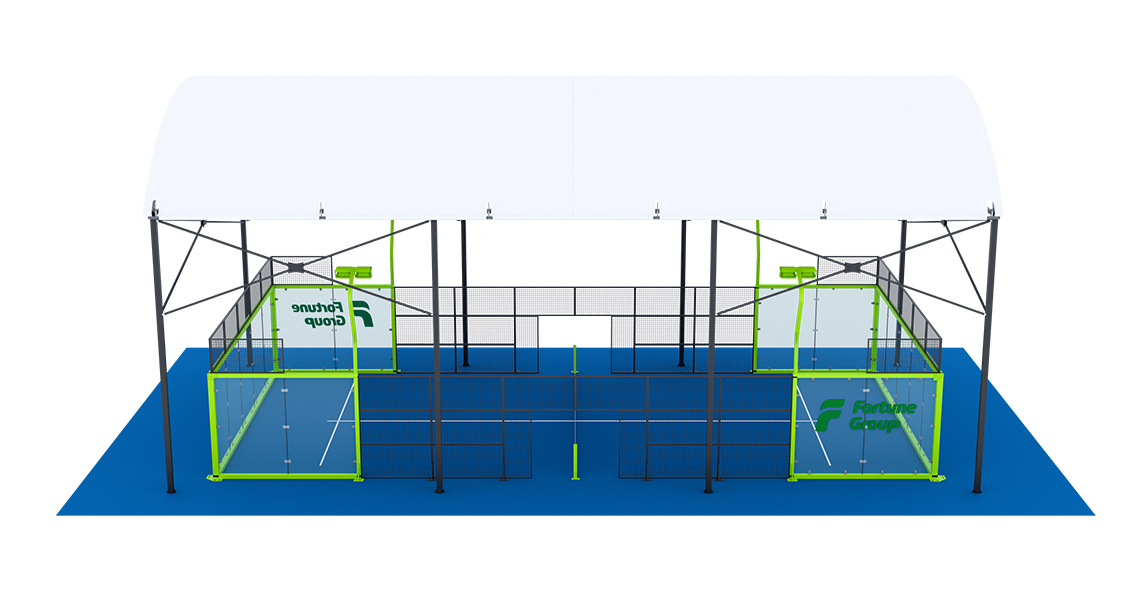

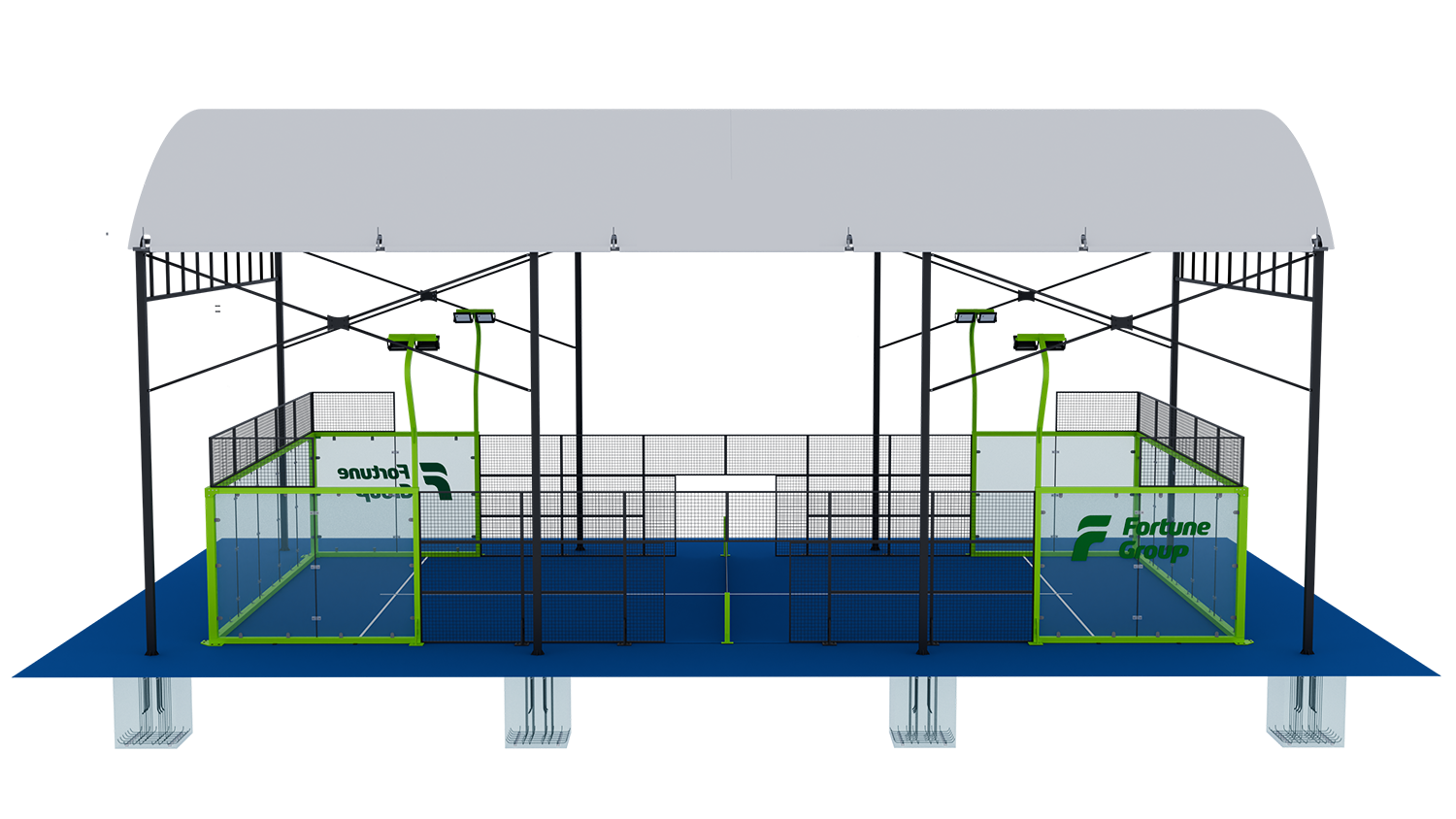

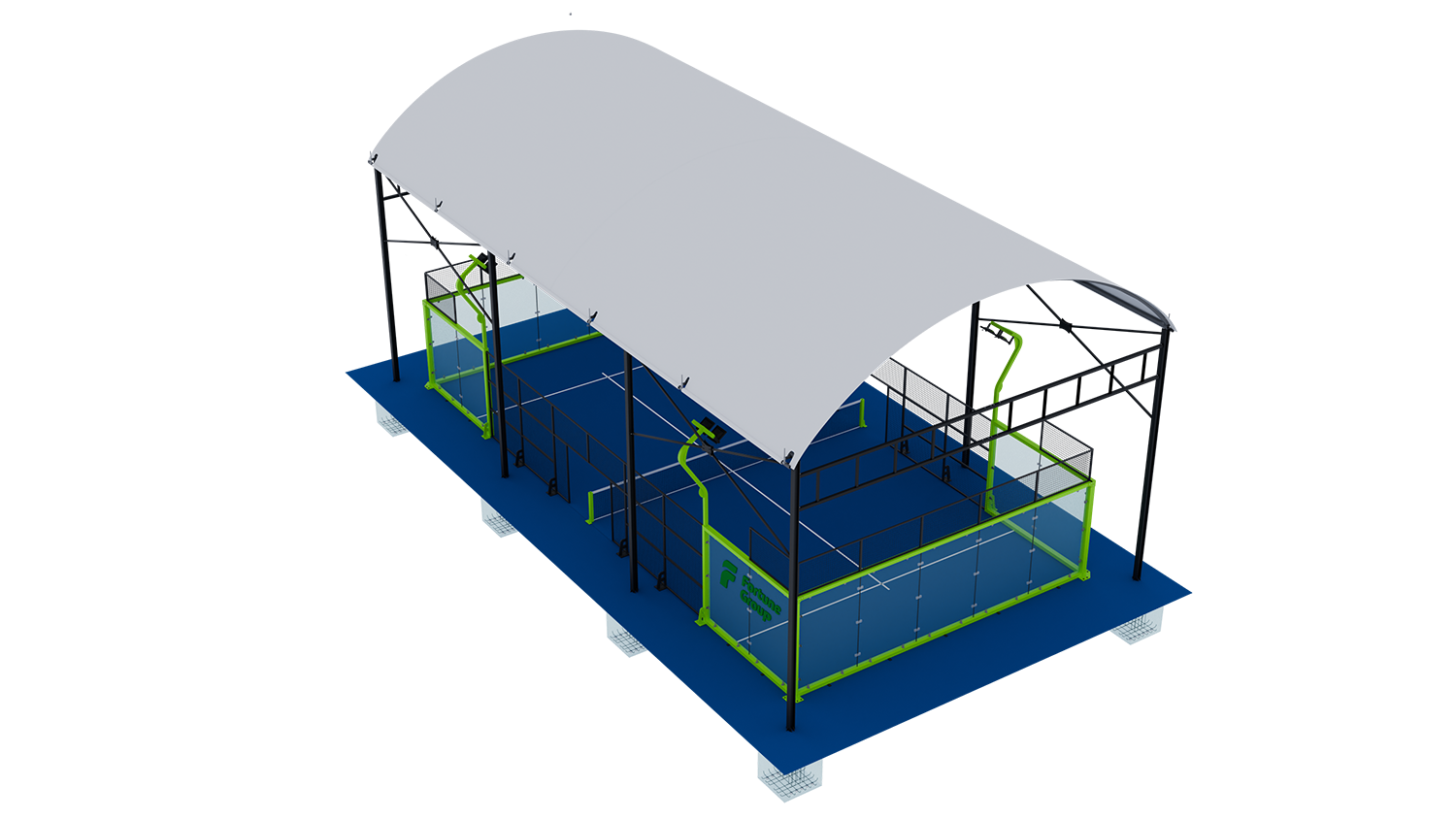

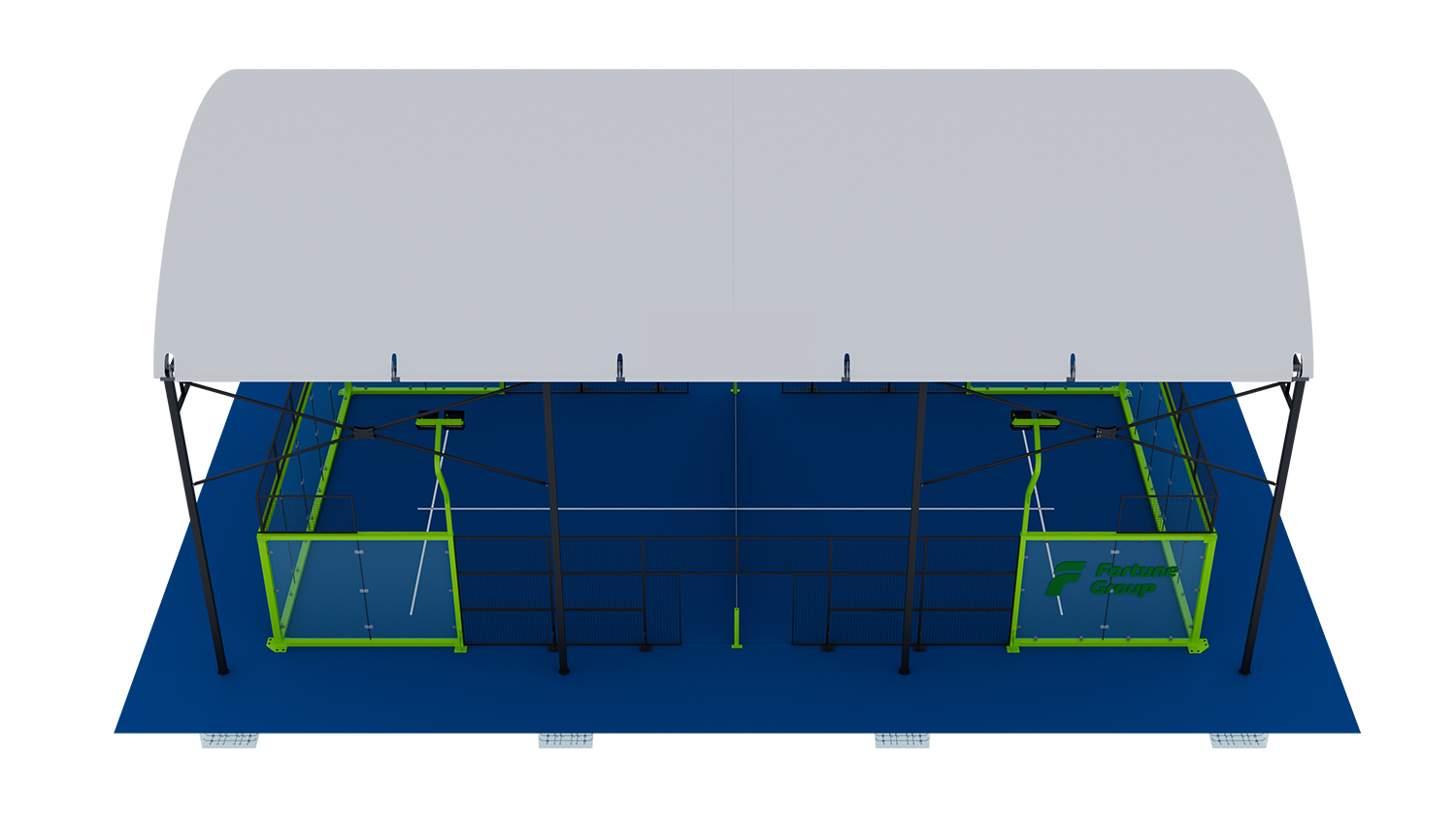

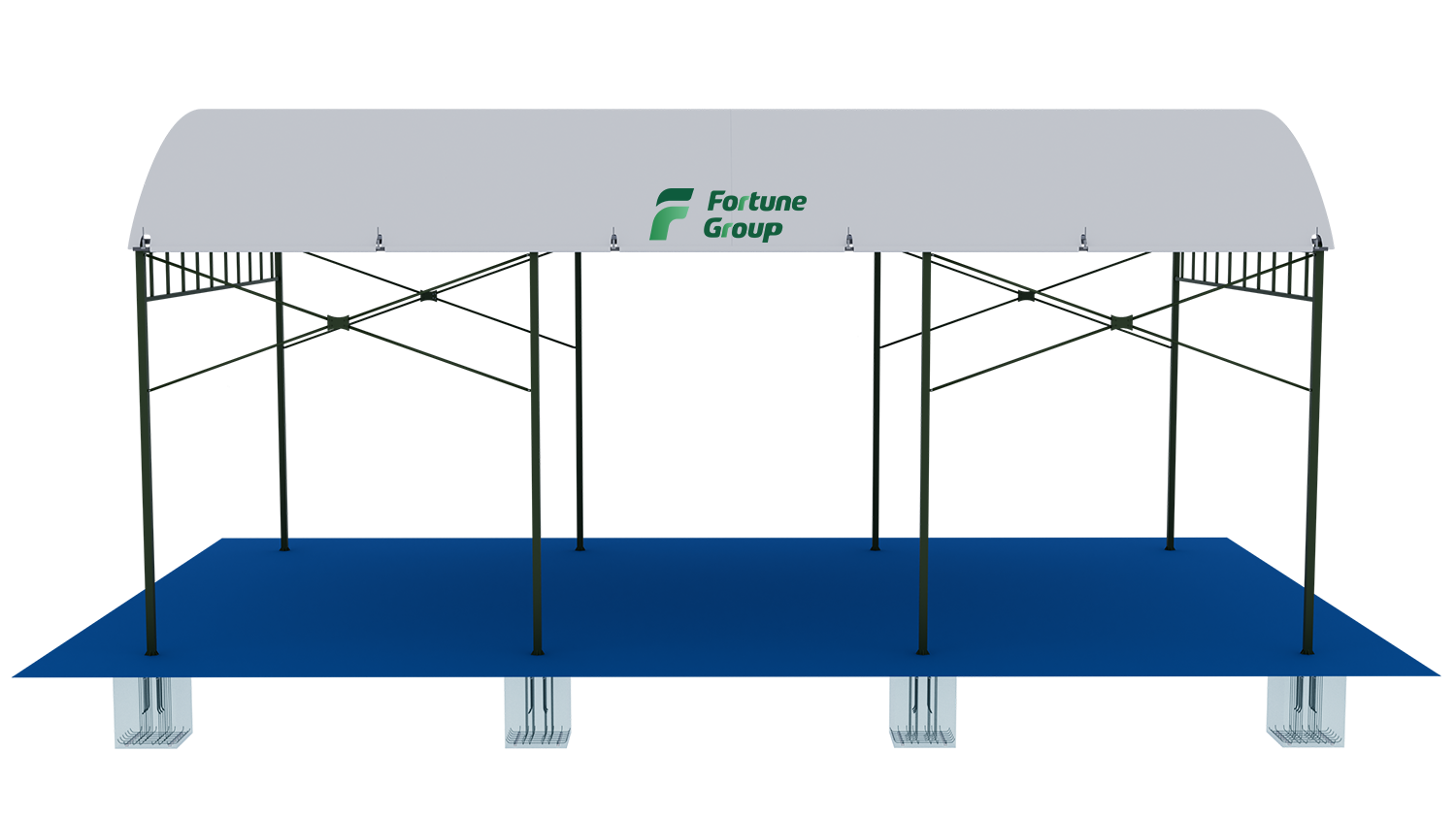

The FX-P08 Reinforced Higher Underground Roof is designed for high-end private venues seeking excellence and differentiation, characterized by its higher roof and thicker pillars, as well as a unique roof, offering an unparalleled sense of openness and visual impact.
Reinforced Steel Columns 8 H-shaped steel columns measuring 180x180mm, with a height of 8m, provide extraordinary stability for the structure.
Upgraded Canopy Height: With a top height of 10.8m and a side height of 8m, it creates a more spacious and comfortable sports environment.
Dual-Layer Transparent PVDF Cover: 750g/m² transparent PVDF material ensures good lighting while also providing protection.
Q335 Steel Framework: Whole roof frame is made by galvanized tube 100*50mm and 30*50mm, which ensure the entire frame sturdy and duarble.

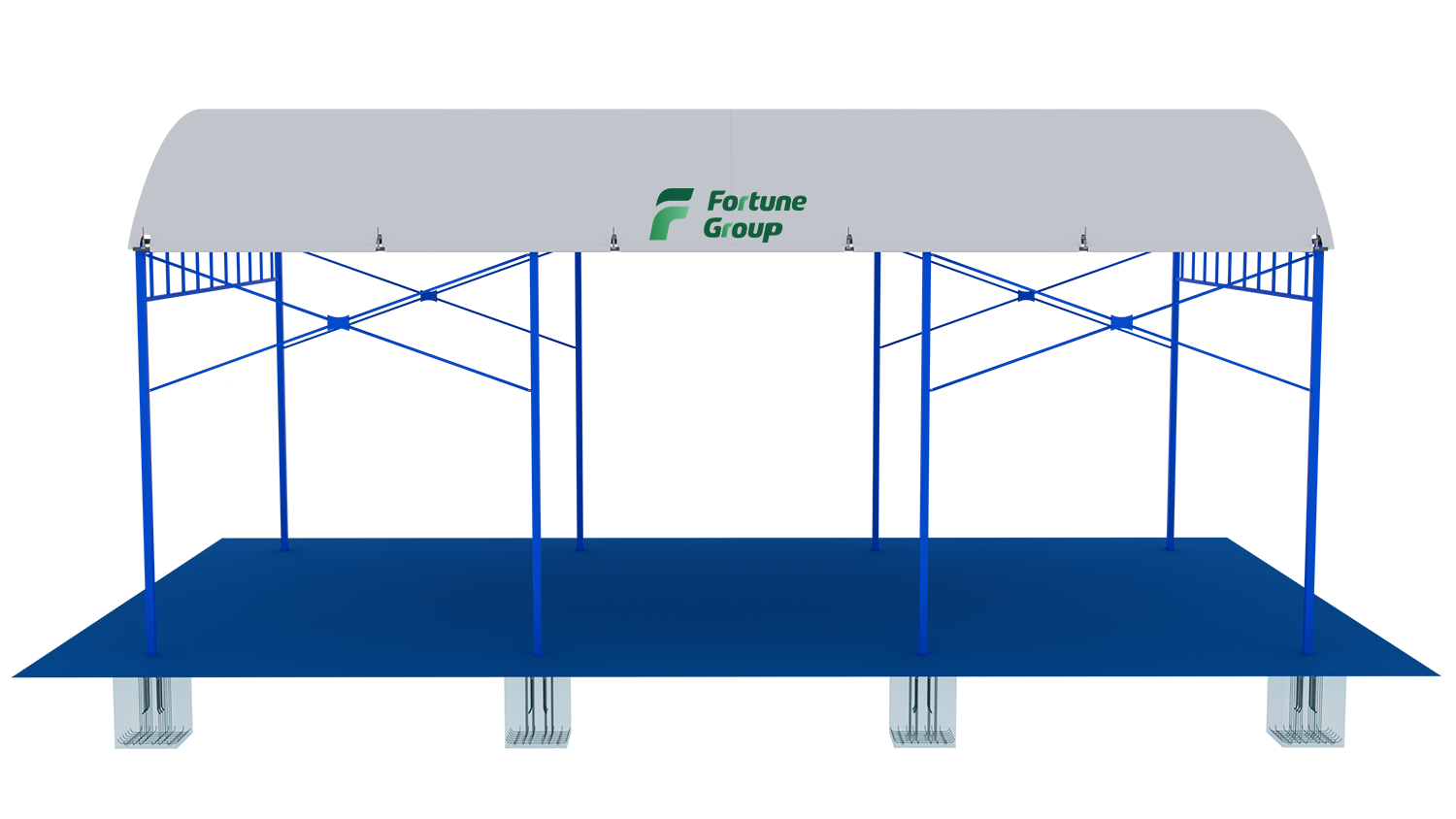

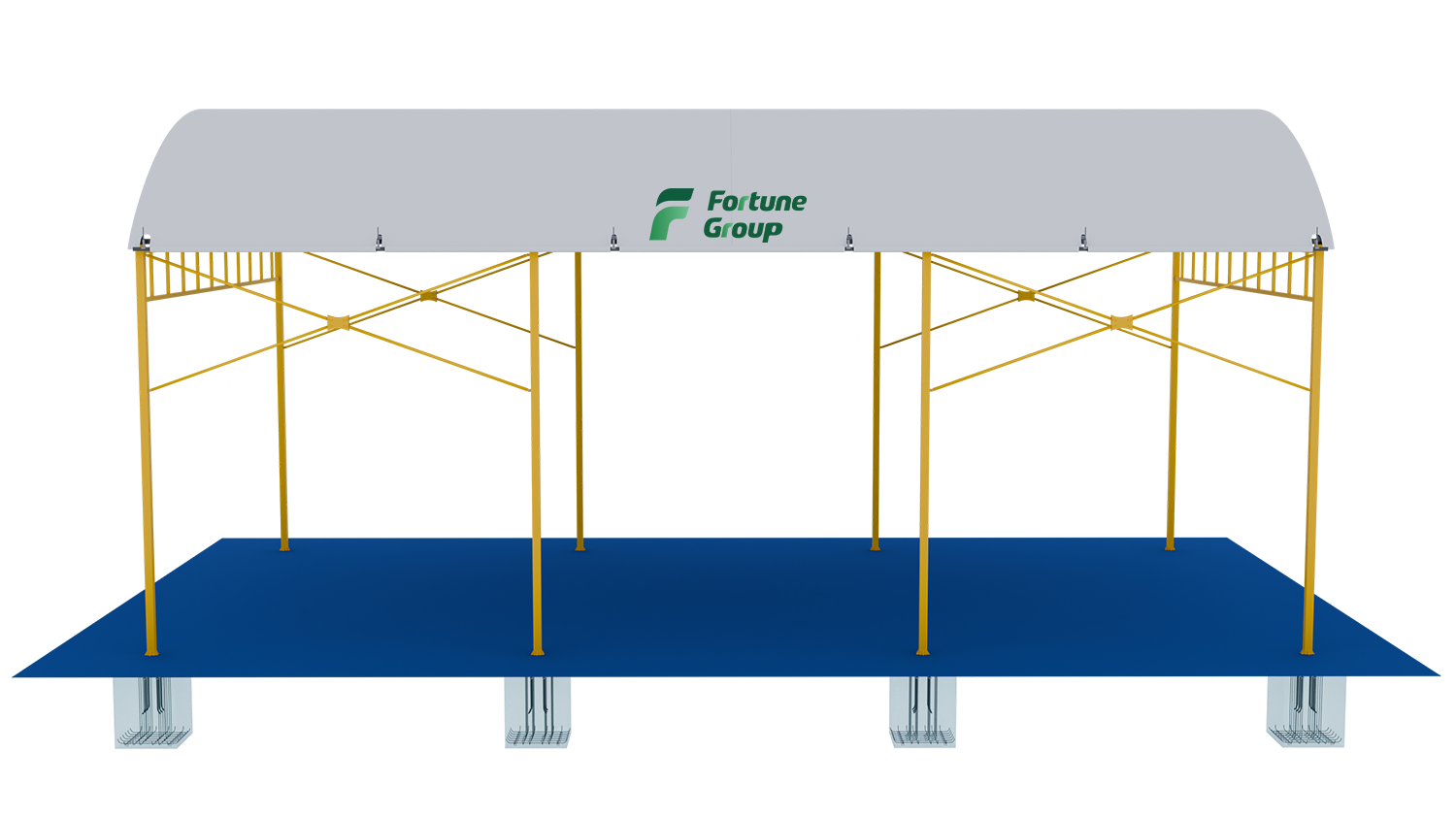

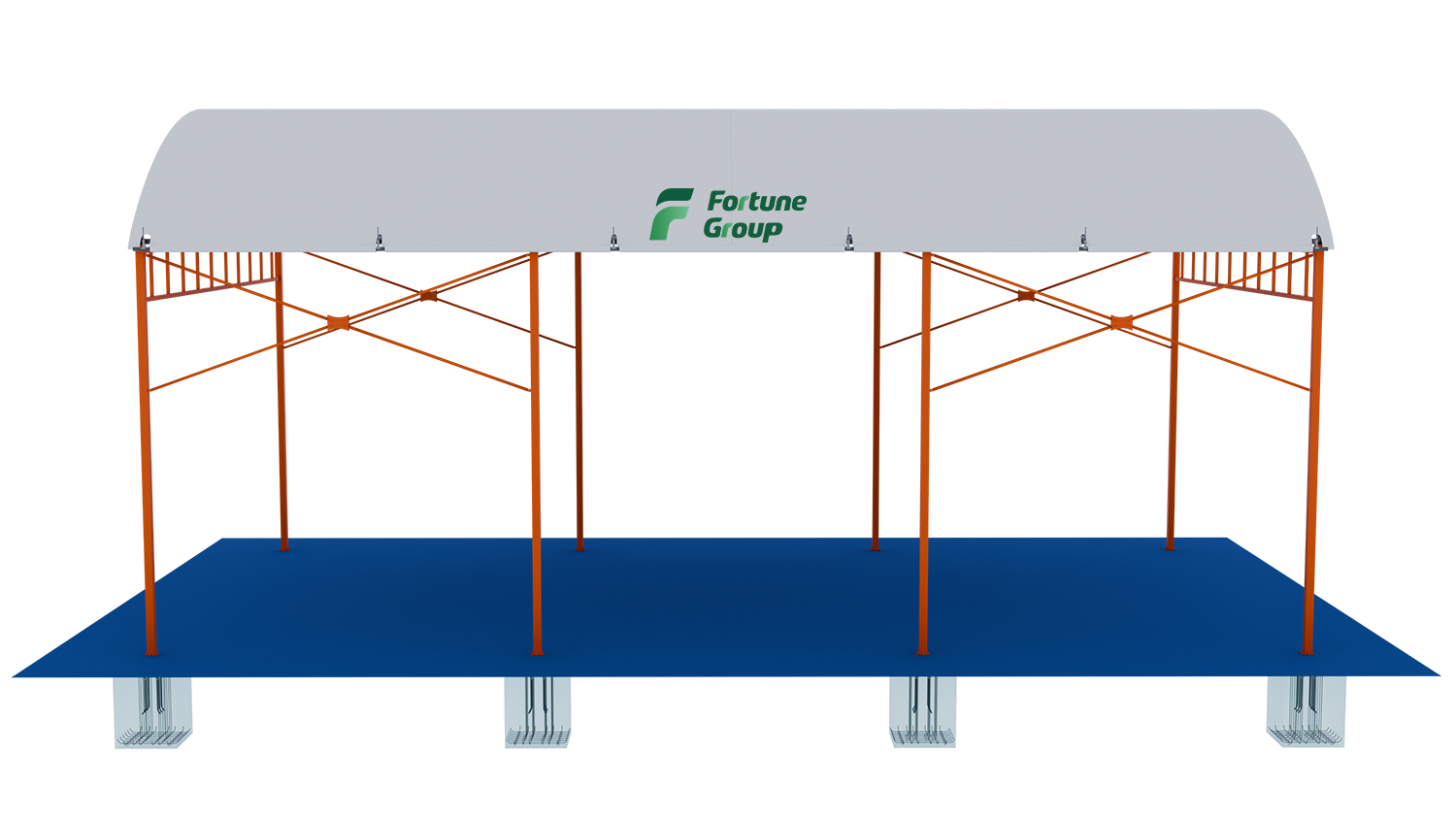

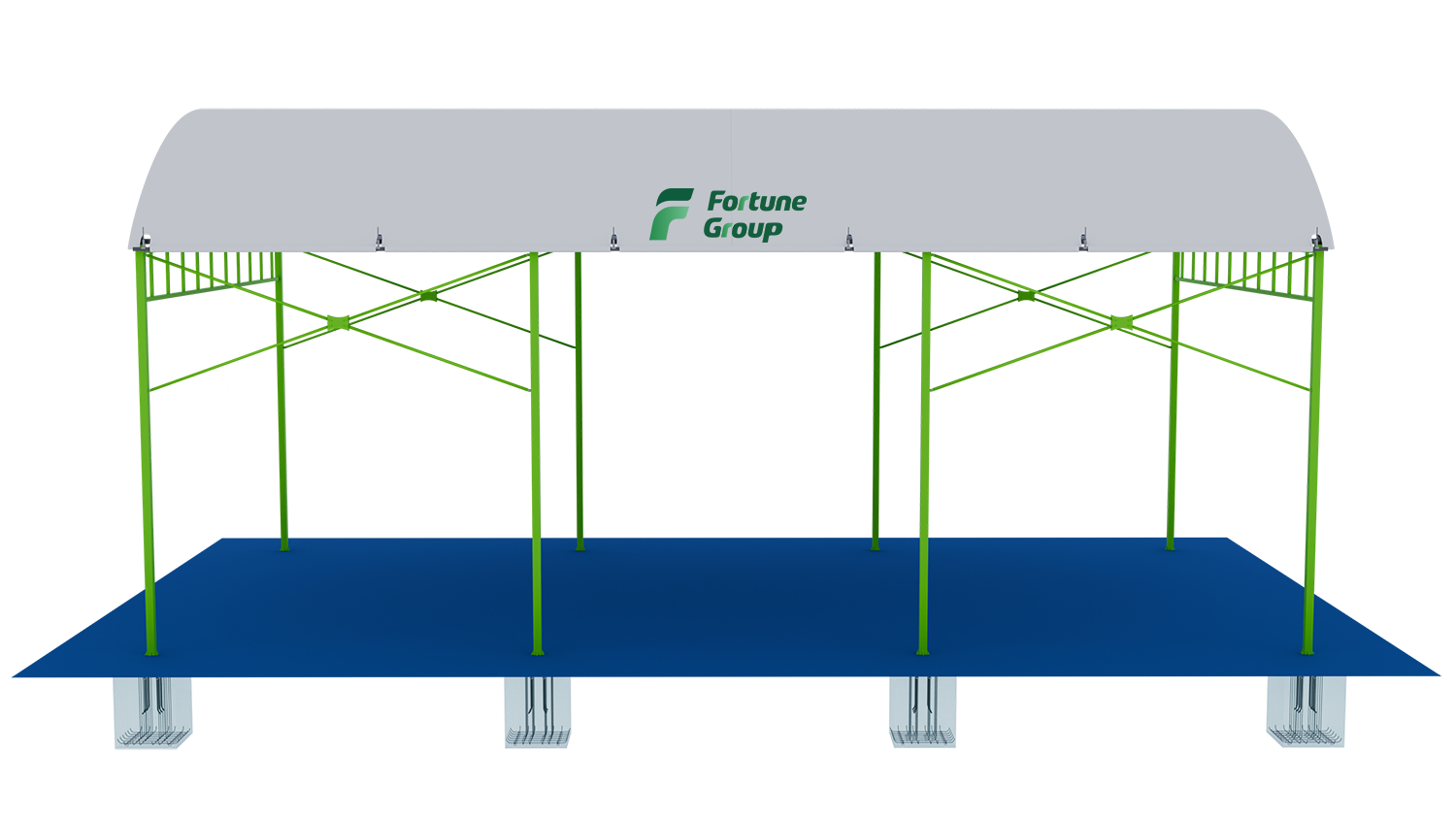

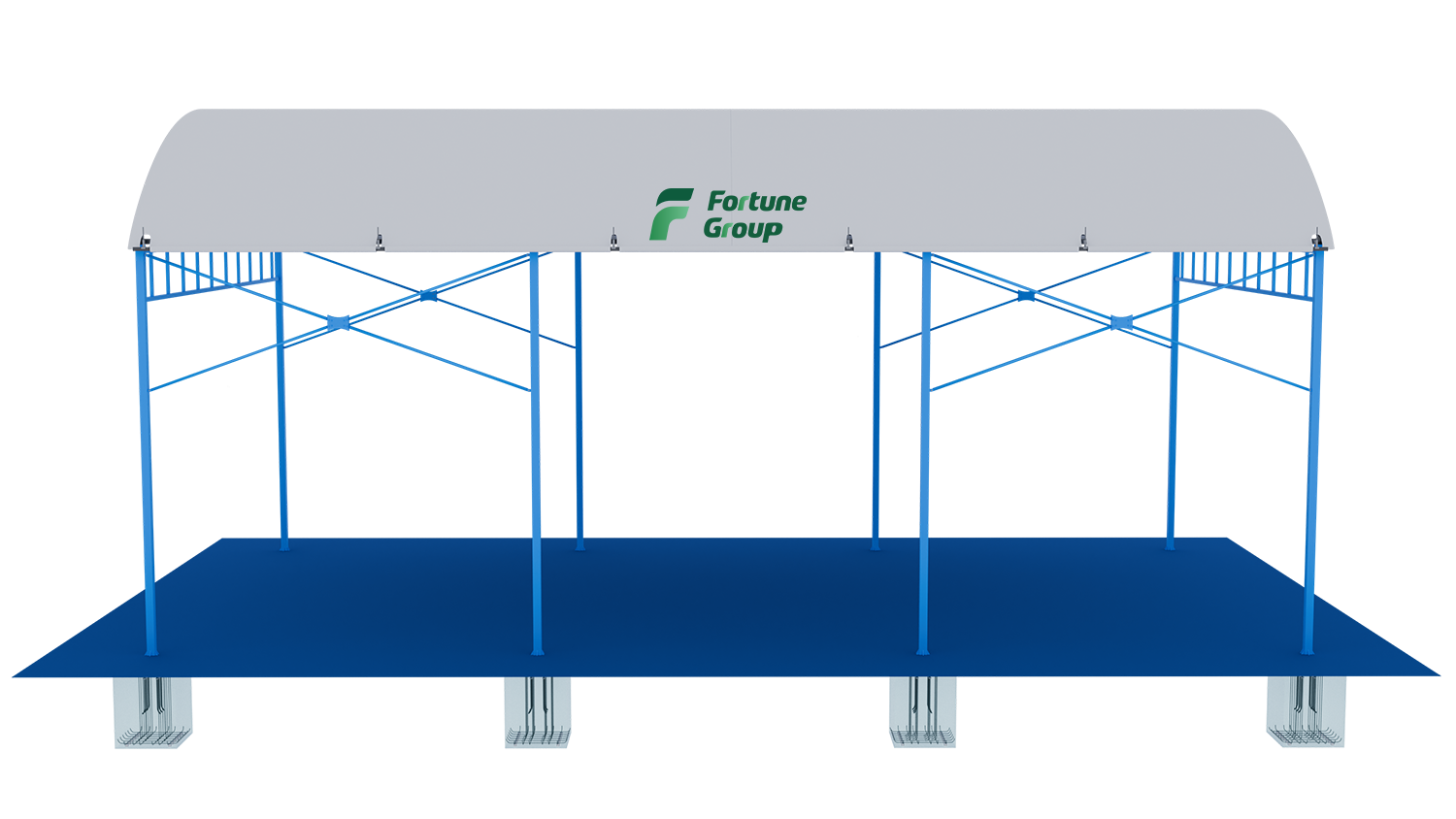

High-Quality Surface Treatment: Sandblasted and painted.
The FX-P08 Covered Padel Court offers an enhanced version of height and strength, along with a unique transparent design, bringing an exceptional sports experience and visual pleasure to private venues.
| PILLAR | METAL STRUCTURE: Q335 H beam steel PILLARS: 10 pcs of 125*125mm with 8m high HEIGHT: 8m height for side, 10.8m height for top PAINTING: Sandblasted and electrostatic powder coating |
| ROOF | Double Transparent PVDF-coated with 750g/m² Frame is Q235 profile with size 100*50*3mm and 50*30*1.5mm |

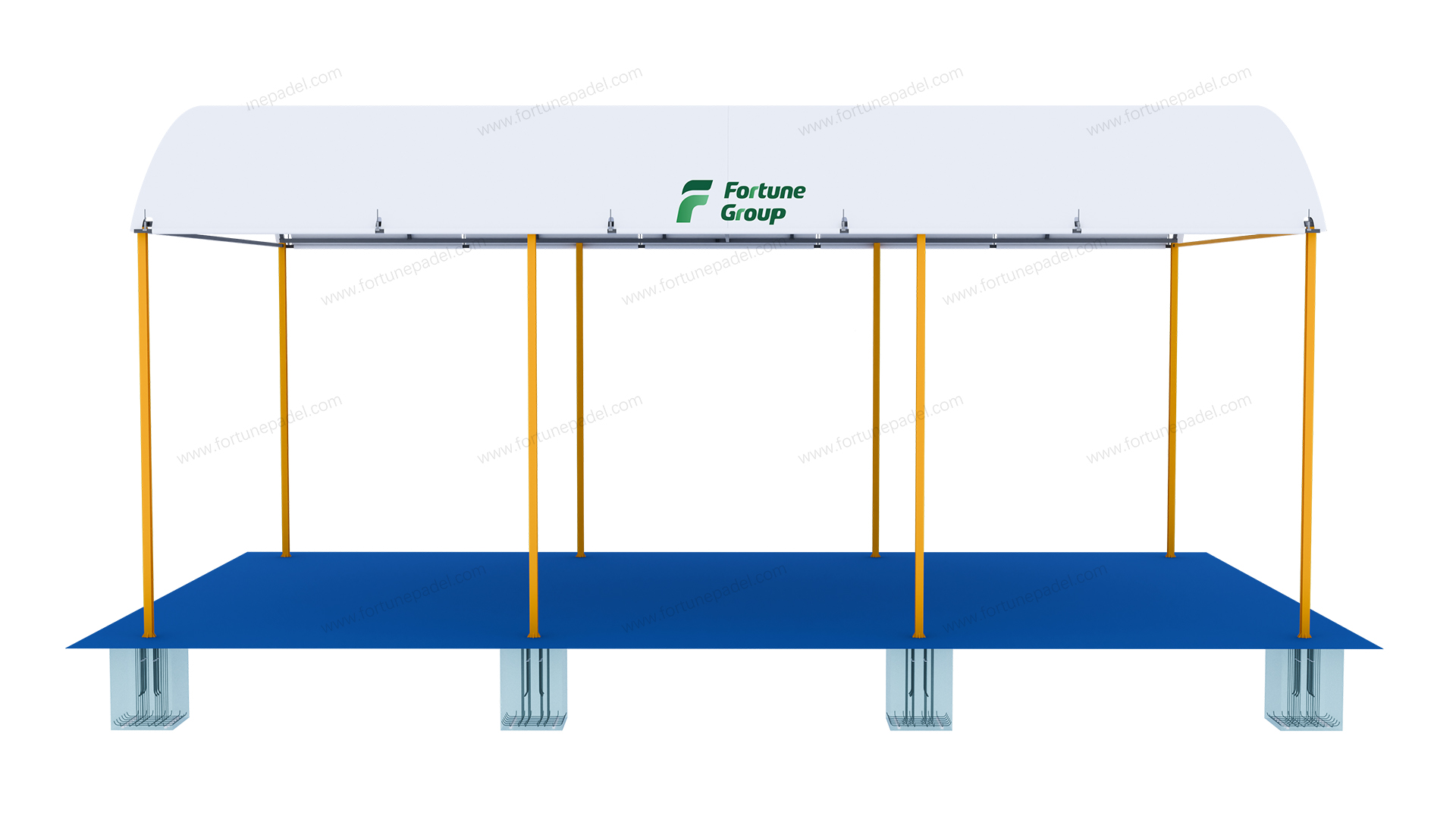

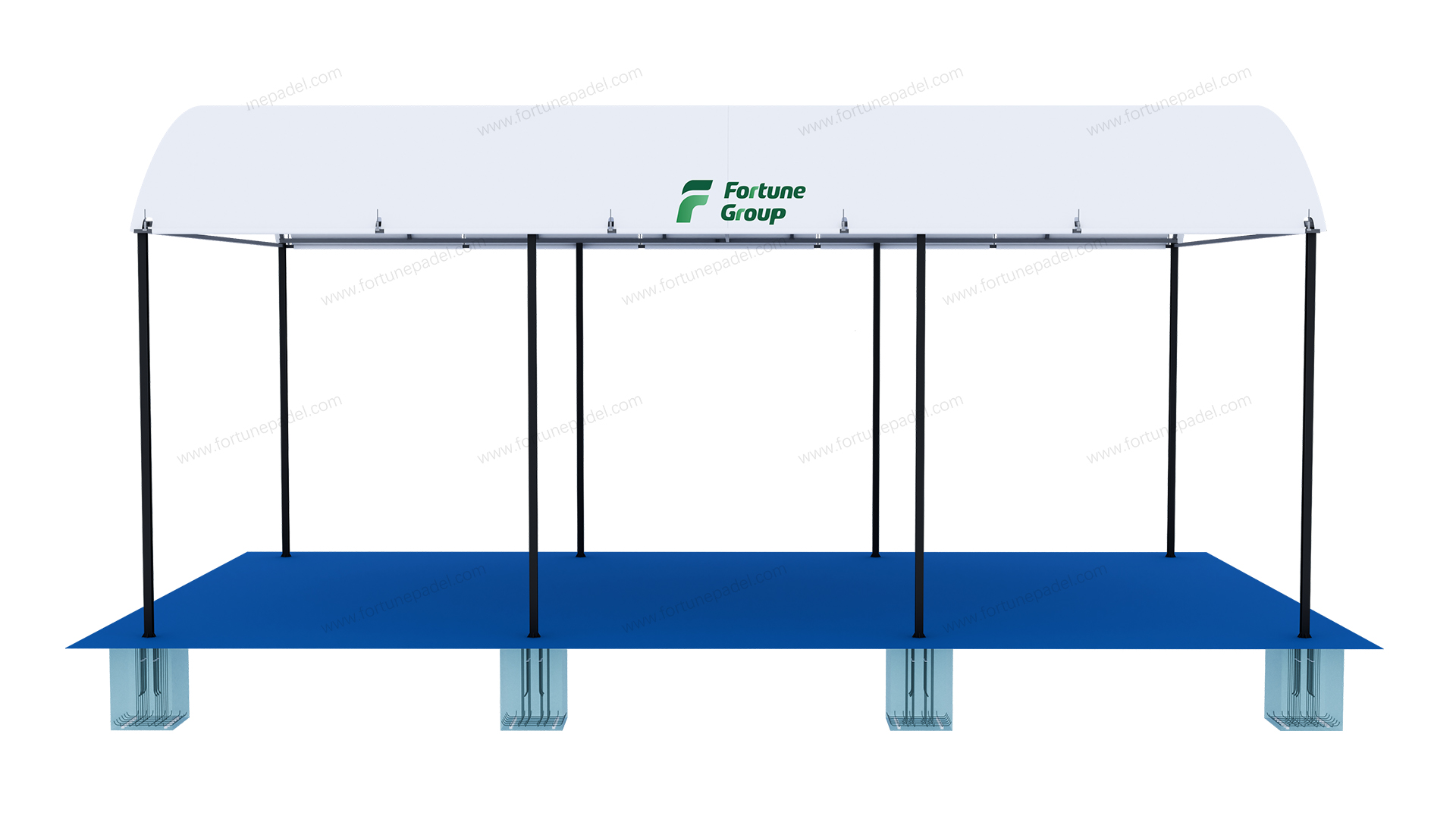

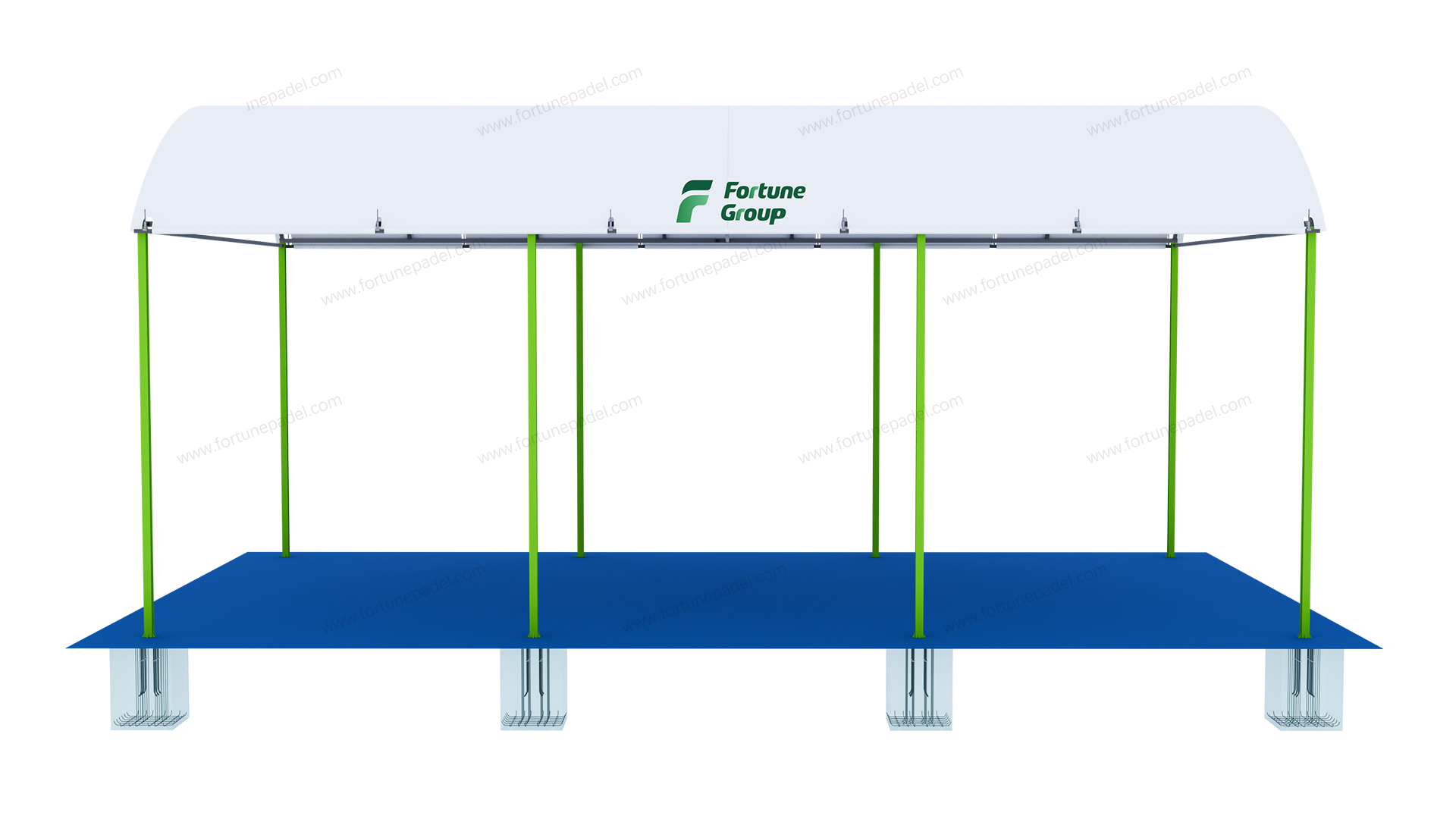

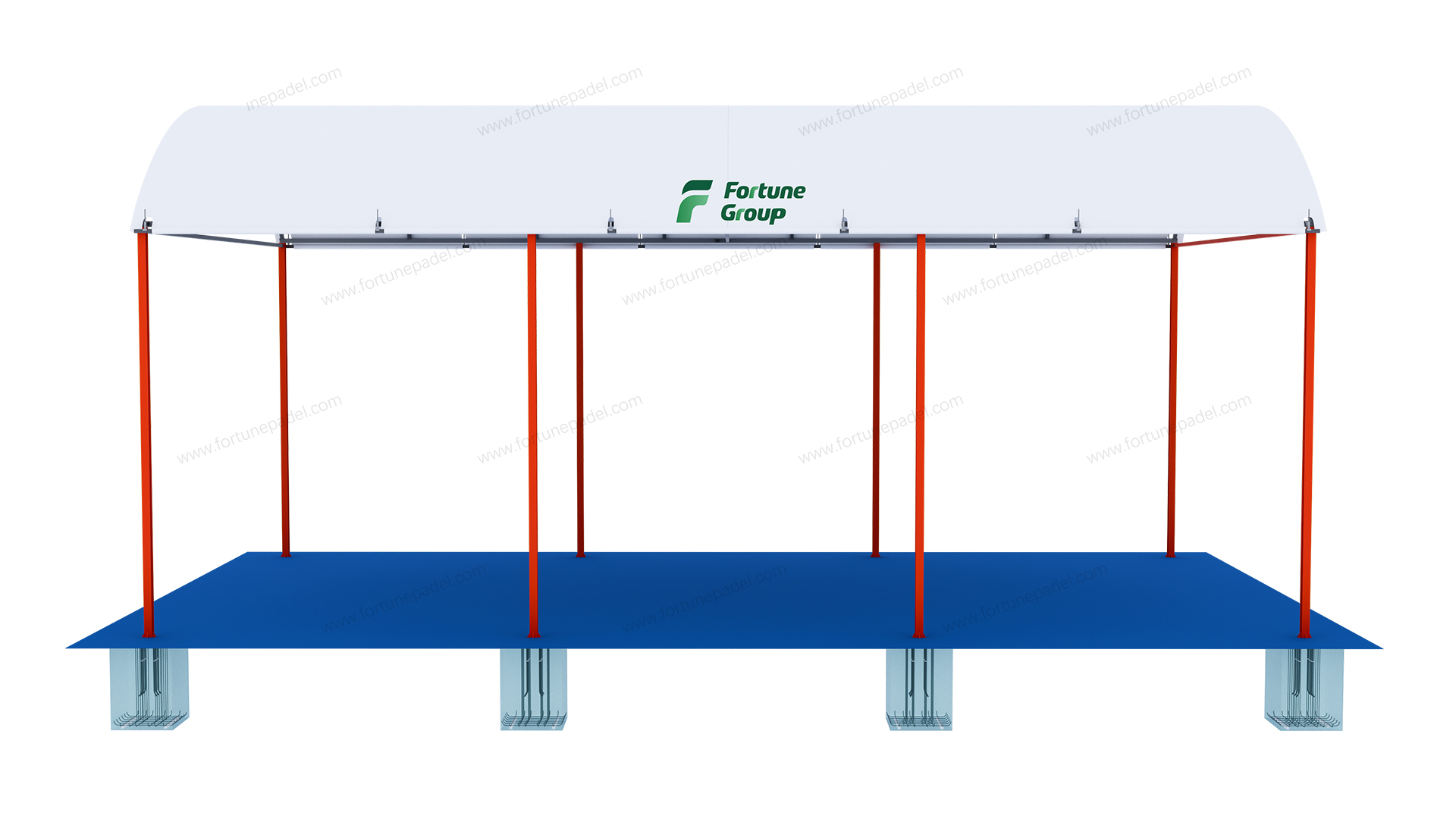

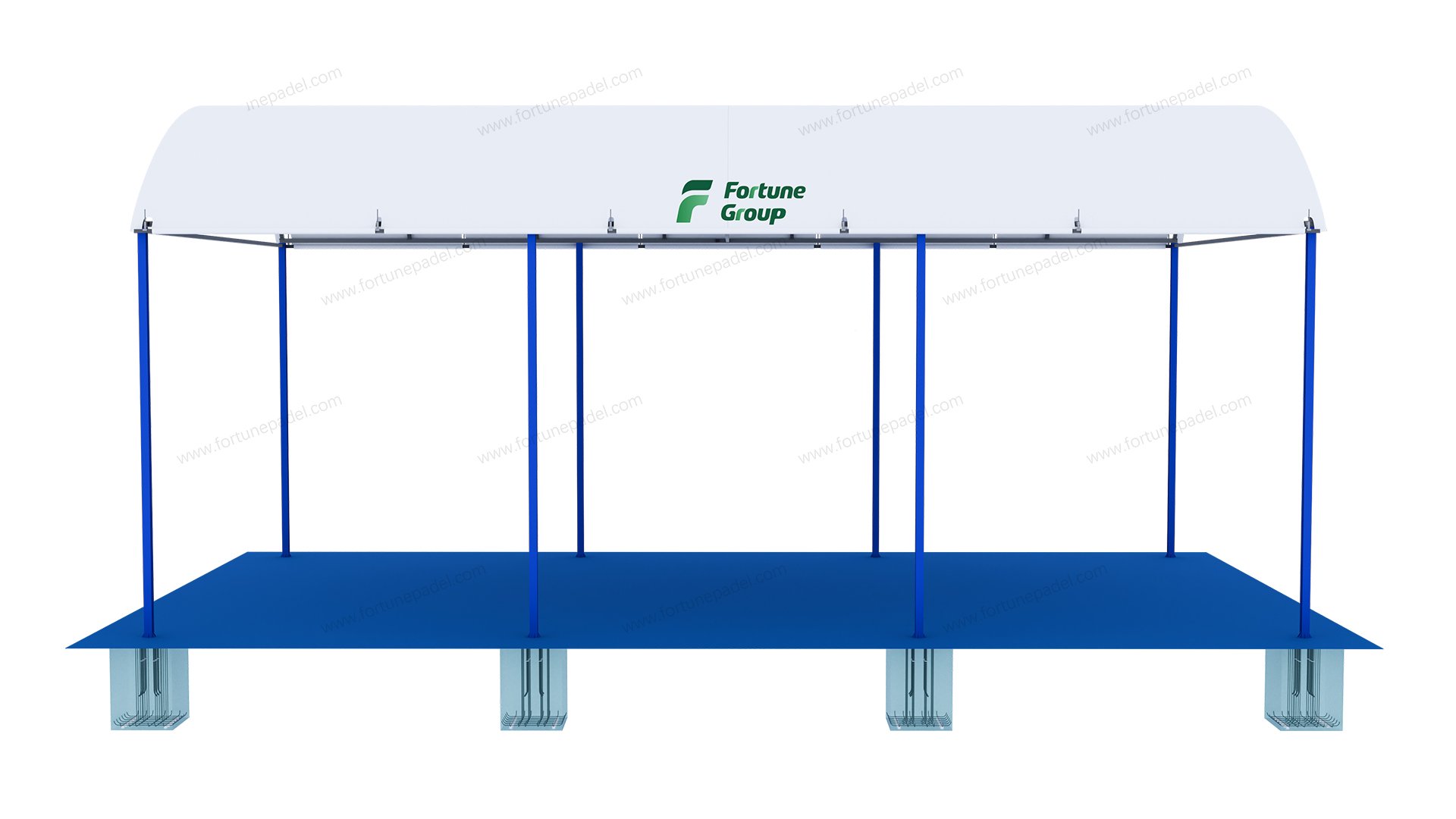

| INSTALLATION | Underground for pillars other parts for bolt |
How long does it take to build a Padel court?
Once the foundation work is completed, it usually takes 1 to 2 weeks to install a Padel court, depending on the court type, site readiness, and project complexity.
What are the basic foundation requirements for a Padel court?
The court foundation is crucial. It must be solid, level, and have good drainage. A typical outdoor court requires a concrete base of at least 20–25 cm thick, with a smooth and even surface. Proper groundwork is especially important for outdoor courts to prevent sinking or water accumulation.
Do you provide installation services?
Yes, we offer professional installation guidance. To ensure high-quality construction, we can send experienced engineers to your site to provide: Technical guidance Supervision of the installation process Support for key installation steps and final inspection Please note: Clients are responsible for the engineer’s travel, accommodation, meals, and visa costs. Alternatively, we can recommend a local installation team to assist you. Our goal is to ensure every court project is delivered smoothly and to the highest standard.
How much does it cost to build a Padel court?
The cost of a Padel court varies depending on several factors, including the court type (standard or panoramic), materials, customization needs, site preparation, and location. We recommend contacting us for a personalized quote.
How is a Padel court maintained?
Maintenance is relatively straightforward. Regular tasks include cleaning the artificial turf, removing debris and infill, checking the glass and metal structures, tightening screws, and ensuring proper drainage. We provide a detailed maintenance guide and optional maintenance services.
