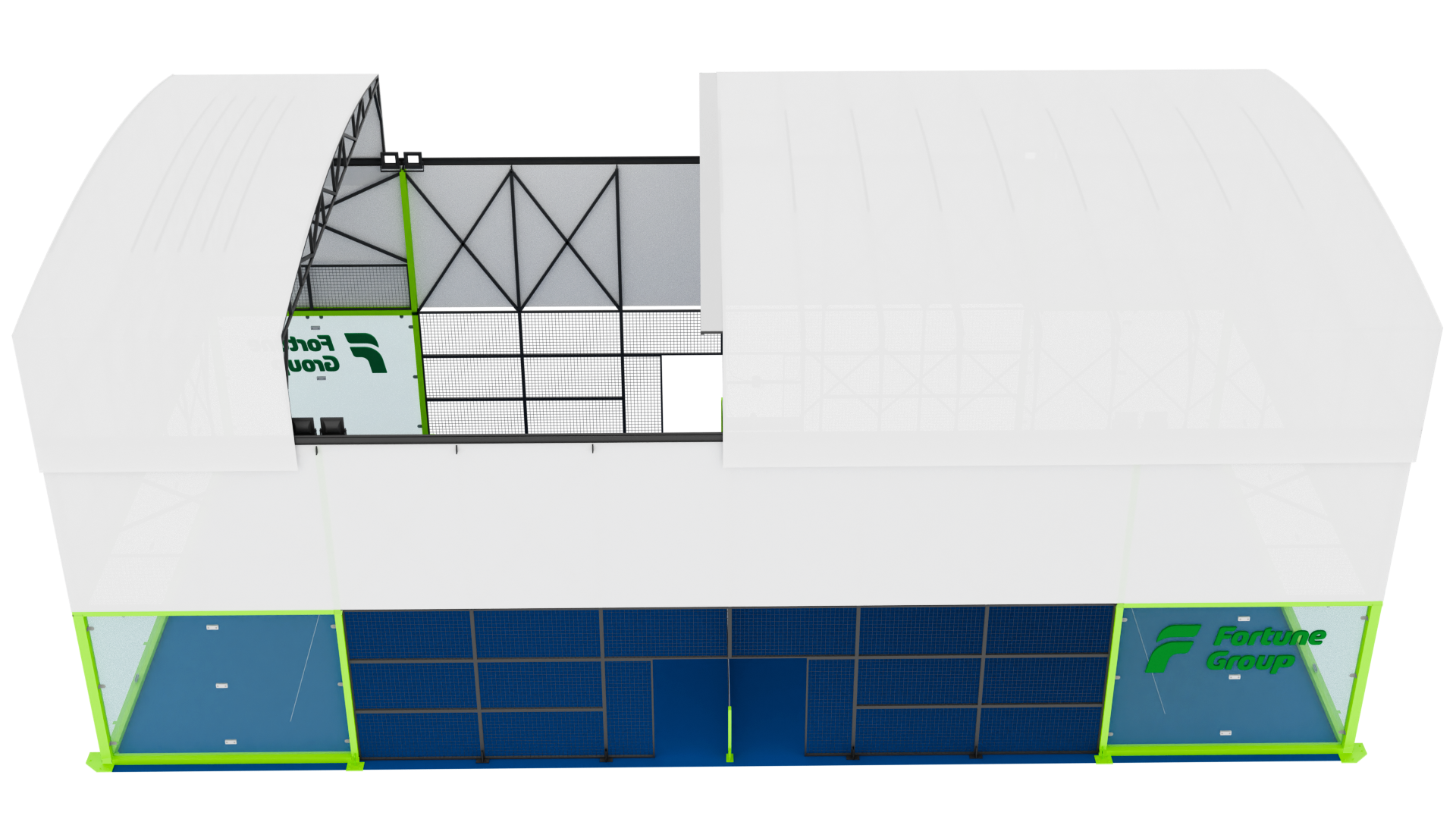

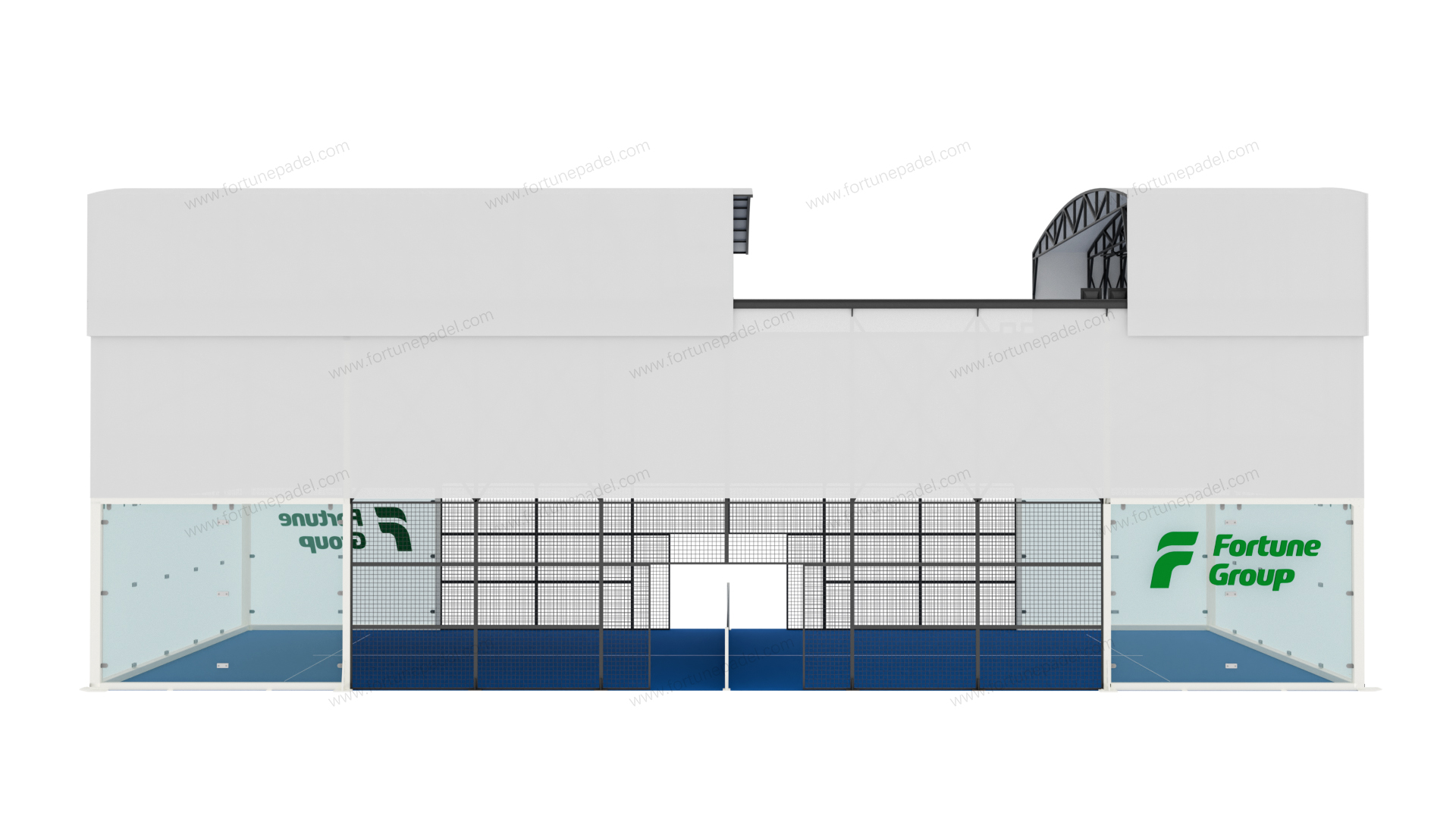

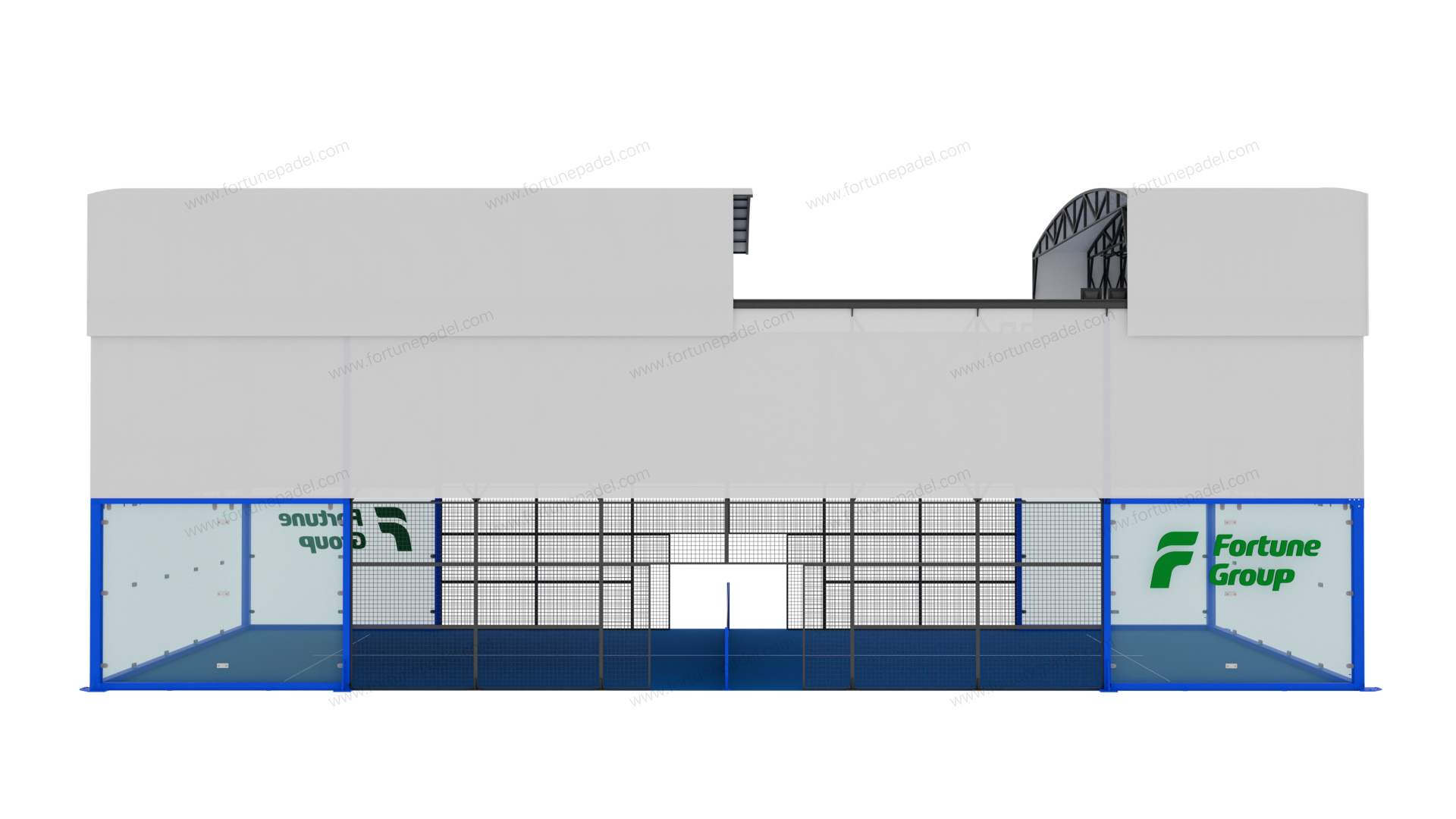

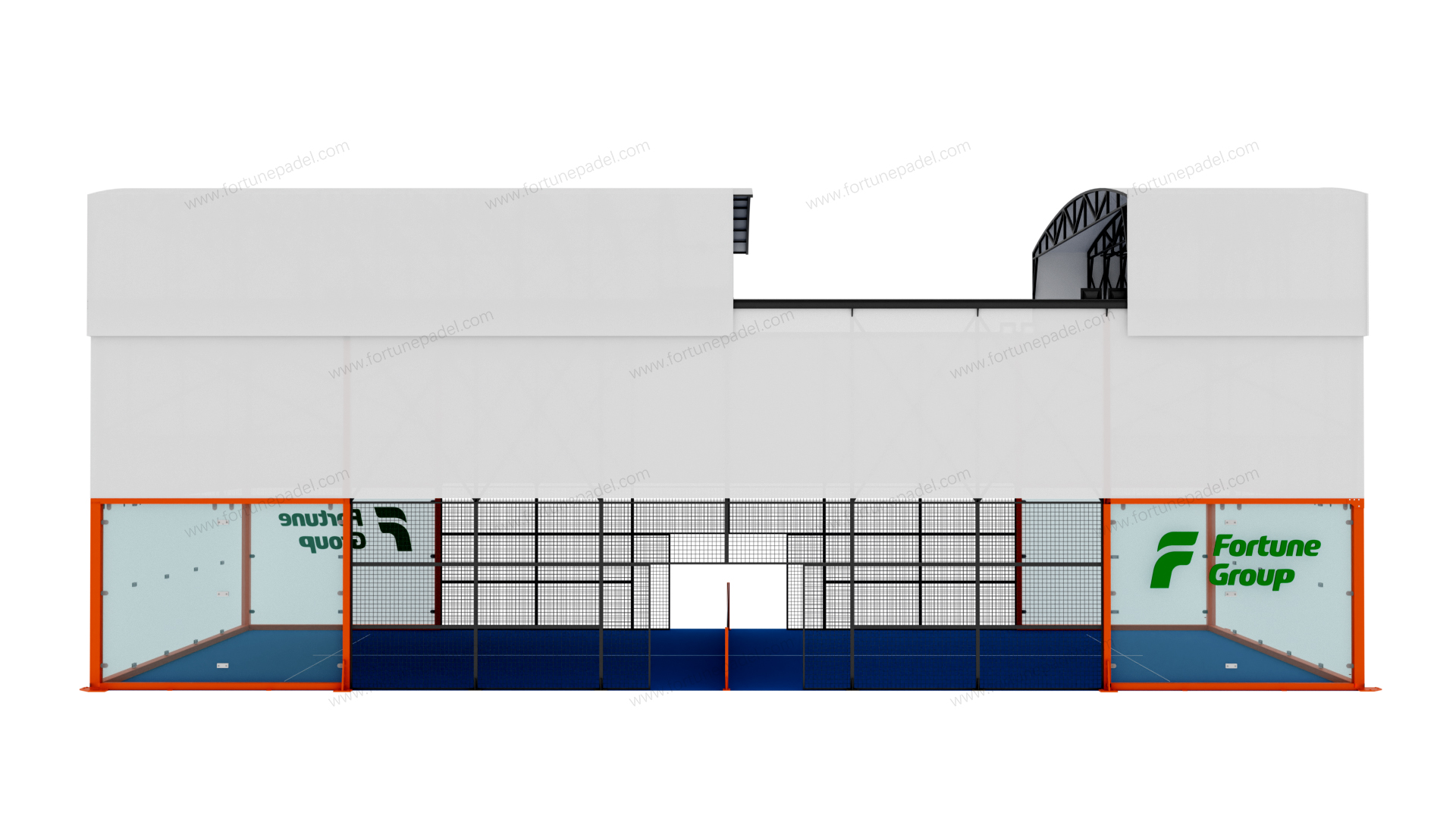

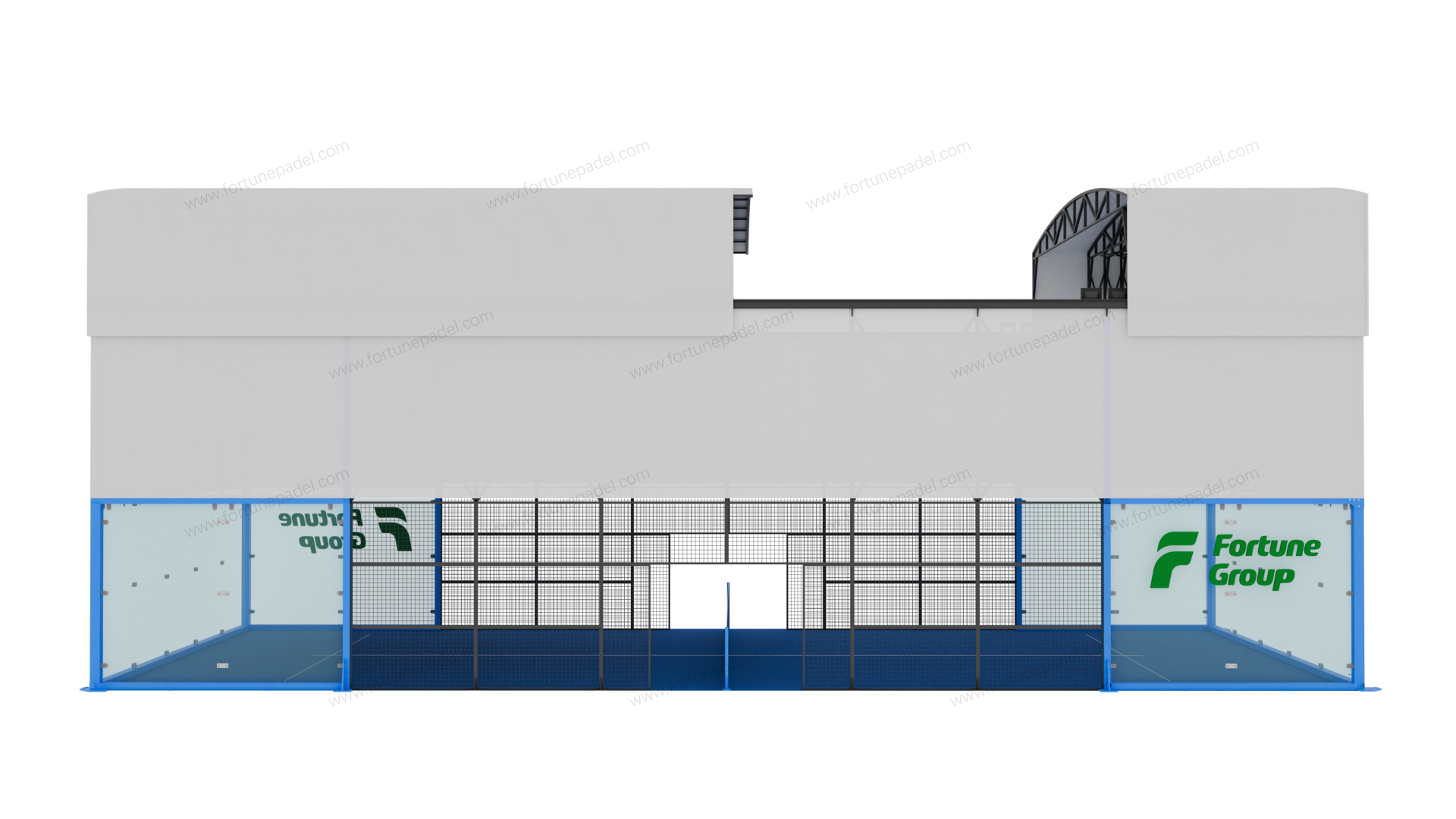

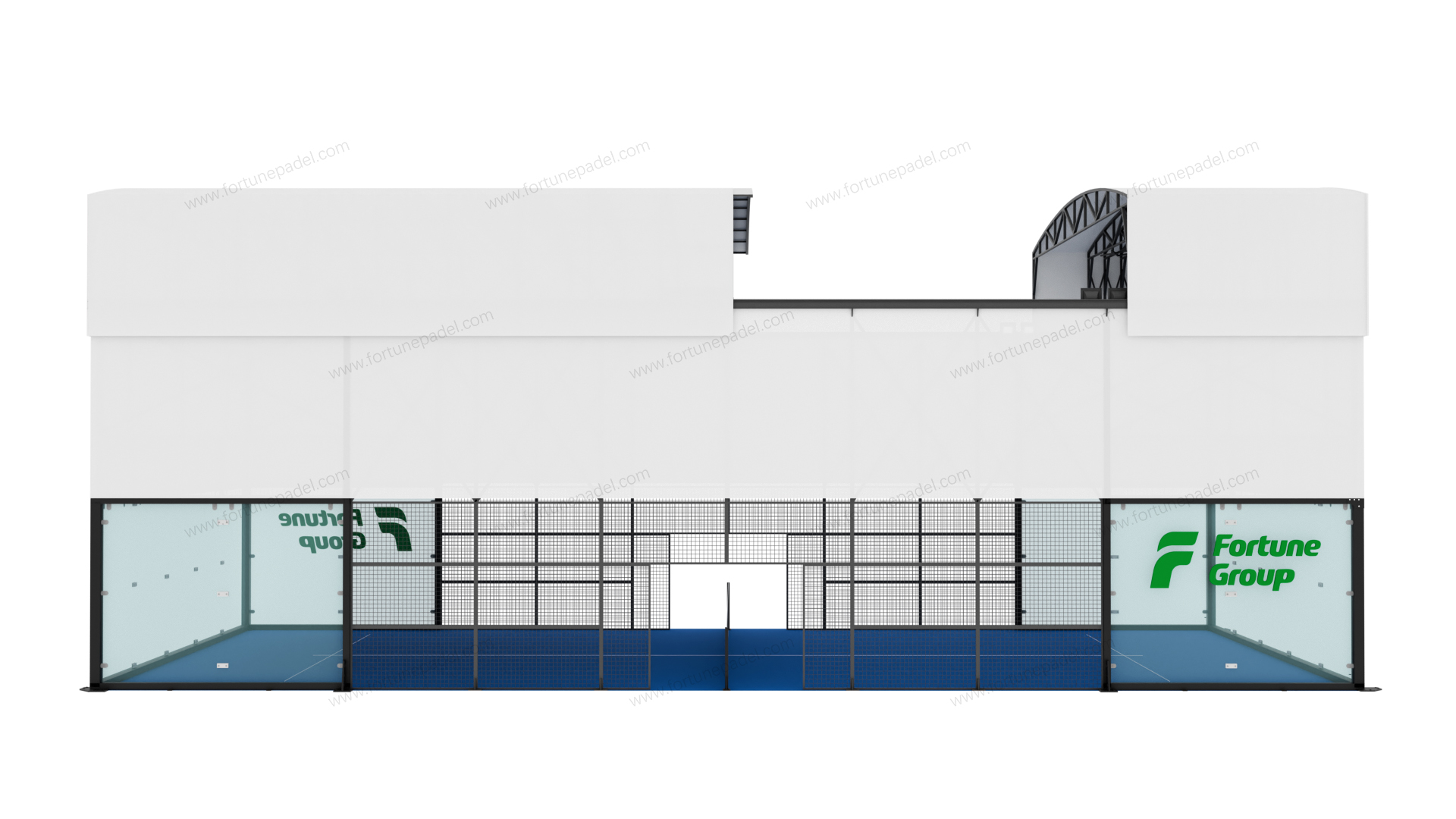

The FX-P05E Flexible Roof Padel Court provides an innovative solution with its UV protection and electric roof design, tailored for long-term outdoor use. The electric roof offers convenience and adaptability, allowing the facility to quickly adjust to varying weather conditions.
Automated Retractable Roof: A one-touch system for swift and effortless opening and closing, adapting seamlessly to varying weather conditions without manual intervention.
UV-Resistant Roof: Constructed with double-layer PVDF-coated fabric, this roof offers robust weather resistance with a peak height of 8.3m and a side height of 7.5m, providing ample coverage and protection.
Efficient LED Lighting: Featuring an IP65 protection rating, eight 200W LED lights not only reduce energy consumption but also maintain a brightness of 300 Lux to enhance visibility during night games.
Robust Steel Framework: Crafted from high-grade Q235 steel, the pillars and grid structure ensure exceptional stability and long-lasting durability.
Impact-Resistant Tempered Glass: Conforming to EN12150-2:2004 standards, the 12mm thick glass is designed to withstand impacts while offering clear sightlines.
High-Performance Artificial Turf: Certified under EN14041:2008, the turf boasts a density of 52,500 stitches per square meter, with KDK monofilament curled grass and optimal quartz sand infill for fiber protection and enhanced playability.
Accurate Middle Net: Measuring 10m in length, with a central height of 0.88m and end heights of 0.92m, and a tolerance of 0.005m, ensuring perfect fairness in competition.
Durable Surface Coating: Utilizing a zinc coating and electrostatic powder coating method, this treatment boosts corrosion resistance and offers a range of customizable color options to suit individual tastes.
The design philosophy of FX-P05E revolves around creating a high-end padel court that can quickly adapt to weather changes while providing a safe and comfortable sports experience.
| ROOF | UV resistant double PVDF-coated with 750g/m2 HEIGHT: Top height for 8.3m, Side height for 7.5m FRAME: Q235 profile with size 10m length *0.8m heigh |
| LED LIGHT | 4 lighting towers with 8pcs LED light 200W/300Lux/IP65 |
| COMPONENTS | Stainless Steel 304 Rubber pad, Bolt Glass fitting, etc |
| PILLAR & MESH | PILLAR: 4 pillars of 100*100*3mm with 6 m high OTHER POST: 12 pillar of 100*50*3mm with 6 m high MESH: 46 pcs mesh 1000*2000mm framed with tube 30*50*3mm, mesh distance: 50*50mm, mesh thickness: 4mm |
| TEMPERED GLASS | Tempered glass with 12mm thickness with standard EN12150-2:2004 18pcs of 1996*3000mm |
| ARTIFICIAL GRASS | BACKING: PP+Net COATING: Latex STANDARD: En14041:2008 FILLER: Quartz sand ∅1.6mm-1.25mm, 10kgs/m², visible fiber 2mm-3mm KDK Monofilament curly grass. HEIGHT: 12mm DENSITY: 52500 stitches/m² GAUGE: 3/16” DTEX: 9000D |
| NET WITH POLE | NET MATERIAL: Synthetic fiber SIZE: 10 meters long and 0.88m high at the center, rising to 0.92 meters at the ends, with a maximum tolerance of 0.005 meters. |
How long does it take to build a Padel court?
Once the foundation work is completed, it usually takes 1 to 2 weeks to install a Padel court, depending on the court type, site readiness, and project complexity.
What are the basic foundation requirements for a Padel court?
The court foundation is crucial. It must be solid, level, and have good drainage. A typical outdoor court requires a concrete base of at least 20–25 cm thick, with a smooth and even surface. Proper groundwork is especially important for outdoor courts to prevent sinking or water accumulation.
Do you provide installation services?
Yes, we offer professional installation guidance. To ensure high-quality construction, we can send experienced engineers to your site to provide: Technical guidance Supervision of the installation process Support for key installation steps and final inspection Please note: Clients are responsible for the engineer’s travel, accommodation, meals, and visa costs. Alternatively, we can recommend a local installation team to assist you. Our goal is to ensure every court project is delivered smoothly and to the highest standard.
How much does it cost to build a Padel court?
The cost of a Padel court varies depending on several factors, including the court type (standard or panoramic), materials, customization needs, site preparation, and location. We recommend contacting us for a personalized quote.
How is a Padel court maintained?
Maintenance is relatively straightforward. Regular tasks include cleaning the artificial turf, removing debris and infill, checking the glass and metal structures, tightening screws, and ensuring proper drainage. We provide a detailed maintenance guide and optional maintenance services.
