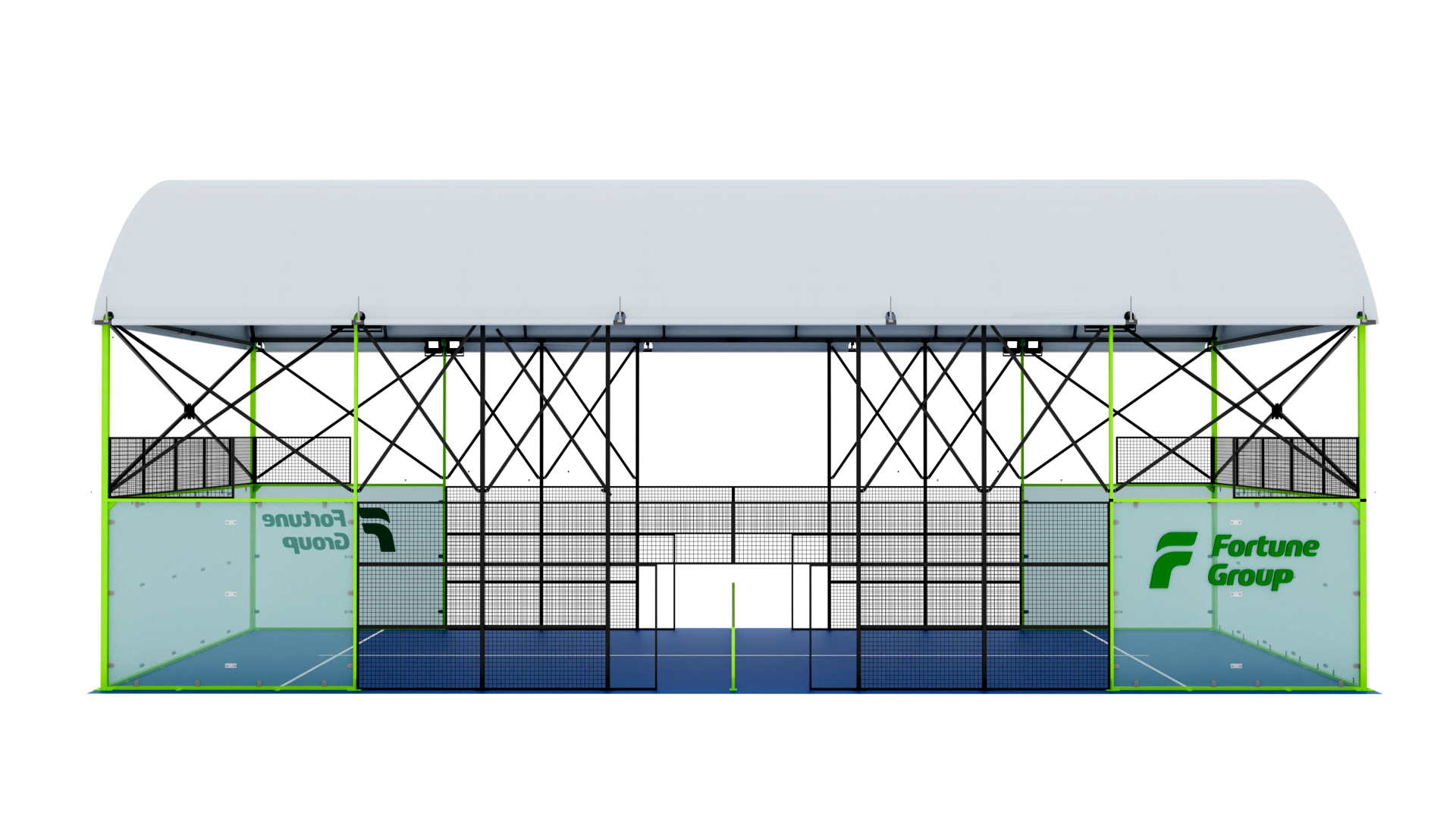

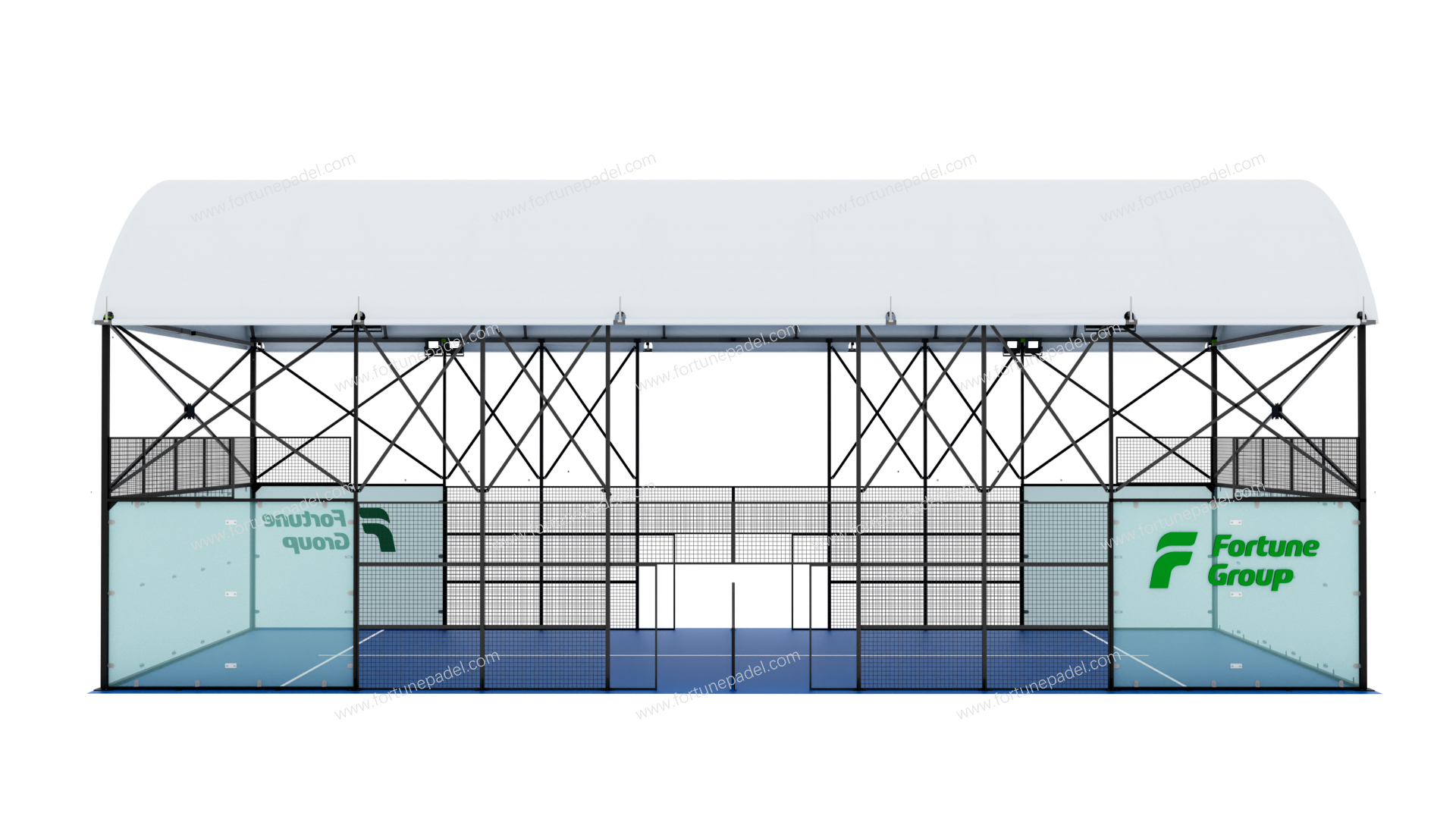

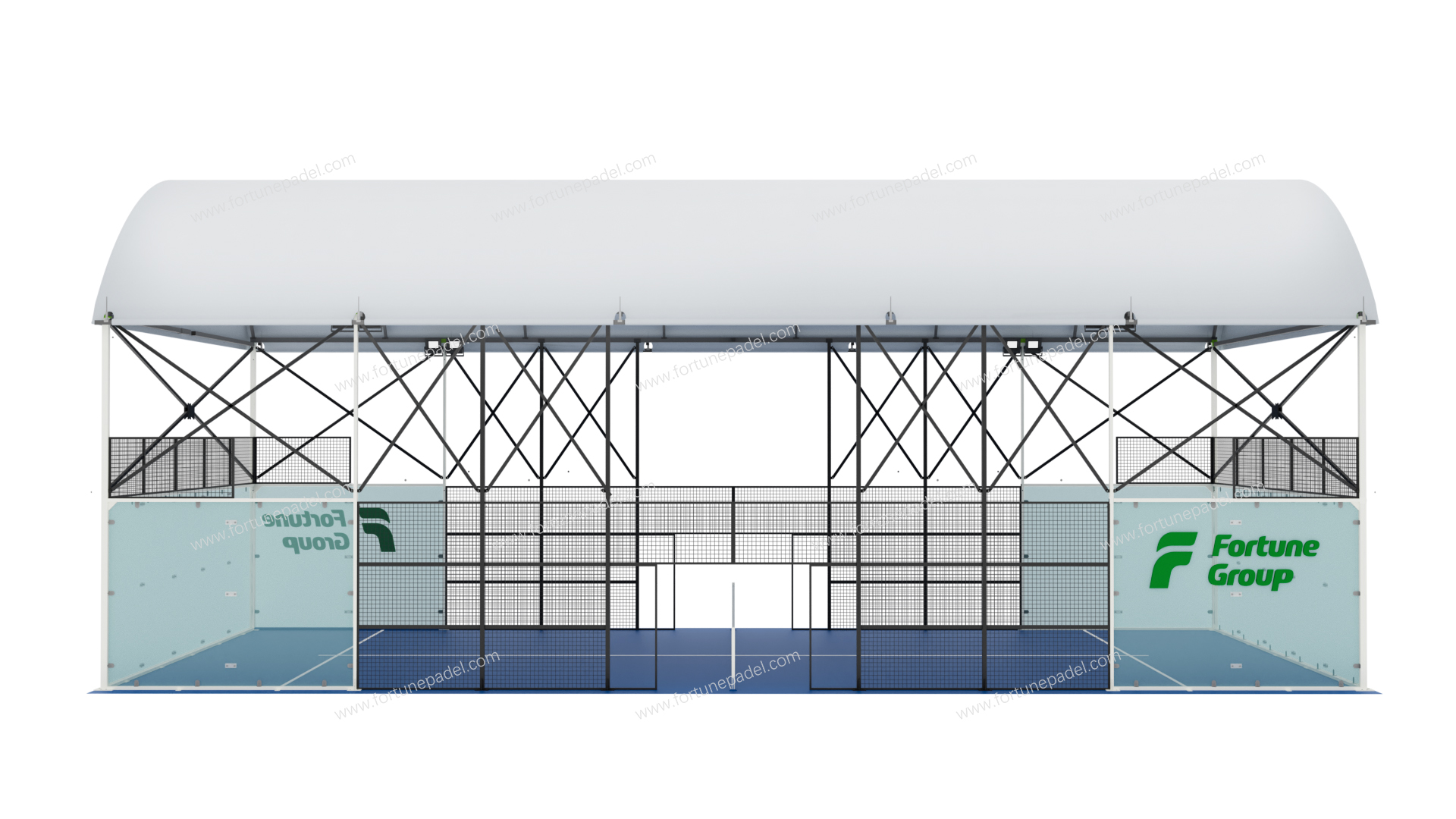

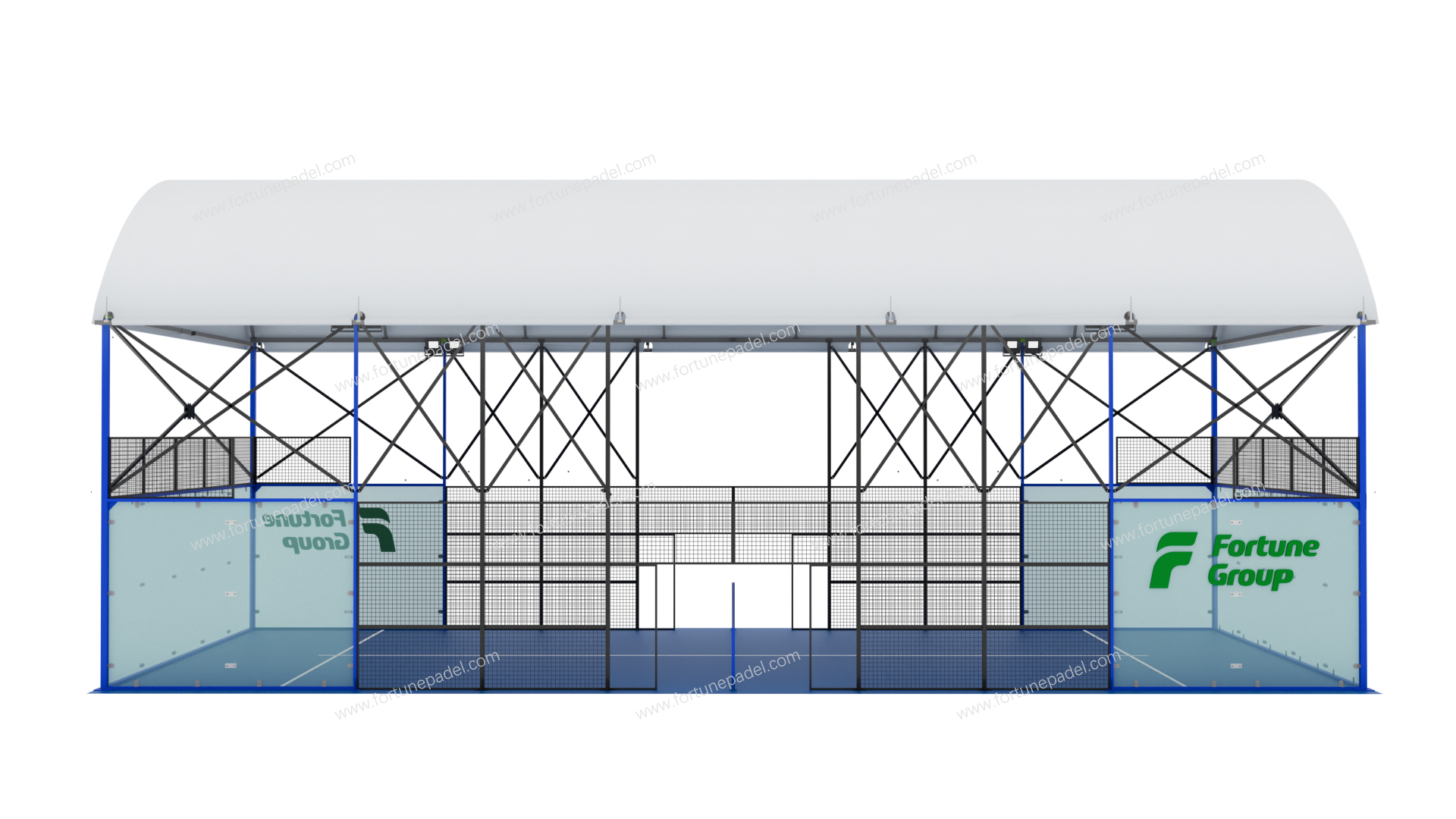

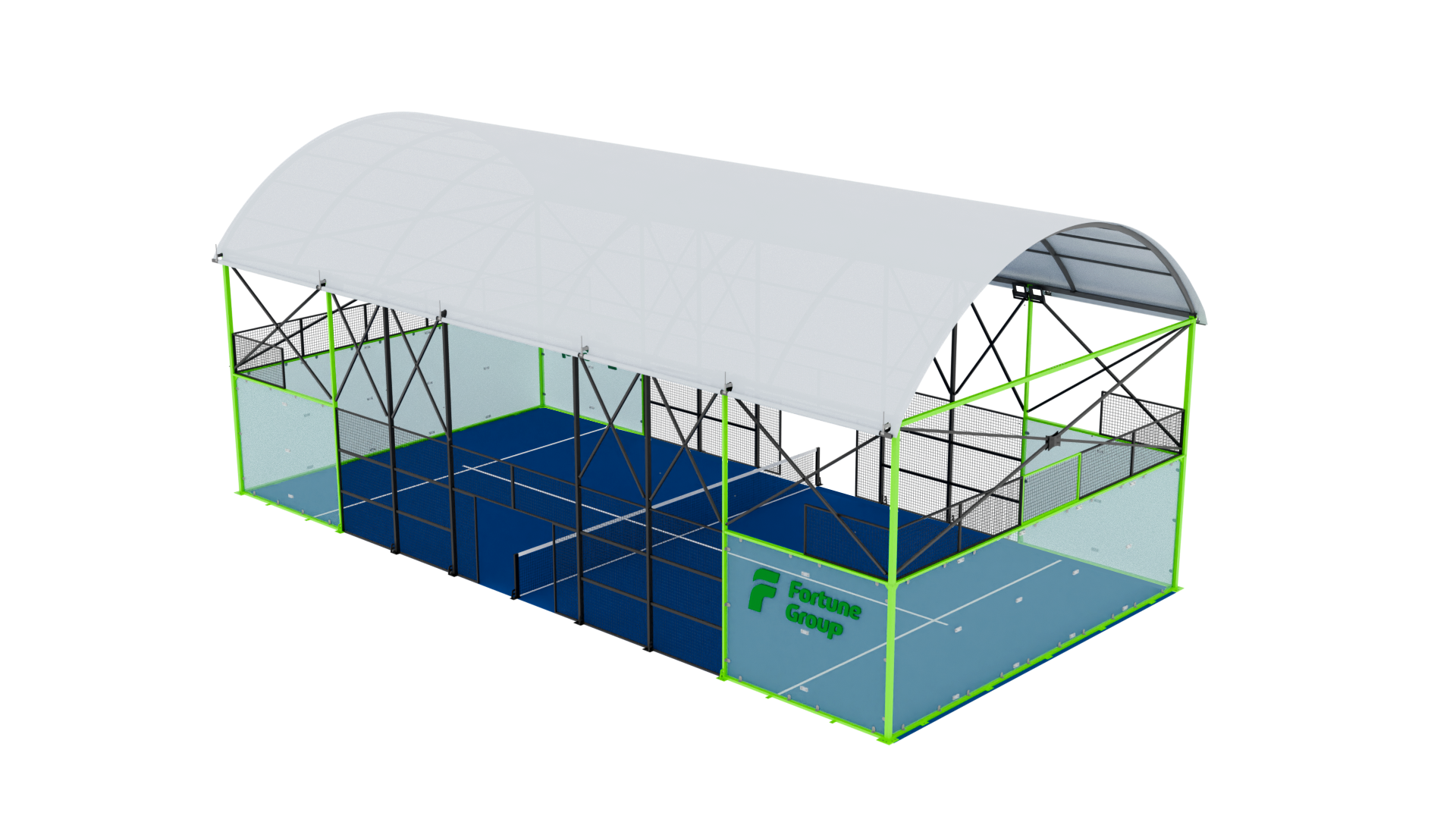

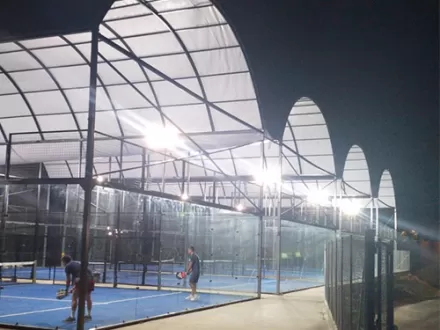

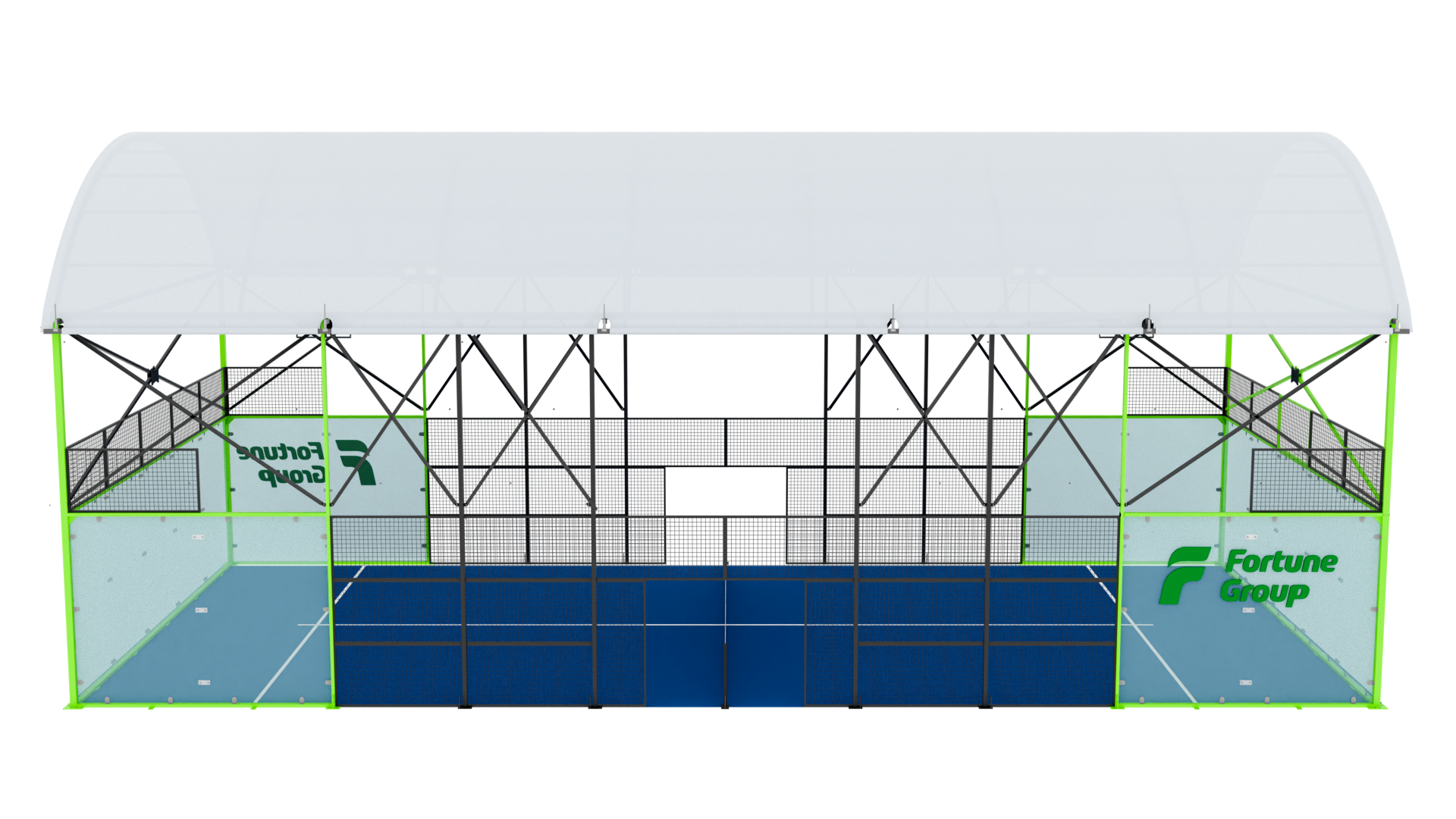

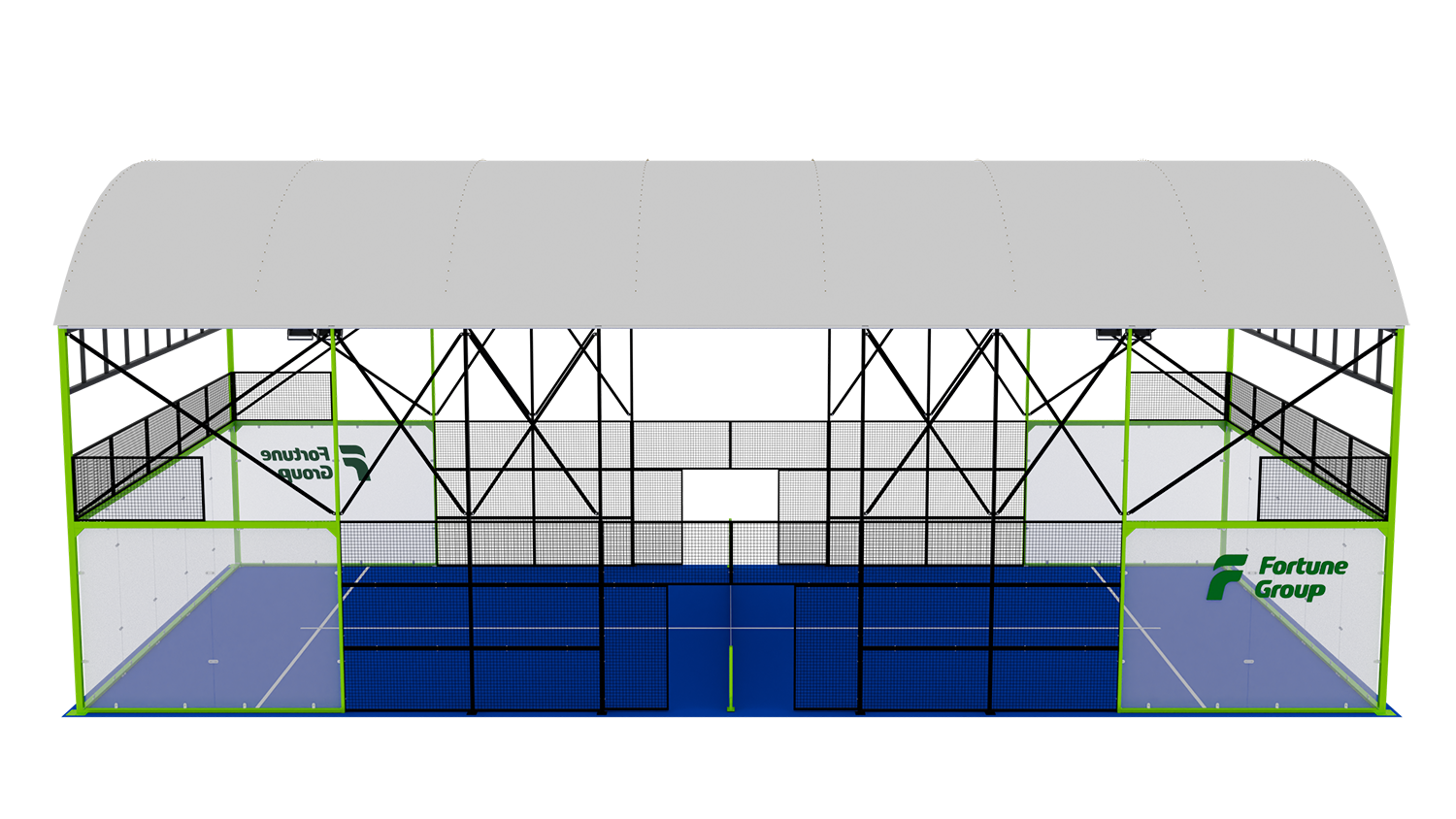

Covered padel courts are ideal for clubs and communities in areas with frequent rain or strong sun. With a sturdy steel frame and UV-resistant PVDF-coated roof, the FX-P05 provides stable playing conditions all year round. The professional covered padel court is designed for all-weather use, offering a stable competition environment. It can resist all weather conditions. Fortune can provide customers with professional software for wind resistance level testing if you need it.
Durable All-Weather Canopy: Our canopy is reinforced with a double-layer PVDF coating for maximum durability. It stands tall at 8.8m with side clearance of 6m, offering both spacious shelter and outstanding protection against the elements.
Efficient LED Illumination: Fitted with IP65-rated energy-efficient LED lighting, our system consists of eight 200W bulbs. These not only conserve energy but also provide a bright 300 Lux, ensuring clear visibility for evening events.
Robust Steel Framework: Constructed from high-strength Q235 steel, our structure features sturdy pillars and a grid system. This design guarantees longevity and solid support for the canopy overhead.
Standards-Compliant Tempered Glass: Our 12mm thick glass meets EN12150-2:2004 standards, combining impact resistance with clear visibility, to maintain safety without compromising on quality.
Certified Quality Artificial Turf: The KDK monofilament curled grass is certified to EN14041:2008 standards, with a stitch density of 52,500/m². Infused with the perfect amount of quartz sand, it ensures fiber protection and enhances flexibility for an outstanding playing surface.
Netting of Exact Dimensions: Measuring an exact 10m in length and 0.88m in height at the center, our netting extends to 0.92m at the ends with a mere 0.005m tolerance. This precision guarantees fairness in every game.
Superior Surface Treatment: We utilize a dual approach of zinc coating and electrostatic powder coating to fortify against corrosion. This treatment not only extends the life of our products but also offers a selection of custom colors to suit varied aesthetic preferences.
As a leading covered padel court manufacturer, FortunePadel specializes in designing and producing premium courts tailored to each client’s needs. From structural safety to long-lasting PVDF-coated roofing, we offer customized solutions that ensure performance, durability, and visual appeal. Whether for clubs, schools, or private venues, our expert team supports you from design to installation — helping you build a court that stands out.

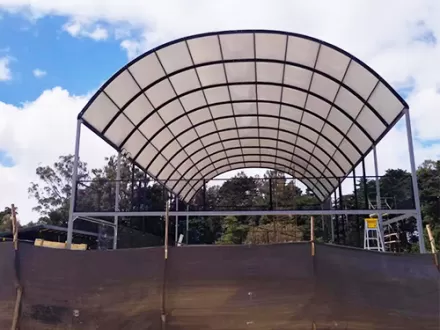

The roof of the covered padel court is reinforced with high-quality PVDF coating. The benefits of this type of roof are as follows:
● Ensures the roof remains dry in wet or rainy conditions.
● Suitable for long-term outdoor use, providing protection even in bad weather.
● Resistant to external loads such as wind pressure and snow, suitable for a variety of climate conditions.
● Extends the service life of the roof and reduces the cost of frequent replacement.
● Prevents the shed from aging and fading, maintaining the beauty and functionality of the structure.
● Provides a shading effect to reduce damage to the site or equipment caused by direct sunlight.
Feature | FX-P05 | Standard Court |
---|---|---|
Weather Protection | Full coverage | None |
Frame Material | Galvanized Steel | Standard Steel |
Roofing | UV-resistant polycarbonate | No roof |
Year-round Usability | Yes | Limited by weather |
ROOF | Double PVDF-coated with 750g/m² HEIGHT: Top height for 8.8m, Side height for 6m FRAME: Q235 steel square tube 100*50mm+30*50mm |
LED LIGHT | 4 lighting towers with 8pcs LED light 200W/300Lux/IP65 |
COMPONENTS | Stainless Steel 304 Rubber pad, Bolt Glass fitting, etc |
PILLAR & MESH | PILLAR: 4 pillars of 100*100*3mm with 6 m high OTHER POST: 8 pillar of 100*50*3mm with 6 m high,4 pillar of 100*50*3mm with 3 m high MESH: 46 pcs mesh 1000*2000mm framed with tube 30*50*3mm, mesh distance: 50*50mm, mesh thickness: 4mm |
TEMPERED GLASS | Tempered glass with 12mm thickness with standard EN12150-2:2004 18pcs of 1996*3000mm |
ARTIFICIAL GRASS | KDK Monofilament curly grass. HEIGHT: 12mm DENSITY: 52500stitches/m2 GAUGE: 3/16” DTEX: 9000D BACKING: PP+Net COATING: Latex STANDARD: En14041:2008 FILLER: Quartz sand ∅1.6mm-1.25mm, 10kgs/m², visible fiber 2mm-3mm |
NET WITH POLE | NET MATERIAL: Synthetic fiber SIZE: 10 meters long and 0.88m high at the center, rising to 0.92 meters at the ends, with a maximum tolerance of 0.005 meters. |

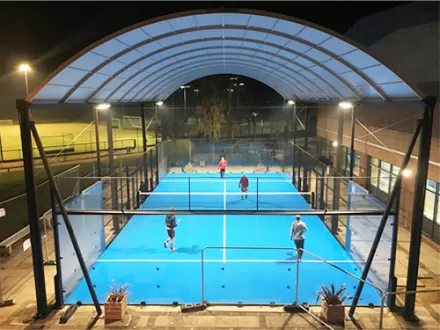

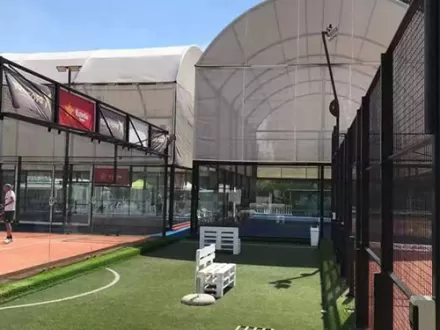

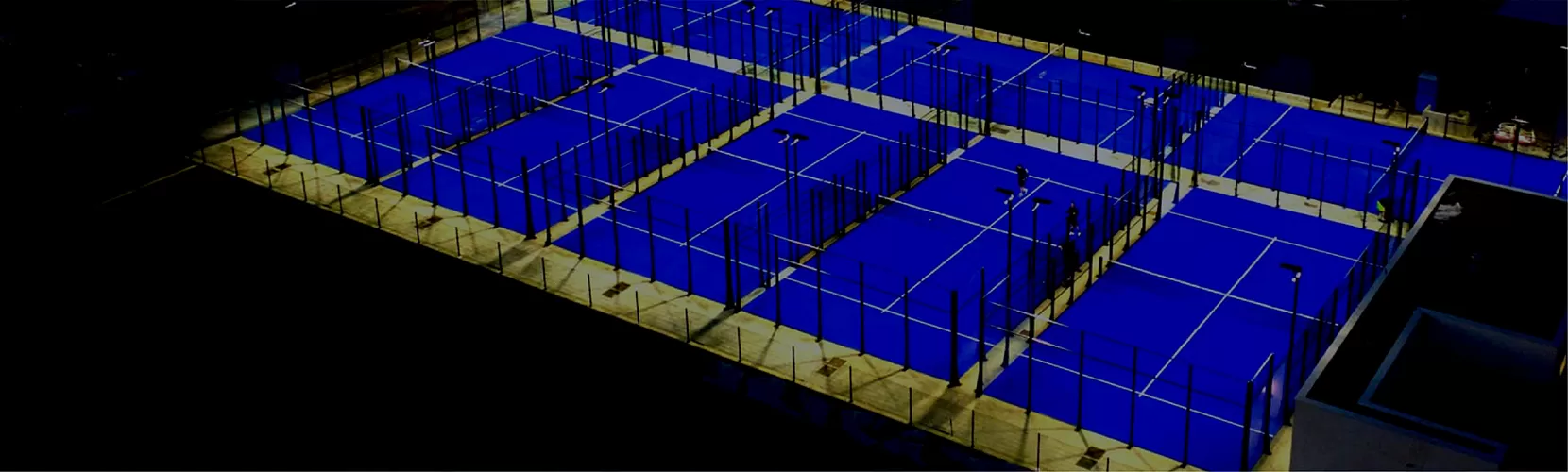

Fortune provides customized padle tennis court solutions to clients around the world. We offer a wide range of padel court models that can be customized to suit the specific needs of our clients. Explore our case studies to learn how we help a variety of clients achieve their goals.
Discover the success stories and enthusiastic endorsements from our esteemed partners. They share their firsthand experiences of how our innovative Padel Tennis solutions have not only reshaped the way they do business but also significantly boosted their market presence and customer satisfaction.
How long does it take to build a Padel court?
Once the foundation work is completed, it usually takes 1 to 2 weeks to install a Padel court, depending on the court type, site readiness, and project complexity.
What are the basic foundation requirements for a Padel court?
The court foundation is crucial. It must be solid, level, and have good drainage. A typical outdoor court requires a concrete base of at least 20–25 cm thick, with a smooth and even surface. Proper groundwork is especially important for outdoor courts to prevent sinking or water accumulation.
Do you provide installation services?
Yes, we offer professional installation guidance. To ensure high-quality construction, we can send experienced engineers to your site to provide: Technical guidance Supervision of the installation process Support for key installation steps and final inspection Please note: Clients are responsible for the engineer’s travel, accommodation, meals, and visa costs. Alternatively, we can recommend a local installation team to assist you. Our goal is to ensure every court project is delivered smoothly and to the highest standard.
How much does it cost to build a Padel court?
The cost of a Padel court varies depending on several factors, including the court type (standard or panoramic), materials, customization needs, site preparation, and location. We recommend contacting us for a personalized quote.
How is a Padel court maintained?
Maintenance is relatively straightforward. Regular tasks include cleaning the artificial turf, removing debris and infill, checking the glass and metal structures, tightening screws, and ensuring proper drainage. We provide a detailed maintenance guide and optional maintenance services.
